Description
XQ7410 large diameter fiber cleaver is mainly used for cleaving large diameter fibers and optical combiners, etc. Users can set simply the fiber tension and the blade advance before cleaving, which can cleave different types of optical fiber and optical combiners easily. The device not only has the characteristics of cleaving stability required for production, but also debugging flexibility required for research and development.

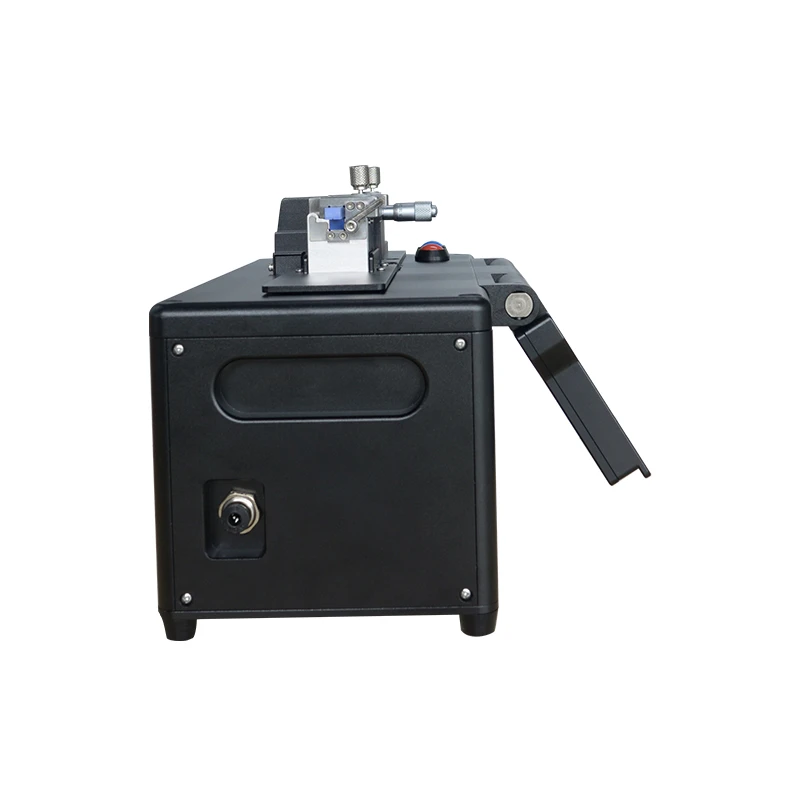

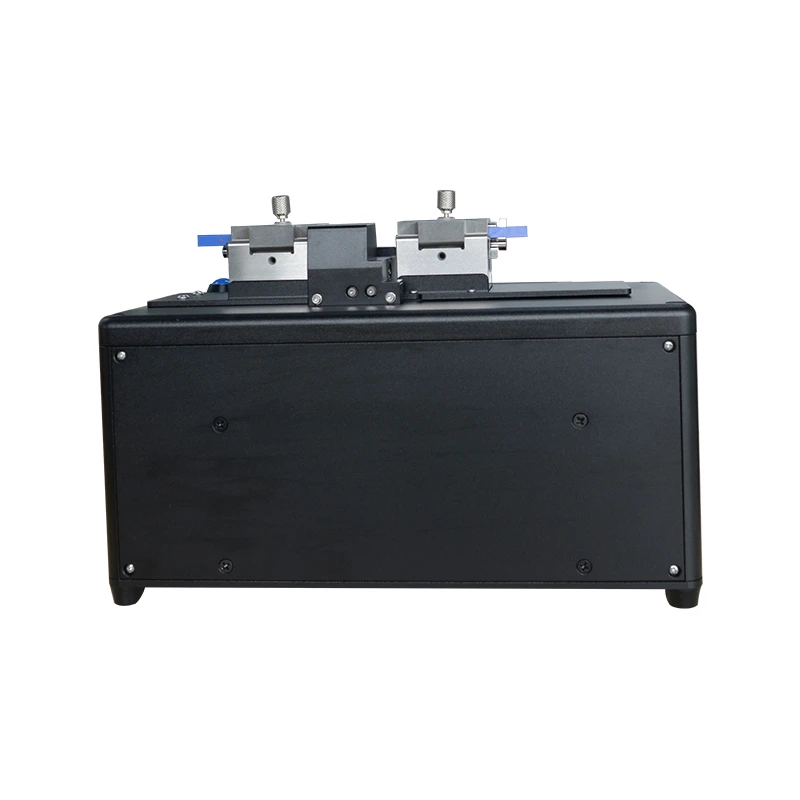

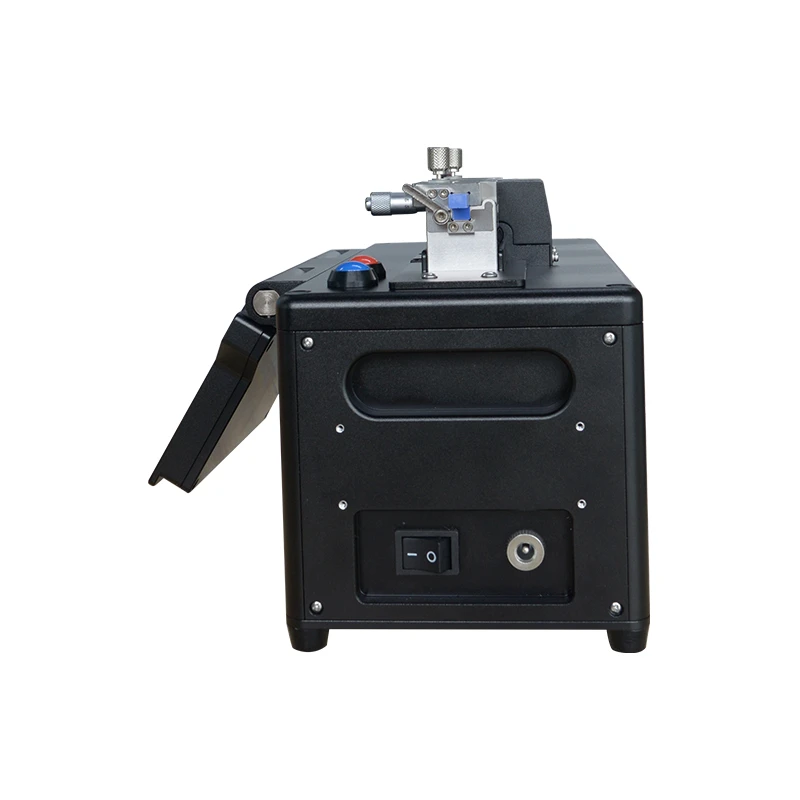

OSCOM TECHNOLOGY - Large Diameter Fiber Cleaver - XQ7410
Specifications
| Supported Fiber Cladding: | 80 – 1500 um |
|---|---|
| Cleave Type: | Flat cleave/ Angled cleave |
| Residual Cladding Length: | 2-50mm |
| Display Screen: | Touch control |
| Cladding Cleave Size: | 80-1500μm |
| Coating Size: | 80-2500μm |
| Fiber Type: | SM/MM/GDF/YDF/PCF/Optical combiner/Fiber bundle/Glass tube |
| Cleave Method: | Tension and scribe |
| Tension Range: | Max: 5000gf |
| Tension Accuracy: | 3gf |
| Blade Steps: | 1.3μm |
| Blade Material: | Diamond |
| Cleave Angle Accuracy: | Flat cleave: Passive fiber ≤0.3°/Active fiber ≤0.5° (Angled cleave: ≤1°) |
| Cleave Angle Range: | 0-20° |
| Clamping Method: | Magnetism |
| Operating Power Supply: | 12V/DC, 5A |
| Operating Environment: | Temperature: 0-40℃/Humidity: 5-95%RH |
| Dimensions (LxWxH): | 240x140x150mm/286x147x163mm |
| Weight: | 3.8Kg/5.0Kg |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features

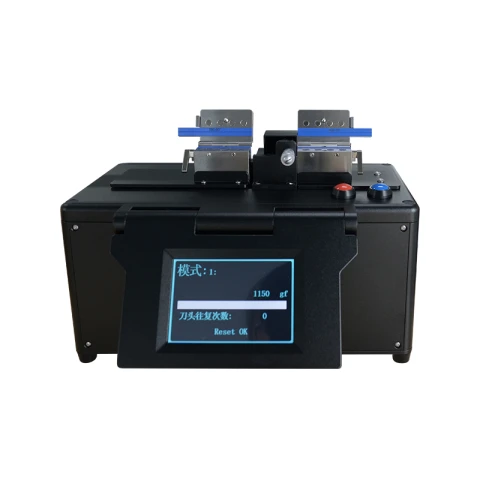

- Man-machine interaction with touch screen, flexible and convenient.
- Open cleaving parameters settings, make it easy to produce and engage in research and development.
- Equipped with all kinds of fiber holders, suitable for all types of optical fibers.
- Diamond blade.
Applications
- Telecommunications: The XQ7410 Large Diameter Fiber Cleaver is ideal for cleaving large diameter fibers used in telecommunications infrastructure, ensuring precise and stable cuts for optimal signal transmission.
- Research and Development: With its debugging flexibility and open cleaving parameter settings, this device is perfect for research and development applications, allowing users to experiment with different fiber types and configurations.
- Medical Fiber Applications: The XQ7410V model, with vacuum adsorption and medical fiber cleaving capabilities, is suitable for medical applications where precision and cleanliness are critical.
- Optical Combiners and Fiber Bundles: The cleaver's ability to handle various optical fibers and combiners makes it an excellent tool for creating and maintaining complex fiber optic assemblies.
- Industrial Fiber Optics: The device's robust design and diamond blade make it suitable for industrial applications requiring reliable and consistent fiber cleaving.
- Custom Fiber Solutions: With options for extension and customization, the XQ7410S model can be tailored to meet specific industrial or experimental needs, accommodating a wide range of fiber sizes and types.
Frequently Asked Questions
What is the XQ7410 large diameter fiber cleaver used for?
The XQ7410 large diameter fiber cleaver is mainly used to cut large diameter fibers and produce optical combiners.
What are the features of the XQ7410 large diameter fiber cleaver?
The XQ7410 large diameter fiber cleaver features a touch screen for man-machine interaction, flexible and convenient operation. It also has open cutting parameter settings for easy production and research and development. It is equipped with holders suitable for all types of optical fibers and has a diamond blade.
What is the tension range of the XQ7410 large diameter fiber cleaver?
The XQ7410 large diameter fiber cleaver has a maximum tension range of 5000gf.
What is the cleaving angle accuracy of the XQ7410 large diameter fiber cleaver?
The cleaving angle accuracy of the XQ7410 large diameter fiber cleaver is ±0.3° for passive optical fiber and ±0.5° for active optical fiber.
What are the dimensions and weight of the XQ7410 large diameter fiber cleaver?
The XQ7410 large diameter fiber cleaver has dimensions of 240x140x150mm and weighs 3.8KG.
Got more questions? Use the inquiry form to ask the supplier directly.
