Description

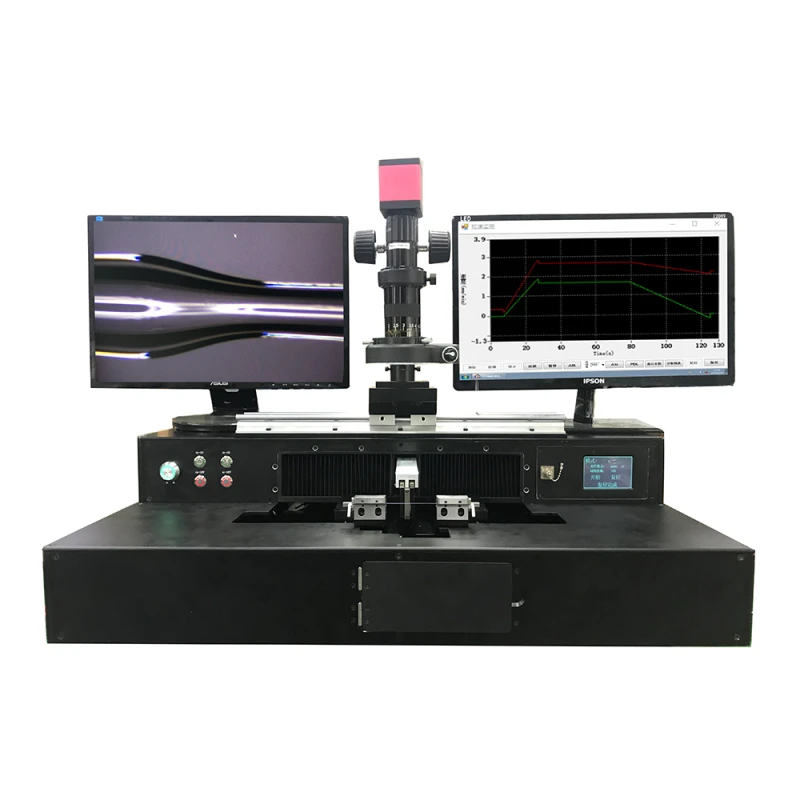

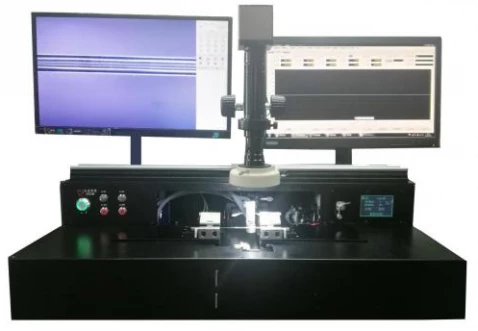

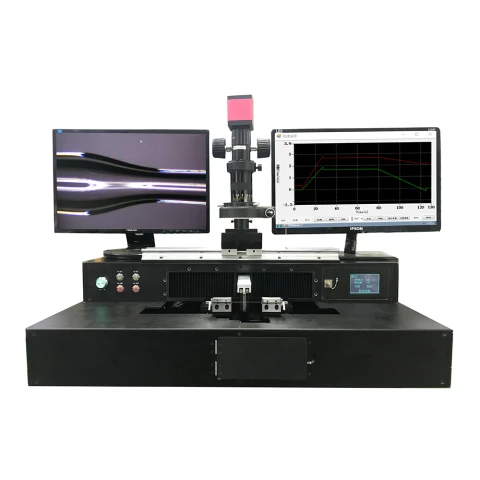

XQ7180 is used mainly for manufacturing signal pump optical fiber combiners and special cone-shaped fiber rods including higher power 3x1, 4x1, (6+1)x1, 7x1, etc. Its main feature is lengthening the tapering lead screw movement length (200-500mm), it is designed with unilateral/reverse/same direction/conflating tapering mode of fiber holders which can make uniform and accelerated/decelerated movement, equipped with special fiber holders and water-cooled heaters, high-definition measurement CCD microscope, large diameter on-line cleaver and on-line tension testing function, can perfectly achieve the production of a variety of specifications of optical combiners. XQ7180 is stable, reliable, easy to use and can increase or decrease functions according to the customers’ needs.
OSCOM TECHNOLOGY - Multi-mode Fiber Taper - XQ7180
Specifications

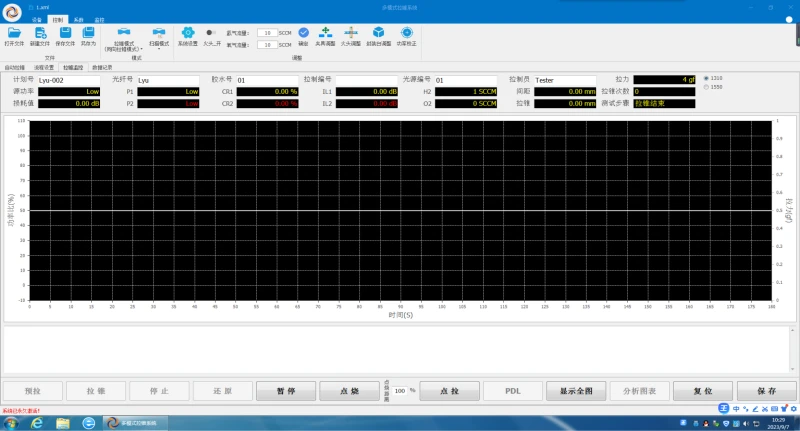

| Parameters: | XQ7181/XQ7182 |
|---|---|
| Illustrates: | With packing table/With cleave on line |
| Tapering Spacing: | 18-200/18-500mm |
| Heater Scan Width: | ±50/±100mm |
| Unilateral Tapering Speed: | 0-1000μm/s |
| Unilateral Fiber Holder Movement Resolution: | 0.02μm/step |
| Heater Left & Right Movement Resolution: | 0.5μm/step |
| Packaging Stage Movement Resolution: | ＜1μm/step |
| Packaging Stage Heating Temperature: | 30-300℃ |
| On-line Cleave: | Flat cleave |
| Cleave Range: | 80-1500μm |
| Cleave Angle: | ±0.5° |
| Cleave Method: | Progressive cleaving |
| Tension Range: | Max: 5000gf |
| Hydrogen Flow Range: | 0-300/0-500/0-1000sccm |
| Oxygen Flow Range: | 0-100/0-300/0-500sccm |
| Tension Monitoring: | Real-time display |
| Tapering Type: | Unilateral/Same/Reverse direction/Conflating tapering |
| Scan Pattern: | Fixed |
| Fiber Holder Acceleration Range: | 0-300mm/min^2 |
| Detector Type: | InGaAs/Si |
| Wavelength Range: | 800-1700/400-1100nm |
| Optical Power Detection Dynamic Range: | -60-+3dBm |
| Optical Power Measurement Resolution: | 0.01dB |
| Operating Environment: | Temperature: 23±3℃/Humidity: 50-70%RH |
| Operating Power Supply: | AC100-240V/50-60Hz/5A |
| Dimensions (LxWxH): | 800x550x230/1100x550x230mm |
| Weight: | 60Kg |
Download Data Sheet
Features
- Taper lead screw route lengthened (200-500mm), can meet the needs of longer taper waist.
- Many tapering mode: unilateral/reverse/same direction/conflating taper mode of holder.
- Special fiber holder and hydrogen and oxygen mixing generator.
- Can be customized high-definition measurement CCD microscopes.
- With online tension test function.
Applications

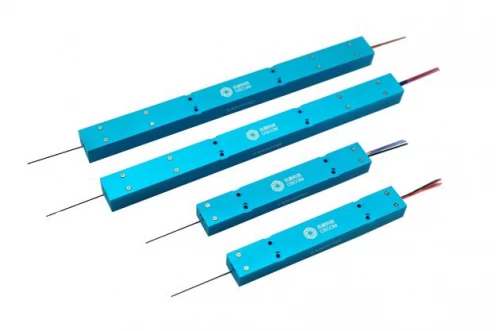

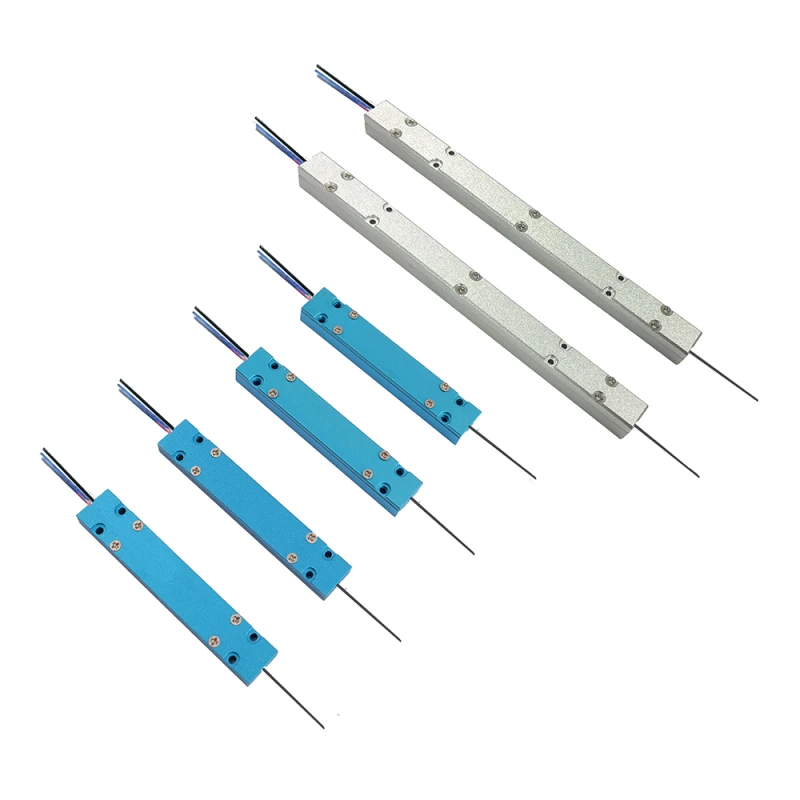

- Signal Pump Optical Fiber Combiners: The XQ7180 is primarily used in manufacturing signal pump optical fiber combiners, including higher power configurations like 3x1, 4x1, (6+1)x1, and 7x1.
- Special Cone-shaped Fiber Rods: It is designed to produce special cone-shaped fiber rods with precision.
- Tapering Modes: Offers various tapering modes including unilateral, reverse, same direction, and conflating tapering modes for fiber holders.
- Customization: The system can be customized according to customer needs, including high-definition measurement CCD microscopes.
- Online Tension Testing: Equipped with an online tension testing function to ensure the quality of the optical combiners.
- Water-cooled Heaters: Includes special fiber holders and water-cooled heaters to maintain optimal working conditions.
- High-definition Measurement: Features a high-definition measurement CCD microscope for precise measurements.
- Large Diameter On-line Cleaver: Comes with a large diameter on-line cleaver for efficient cleaving.

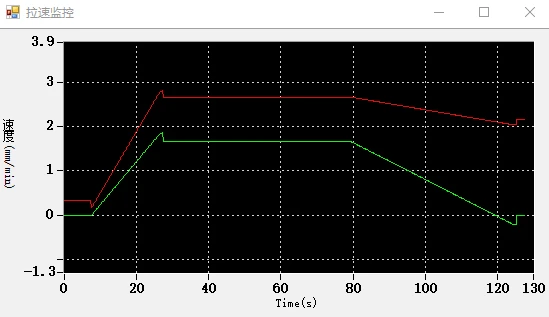

- Real-time Tension Monitoring: Provides real-time display of tension monitoring for accurate tension control.
- Optical Power Detection: Includes a 1-channel optical power detector with customizable options for specific applications.
Frequently Asked Questions
What is the main purpose of the XQ7180 Multi-mode Fiber Taper machine?
The XQ7180 is mainly used to make higher power signal pump optical fiber combination devices and special cone fiber rods.
What is the maximum length of the tapering screw stroke?
The tapering screw stroke can be lengthened from 200mm to 500mm.
What modes does the holder of the XQ7180 have?
The holder has unilateral, reverse, and same direction tapering modes.
What additional features does the XQ7180 have?
The XQ7180 is equipped with special optical fiber clamps, water-cooled heaters, high-definition measurement CCD microscope, large diameter on-line cleaver, and on-line tension testing function.
Is the XQ7180 customizable according to customer needs?
Yes, the XQ7180 can increase or decrease functions according to the customer's needs.
