Description

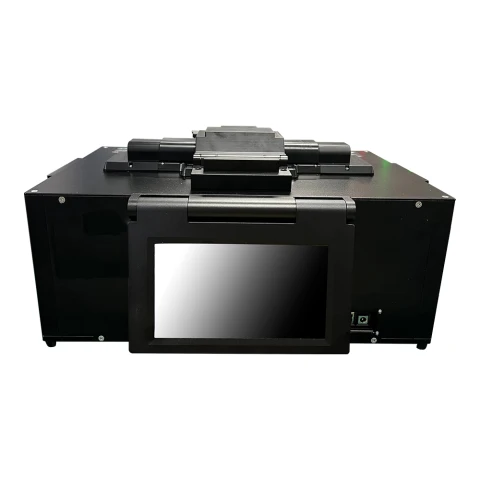

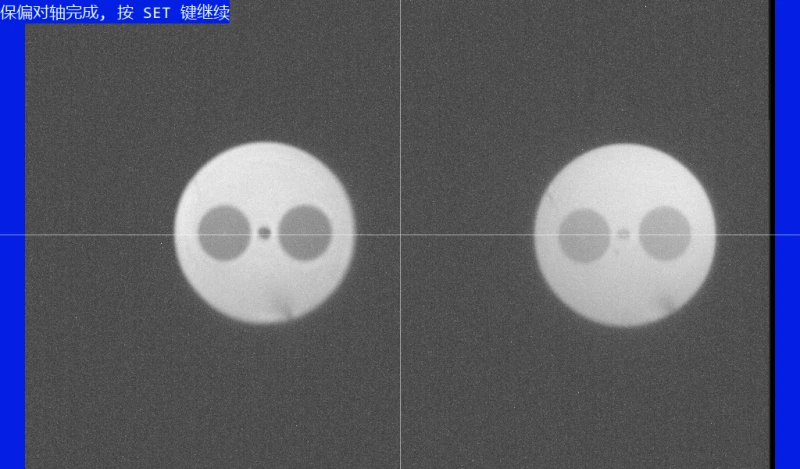

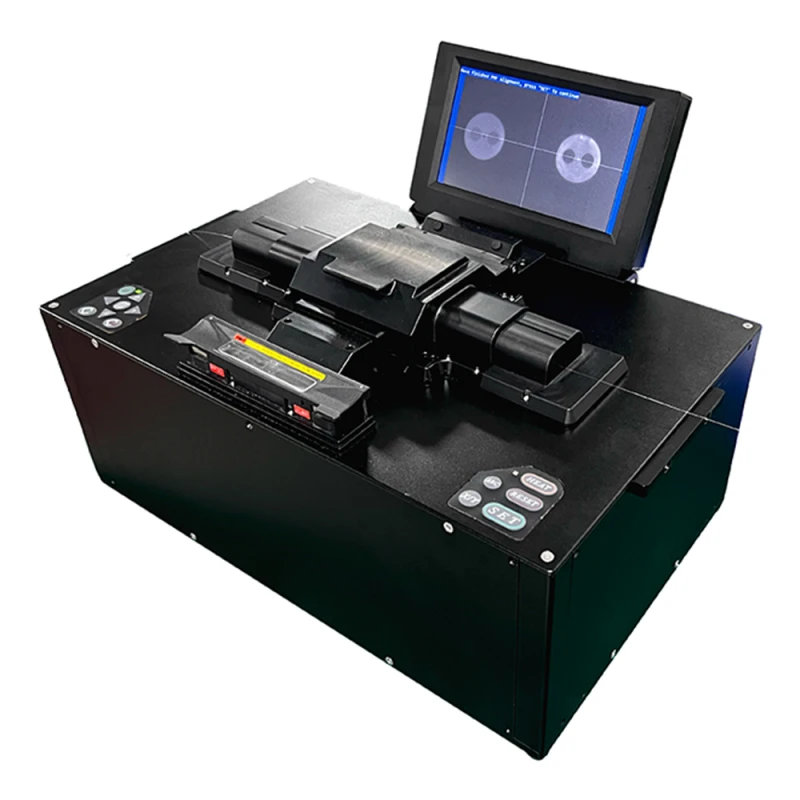

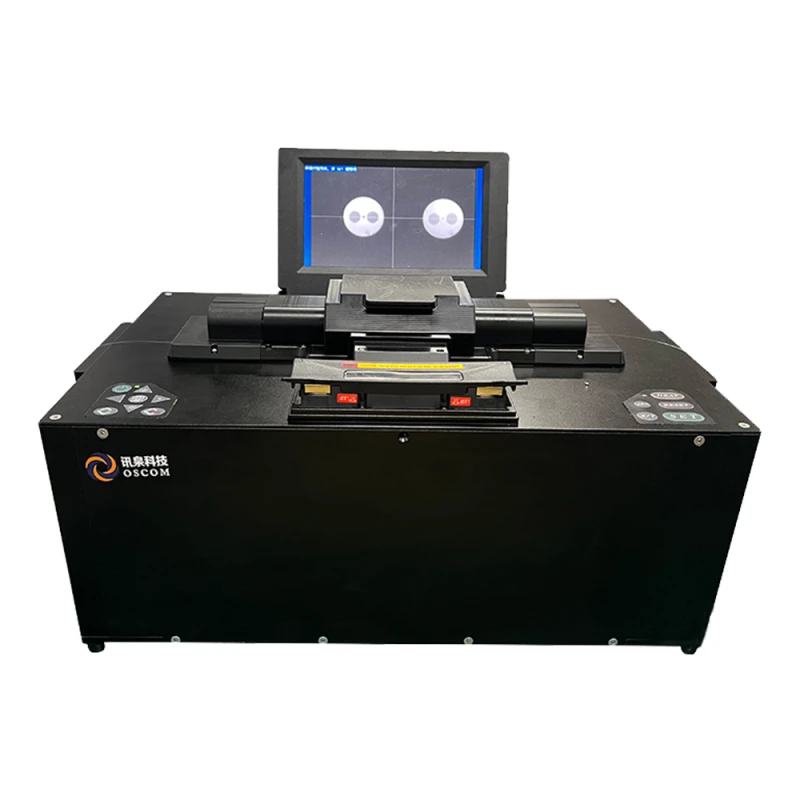

XQ7260P2 is a two electrodes polarization-maintaining fiber splicer which is designed independently by OSCOM Technology. It’s heat source is an electric arc. It can splice quartz fiber, polarization-maintaining fiber, large core fiber. The XQ7260P2 model has optical fiber end image observation, which can more easily observe the fiber cleaving quality and the axial alignment of the polarization-maintaining fiber. At the same time, different specifications of optical fiber holders can be replaced to meet the splicing of fiber with different core diameters.

OSCOM TECHNOLOGY - Two Electrodes Polarization-Maintaining Fiber Splicer - XQ7260P2

Visit the Shenzhen Oscom Technology Co., Ltd Store

Specifications

Parameters: XQ7260P2
Application Of Optical Fiber: Single mode/Multi-mode/Polarization-maintaining fiber
Left/Right Holder Motion Length: 0-3mm
Acceptable Size (Coating): ＜1200μm (Customize according to user needs)
Acceptable Size (Cladding): ≤500μm (Customize according to user needs)
Acceptable Size (PM Cladding): 80-200μm (Customization)
Splicing Time: 15s (Typical)
Optical Fiber Splicing Loss: Ordinary fibers ≤0.03dB, PM fibers ≤0.05dB
Length Of Heating Table: ≤60mm
Temperature Of Heating Table: ≤240° (Adjustable)
Splicing Mode: Manual splicing/Automatic splicing
Display Size: 7.0 inch high resolution color LCD display
Optical Fiber Image Magnification: 7.45 times
CCD Field Of View: 644x483 (Customize according to user needs)
Alignment Mode: Cladding alignment
Polarization-maintaining Fiber Imaging: Left/Right end face imaging
Polarization-maintaining Fiber Axis Mode: 0°/45°/90°
Extinction Ratio: -30dB
Splicing Procedure: Max 100 edit parameters
Working Environment: Temperature: 0-40℃/Humidity: 5-95%RH
Power Supply: External 12V power adapter
Dimensions (LxWxH): 353x273x209mm
Weight: 11.1Kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low splicing loss.
  • High splicing quality.
  • Artificial intelligence touch screen.
  • Visual fiber end face imaging system.

Applications

  • Industrial Lasers
  • Optical Fiber Communication
  • Optical Fiber Sensing
  • Biomedicine
  • Laser Radar
  • Military Industry

Frequently Asked Questions

What is the XQ7260P2?
The XQ7260P2 is a two-electrodes polarization-maintaining fiber splicer designed by OSCOM Technology. It uses an electric arc as its heat source and can splice various types of fibers.
What types of fibers can the XQ7260P2 splice?
The XQ7260P2 can splice single-mode, multi-mode, and polarization-maintaining fibers.
What is the typical splicing time for the XQ7260P2 fiber splicer?
The typical splicing time for the XQ7260P2 fiber splicer is 15 seconds.
What is the optical fiber splicing loss for the XQ7260P2?
The optical fiber splicing loss is ≤0.03 dB for ordinary fibers and ≤0.05 dB for polarization-maintaining fibers.
What display features does the XQ7260P2 fiber splicer have?
The XQ7260P2 fiber splicer has a 7.0 inch high-resolution color LCD display with an optical fiber image magnification of 7.45 times.
What are the environmental operating conditions for the XQ7260P2 splicer?
TheXQ7260P2 splicer operates in a temperature range of 0-40°C and a humidity range of 5-95% RH.
What is the power supply requirement for the XQ7260P2?
The XQ7260P2 requires an external 12V power adapter for its power supply.
