Graphite Fiber Splicer (XQ7240)

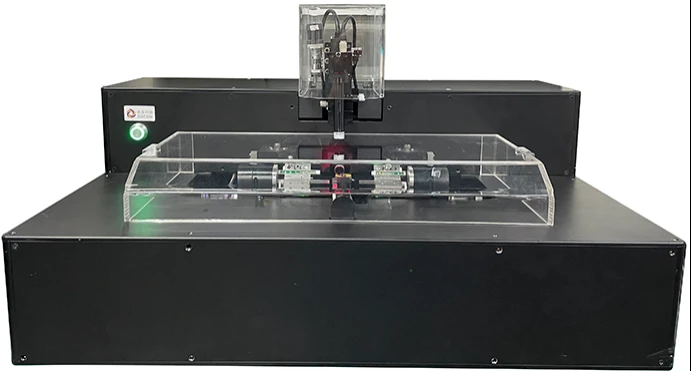

The XQ7240 Graphite Fiber Splicer is an innovative solution developed by OSCOM Technology, designed to meet the demands of modern fiber splicing. At the heart of this device is a U-shaped heated graphite filament, which serves as the primary heat source. This splicer is adept at handling a variety of fibers, including low melting point fibers, quartz fibers, and other specialized types. Its versatility is further enhanced by the ability to replace fiber holders and graphite heaters, accommodating fibers with different core diameters.

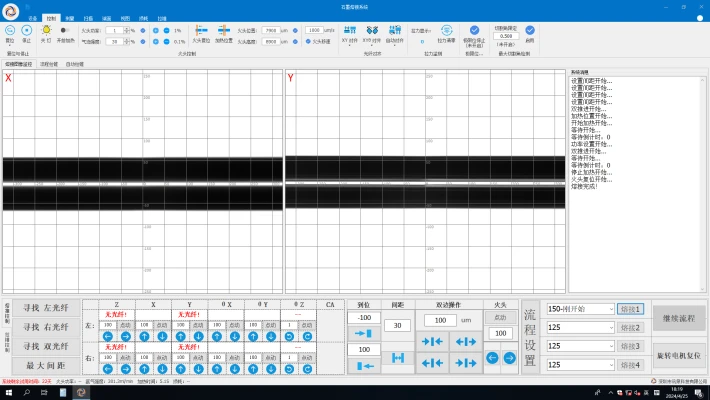

One of the standout features of the XQ7240 is its precision and automation. Equipped with a high-definition camera, the splicer accurately measures the position and distance of fibers. The precision six-dimensional electric displacement adjustment table allows for quick and automatic alignment of angles and end faces, ensuring a seamless splicing process. This level of automation simplifies operations, making it accessible for users with varying levels of expertise.
The XQ7240 is designed with flexibility in mind, offering a range of configurations to suit specific needs. Its robust construction and advanced technology make it an ideal choice for those requiring reliable and efficient fiber splicing solutions. Whether you are working with standard or specialized fibers, the XQ7240 provides the precision and adaptability necessary for high-quality results.
Graphite Fiber Splicer with Precision Alignment and Heating XQ7240
Specifications
| Supported Fiber Diameter: | 80 – 1500 um |
|---|---|
| X/Y Axis Alignment Accuracy: | 1μm |
| Weight: | 70Kg |
| Dimensions: | 850×550×450mm |
| Operating Power Supply: | AC100-240V/50-60Hz/5A |
| Operating Environment Humidity: | 5-95%RH |
| Operating Environment Temperature: | 0 - 40℃ |
| Z Axis Accuracy: | 1μm |
| θ Axis Alignment Range: | ±4.5° |
| θ Axis Alignment Accuracy: | 0.1° |
| Splicing Mode: | Standard splicing, user-defined splicing |
| CCD View: | 2.8x2.1mm or customization |
| Refrigeration System: | Water-cooling |
| Protective Gas: | Argon |
| Heating Temperature: | 30-2500℃ |
| Graphite Components: | Φ0.25mm / Φ0.6mm / Φ1.6mm |
| Movement Accuracy: | 1μm |
| Movement Speed: | 0-2000μm/s |
| Movement Range: | 0-150mm (75mm on each side) |
Download Data Sheet
Features
- Advanced Graphite Fiber Splicer: The XQ7240 utilizes a U-shaped heated graphite filament as its heat source, designed independently by OSCOM Technology.
- Versatile Fiber Splicing: Capable of splicing low melting point fiber, quartz fiber, special fiber, and more, accommodating various core diameters.
- Precision Alignment: Features a high-definition camera for accurate position and distance measurement, with a precision six-dimensional electric displacement adjustment table for automatic angle and end face alignment.
- Customizable Components: Easily replaceable fiber holders and graphite heaters to suit different splicing needs.
- Wide Movement Range: Offers a movement range of 0-150mm (75mm on each side) with a speed of 0-2000μm/s and an accuracy of 1μm.
- High-Temperature Capability: Operates at heating temperatures ranging from 30-2500℃ with protective argon gas.
- Efficient Cooling System: Equipped with a water-cooling refrigeration system to maintain optimal operating conditions.
- High-Resolution CCD View: Provides a 2.8x2.1mm view, customizable to meet specific requirements.
- Accurate Alignment: X/Y axis alignment accuracy of 1μm and θ axis alignment accuracy of 0.1° with a range of ±4.5°.
- Comprehensive Measuring System: Features automatic measurement and an image-forming system on the X/Y axis side.
- Robust Operating Environment: Functions effectively in temperatures from 0 - 40℃ and humidity levels of 5-95%RH.
- Flexible Power Supply: Compatible with AC100-240V/50-60Hz/5A power sources.
- Compact and Durable Design: Dimensions of 850×550×450mm and a weight of 70Kg ensure a sturdy and space-efficient setup.
- Specialized Configuration: Includes graphite components, a special fiber holder, and a water cooling device for enhanced performance.
Applications
Special fiber splicing
