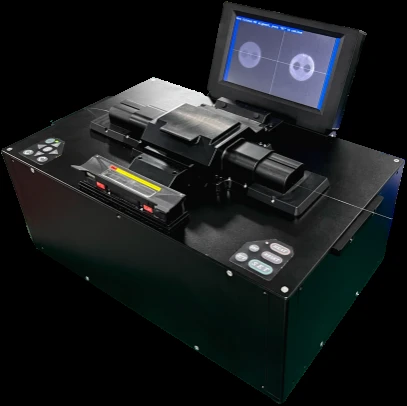

Polarization-maintaining Large Diameter Fiber Splicer (XQ7260C)

The XQ7260C is a state-of-the-art polarization-maintaining large diameter fiber splicer, meticulously designed by OSCOM Technology. This advanced device utilizes an electric arc as its heat source, enabling it to effectively splice quartz fiber, polarization-maintaining fiber, and large core fiber. The XQ7260C is equipped with a PAS side recognition and visual fiber end face image system, which significantly enhances the observation of fiber cleaving quality. This system ensures more accurate and faster alignment and splicing of polarization-maintaining fibers (PMF), making it an indispensable tool for professionals in the field.

One of the standout features of the XQ7260C is its adaptability. It allows for the replacement of different specifications of fiber holders, accommodating the splicing of fibers with varying core diameters. This flexibility ensures that the device can meet diverse splicing needs, making it a versatile choice for various applications. The integration of an artificial intelligence touch screen further enhances user interaction, providing an intuitive interface for seamless operation.

In addition to its technical prowess, the XQ7260C is designed with user convenience in mind. The visual fiber end face imaging system offers a clear and detailed view, facilitating precise adjustments and ensuring high-quality splicing results. Whether you are dealing with single mode, multi-mode, or polarization-maintaining fibers, the XQ7260C delivers exceptional performance with low splicing loss and high splicing quality, setting a new standard in fiber splicing technology.

Polarization-Maintaining Large Diameter Fiber Splicer XQ7260C

Visit the Shenzhen Oscom Technology Co., Ltd Store

Specifications

CCD Field Of View: 644x483
Weight: 11.1Kg
Overall Dimensions (LWH): 353x273x209mm
Power Supply: 12V/5A power adapter
Working Environment Humidity: 5-95%RH
Working Environment Temperature: 0-40℃
Splicing Procedure: Max100 edit parameters
Extinction Ratio: -30dB
Polarization-maintaining Fiber Axis Mode: 0°/ 45°/90°

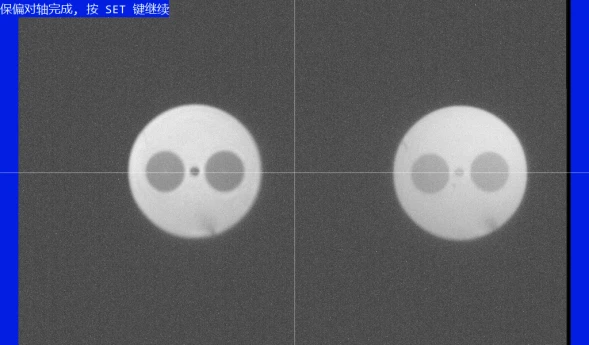

Polarization-maintaining Fiber Imaging: Imaging of the left/right end faces
Alignment Mode: Cladding Alignment
Application Of Optical Fiber: Single mode/multi-mode/polarization-maintaining fiber
Optical Fiber Image Magnification: 6 times
Display Size: 7.0 inch high resolution color LCD display
Splicing Mode: Manual splicing/automatic splicing
Temperature Of Heating Table: ≤240° (Adjustable)
Length Of Heating Table: ≤60mm
Optical Fiber Splicing Loss: Ordinary fibers ≤0.03dB, PM fibers ≤0.05dB
Splicing Time: Ordinary fibers≈18-20s, PM fibers≈70s
Acceptable Size (cladding) Of PMF & SMF: ≤500μm
Acceptable Size (coating): <1200μm
Left/Right Holder Motion Length: 0-3mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Splicing Loss: Achieve minimal splicing loss for both ordinary and polarization-maintaining fibers, ensuring high-quality connections.
  • High Splicing Quality: Designed to deliver superior splicing results with precision and reliability.
  • Artificial Intelligence Touch Screen: Features an intuitive touch screen interface for easy operation and control.
  • Visual Fiber End Face Imaging System: Equipped with a visual system to observe fiber cleaving quality, enhancing alignment accuracy.
  • PAS Side Identification: Utilizes PAS side recognition for efficient and precise fiber splicing.
  • Versatile Fiber Holder Options: Replaceable fiber holders accommodate different core diameters, providing flexibility for various splicing needs.
  • Fast Splicing Time: Splice ordinary fibers in approximately 18-20 seconds and polarization-maintaining fibers in about 70 seconds.
  • Adjustable Heating Table: Features a heating table with adjustable temperature up to 240°C for optimal splicing conditions.
  • High-Resolution Display: 7.0-inch color LCD display with 6x magnification for clear viewing of fiber images.
  • Customizable Splicing Parameters: Supports up to 100 editable splicing procedures to meet specific requirements.
  • Robust Working Environment: Operates efficiently in temperatures from 0-40℃ and humidity levels of 5-95% RH.
  • Compact and Portable Design: With dimensions of 353x273x209mm and a weight of 11.1Kg, it is easy to transport and set up.

Applications

  • Telecommunications: The XQ7260C fiber splicer is ideal for splicing optical fibers in telecommunications networks, ensuring low splicing loss and high-quality connections.
  • Data Centers: Use the XQ7260C for efficient fiber splicing in data centers, supporting high-speed data transmission with minimal loss.
  • Medical Equipment: The precision and reliability of the XQ7260C make it suitable for splicing fibers used in medical devices and equipment.
  • Research and Development: The XQ7260C fiber splicer is perfect for R&D applications where precise fiber splicing is required, such as in the development of new fiber optic technologies.
  • Industrial Automation: Utilize the XQ7260C fiber splicer in industrial settings for splicing fibers used in automation and control systems.
  • Aerospace and Defense: The XQ7260C can be used in aerospace and defense applications where robust and reliable fiber splicing is critical.
  • Broadcasting: Ensure high-quality signal transmission in broadcasting networks with the XQ7260C's advanced splicing capabilities.
  • Education and Training: The XQ7260C can be used in educational institutions for training purposes, providing hands-on experience with fiber splicing technology.

Frequently Asked Questions

What is the XQ7260C?
The XQ7260C is a polarization-maintaining large diameter fiber splicer designed by OSCOM Technology, used for splicing quartz fiber, polarization-maintaining fiber, and large core fiber.
What are the main features of the XQ7260C fiber splicer?
The main features of the XQ7260C include low splicing loss, high splicing quality, an artificial intelligence touch screen, a visual fiber end face imaging system, and PAS side identification.
What types of optical fibers can the XQ7260C splice?
The XQ7260C can splice single mode, multi-mode, and polarization-maintaining fibers.
How long does it take to splice fibers using the XQ7260C splicer?
The splicing time for ordinary fibers is approximately 18-20 seconds, while for polarization-maintaining fibers it is approximately 70 seconds.
What is the splicing loss for the XQ7260C?
The optical fiber splicing loss is ≤0.03dB for ordinary fibers and ≤0.05dB for polarization-maintaining fibers.
What is the display size of the XQ7260C?
The XQ7260C features a 7.0 inch high resolution color LCD display.
What are the power requirements for the XQ7260C?
The XQ7260C requires a 12V/5A power adapter.

Got more questions? Use the inquiry form to ask the supplier directly.
