Description

The XLP12-3S-H2-D0 Thermopile Laser Power Detector by Gentec-EO is a precision instrument designed for accurate laser power measurement up to 3 watts. This detector is engineered to combine the low noise level of a photodetector with the extensive bandwidth and high power capacity of a thermal device, making it an ideal choice for a variety of laser measurement applications.

One of the standout features of the XLP12-3S-H2-D0 thermal detector is its minimal thermal drift, rated at only 6 µW/°C when used with the IR filter. This ensures stable and reliable measurements even in fluctuating environmental conditions. The detector also boasts high sensitivity, providing 200 mV/W without the IR filter, which is crucial for detecting low power levels with precision.

This laser power detector model is particularly suited for ultrashort pulse lasers, thanks to its VP (volume absorber) version, which excels in handling low power lasers with picosecond and femtosecond pulses. Additionally, the optional IR filter in the XLPF12 model effectively removes unwanted infrared interference, enhancing measurement accuracy.

Designed with practicality in mind, this thermal laser power detector features an isolation tube that eliminates power fluctuations caused by air turbulence. This ensures consistent and reliable readings, making it a dependable tool for professionals in the field. The detector is also compatible with a range of displays and PC interfaces, including MAESTRO, TUNER, UNO, and various P-LINK and S-LINK models, providing flexibility and ease of integration into existing systems.

With a robust construction and a compact design, this thermopile based power detector measures 73H x 73W x 20D mm and weighs just 0.31 kg, making it both portable and durable. Its 12 mm aperture diameter and H2 absorber further enhance its capability to handle diverse laser measurement tasks efficiently. Whether for research, development, or industrial applications, this thermopile laser power detector is a reliable choice for precise laser power measurement.

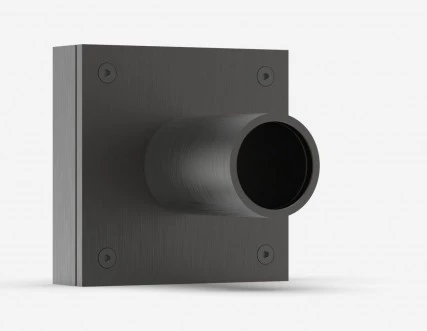

XLP12-3S-H2-D0 Thermopile Laser Power Detector 3W

Specifications

Detector Type: Thermal Absorber (thermopile)
Spectral Range: 0.19 – 20 um
Size: 12 mm
Maximum Power: 3 W
Noise Equivalent Power: 0.5 uW
Max Average Power Density: 1 kW/cm2
Maximum Average Power (continuous): 3 W
Maximum Average Power (1 Minute): 3 W
Noise Equivalent Power: 0.5 μW
Spectral Range: 0.19 - 20 μm
Typical Rise Time: 2.5 sec
Typical Power Sensitivity: 200 V/W
Power Calibration Uncertainty: ±2.5 %
Repeatability: ±0.5 %
Thermal Drift: 12 μW/°C
Typical Energy Sensitivity: 25 mV/J
Maximum Measurable Energy: 5 J
Noise Equivalent Energy: 12 μJ
Minimum Repetition Period: 16 s
Maximum Pulse Width: 300 ms
Energy Calibration Uncertainty: ±5 %
Maximum Average Power Density: 1 kW/cm²
Maximum Energy Density: 1 J/cm²
Peak Power Density: 143 MW/cm²
Aperture Diameter: 12 mm
Absorber: H2
Dimensions: 73H x 73W x 20D mm (72D mm with tube)
Weight: 0.31 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

The UP detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector, an Integra USB connector, a BNC connector, a Molex connector and a BNC/Molex connector.

A few exception exist: the UP50N series is available with BNC Molex connector on special order only and the XLP12, UP60N(M), and UP60G series are only supplied with a DB-15 “intelligent” male connector and the Integra USB connector.

Note: To eliminate possible damage, do not carry the detector using the connector cable.

The UP detectors may also be supplied with a stand. Be aware that when using a detector with a heat sink, the fins should always be placed vertically. For cases where Gentec-EO’s monitors don’t automatically read the wavelength correction factor, you can use your detector’s “Personal wavelength correction TM Certificate” to adjust the power you read to a power corrected for a particular wavelength.

Applications

  • Laser power measurements
  • Metrology

Frequently Asked Questions

What are the output connection options for the UP detectors?
The UP detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector, an Integra USB connector, a BNC connector, a Molex connector and a BNC/Molex connector.
What is the energy calibration uncertainty of this thermal detector?
The energy calibration uncertainty of the XLP12-3S-H2-D0 is ±5%.
What is the Gentec-EO Ultra Series UP power detector family?
The Gentec-EO Ultra Series UP power detector family includes thirteen series of opto-thermal sensors with different cooling options, with or without amplification.
What is the maximum average power that the XLP12-3S-H2-D0 can measure?
The XLP12-3S-H2-D0 can measure a maximum average power of 3 W.
What is the noise equivalent power of the laser power detector?
The noise equivalent power of the laser power detector is 0.5 μW.

Got more questions? Use the inquiry form to ask the supplier directly.
