Description

The UP19K-200W-H9-D0 is a state-of-the-art thermopile laser power detector designed by Gentec-EO, offering precise laser power measurement capabilities up to 200 W. This advanced detector is engineered to meet the demands of professionals requiring accurate and reliable laser power measurements across a wide range of applications. Its compact design, with a thickness of only 20.6 mm, ensures easy integration into various setups without compromising on performance.

One of the standout features of this detector is its modular concept, allowing users to enhance the power capability of the detector with five different cooling modules. This flexibility ensures that the detector can be tailored to specific needs, providing a high degree of adaptability. The detector's high performance is further highlighted by its fast rise time of 0.6 seconds and a high damage threshold of 45 kW/cm², making it suitable for demanding environments.

This detector model also excels in energy measurement, capable of measuring single-shot energy up to 15 J. Its smart interface contains all necessary calibration data, ensuring accurate and consistent measurements. With a spectral range of 0.19 to 20 μm, this detector is versatile enough to handle a variety of laser types and wavelengths. The device's power calibration uncertainty is ±2.5%, with a repeatability of ±0.5%, ensuring reliable performance in critical applications.

Designed with user convenience in mind, this photodetector is compatible with a range of stands and displays, including the STAND-S-233, MAESTRO, TUNER, and UNO, as well as various PC interfaces like S-LINK and P-LINK. This compatibility ensures seamless integration into existing systems, enhancing the user experience. With its robust construction and precision engineering, the UP19K-200W-H9-D0 is an ideal choice for professionals seeking a dependable solution for laser power measurement.

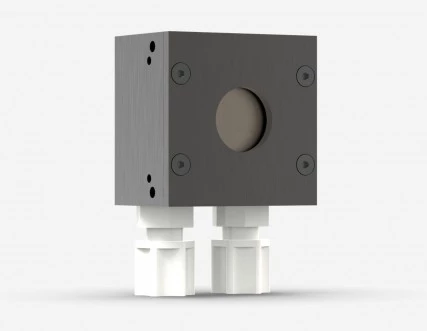

UP19K-200W-H9-D0 Thermopile Laser Power Detector

Specifications

Detector Type: Thermal Absorber (thermopile)
Spectral Range: 0.19 – 20 um
Size: 19 mm
Maximum Power: 200 W
Noise Equivalent Power: 2000 uW
Max Average Power Density: 45 kW/cm2
Maximum Average Power (continuous): 200 W
Maximum Average Power (1 Minute): 200 W
Noise Equivalent Power: 3 mW
Spectral Range: 0.19 - 20 μm
Typical Rise Time: 1.5 sec
Typical Power Sensitivity: 0.23 V/W
Power Calibration Uncertainty: ±2.5 %
Repeatability: ±0.5 %
Typical Energy Sensitivity: 0.23 mV/J
Maximum Measurable Energy: 25 J
Noise Equivalent Energy: 0.06 J
Minimum Repetition Period: 4 s
Maximum Pulse Width: 88 ms
Energy Calibration Uncertainty: ±5 %
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 1 J/cm²
Peak Power Density: 143 MW/cm²
Aperture Diameter: 19 mm
Absorber: H9
Dimensions: 76.5H x 50W x 35.5D mm
Weight: 0.24 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Modular Concept: Enhance the power capability of your detector with 5 different cooling modules.
  • High Performance:
    • Fast rise time of 0.6 seconds.
    • High damage threshold of 45 kW/cm².
  • Compact Design: Slim profile with only 20.6 mm thickness (15S model).
  • Energy Mode: Capable of measuring single shot energy up to 15 J.
  • Smart Interface: Contains all calibration data for seamless integration.
  • Compatible Stand: STAND-S-233.
  • Compatible Displays & PC Interfaces:
    • MAESTRO
    • TUNER
    • UNO
    • S-LINK-1
    • S-LINK-2
    • P-LINK (USB)
    • M-LINK
    • P-LINK (RS-232)
    • P-LINK-4 (USB)
    • P-LINK-4 (Ethernet) V2
    • S-LINK-1 (Ethernet)
    • S-LINK-2 (Ethernet)
  • Measurement Capabilities:
    • Maximum average power (continuous): 200 W
    • Noise equivalent power: 3 mW
    • Spectral range: 0.19 - 20 μm
    • Typical rise time: 1.5 sec
    • Typical power sensitivity: 0.23 V/W
    • Power calibration uncertainty: ±2.5%
    • Repeatability: ±0.5%
  • Energy Measurement Capabilities:
    • Maximum measurable energy: 25 J
    • Noise equivalent energy: 0.06 J
    • Minimum repetition period: 4 s
    • Maximum pulse width: 88 ms
    • Energy calibration uncertainty: ±5%
  • Damage Thresholds:

Applications

  • Laser power measurements
  • Metrology

Frequently Asked Questions

What applications is the UP19K-200W-H9-D0 detector suitable for?
The UP19K-200W-H9-D0 detector is suitable for laser power measurements.
What are the output connection options for the UP detectors?
The UP detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector, an Integra USB connector, a BNC connector, a Molex connector and a BNC/Molex connector.
What is the Gentec-EO Ultra Series UP power detector family?
The Gentec-EO Ultra Series UP power detector family includes thirteen series of opto-thermal sensors with different cooling options, with or without amplification.
What is the maximum average power and maximum measurable energy of the UP19K-200W-H9-D0 detector?
The UP19K-200W-H9-D0 detector has a maximum average power of 1200 W and a maximum measurable energy of 125 J.
What is the rise time and damage threshold of the UP19K-200W-H9-D0 detector?
The UP19K-200W-H9-D0 detector has a fast rise time of 0.6 sec and a high damage threshold of 45 kW/cm2.
