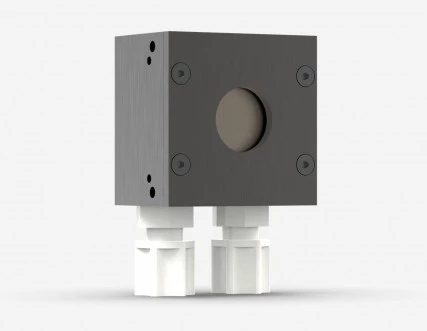

Gentec-EO High Power Detector UP19K-150W-H5-D0

Visit the Gentec-EO Store

Specifications

Detector Type: Thermal Absorber (thermopile)
Spectral Range: 0.19 – 20 um
Size: 19 mm
Maximum Power: 150 W
Noise Equivalent Power: 1000 uW
Max Average Power Density: 36 kW/cm2
Maximum Average Power (continuous): 150 W
Maximum Average Power (1 Minute): 190 W
Noise Equivalent Power: 1 mW
Typical Rise Time: 0.6 sec
Typical Power Sensitivity: 0.65 V/W
Power Calibration Uncertainty: ±2.5 %
Repeatability: ±0.5 %
Typical Energy Sensitivity: 0.65 mV/J
Maximum Measurable Energy: 15 J
Noise Equivalent Energy: 0.02 J
Minimum Repetition Period: 4 s
Maximum Pulse Width: 88 ms
Energy Calibration Uncertainty: ±5 %
Maximum Energy Density: 1 J/cm²
Peak Power Density: 143 MW/cm²
Aperture Diameter: 19 mm
Absorber: H5
Dimensions: 76.5H x 50W x 35.5D mm
Weight: 0.24 kg
Document icon Download Data Sheet Download icon

Features

The UP detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector, an Integra USB connector, a BNC connector, a Molex connector and a BNC/Molex connector.



A few exceptions exist: the UP50N series is available with BNC Molex connector on special order only and the XLP12, UP60N(M), and UP60G series are only supplied with a DB-15 “intelligent” male connector and the Integra USB connector.



Note: To eliminate possible damage, do not carry the detector using the connector cable.



The UP detectors may also be supplied with a stand. Be aware that when using a detector with a heat sink, the fins should always be placed vertically.



For cases where Gentec-EO’s monitors don't automatically read the wavelength correction factor, you can use your detector's "Personal wavelength correction TM Certificate" to adjust the power you read to a power corrected for a particular wavelength.

Applications


  • Laser power measurements

  • Metrology
