Description

Our pyroelectric detectors are a class of room temperature thermal detectors that produce a current output that is directly proportional to the rate of change of temperature when exposed to a source of radiation. They are best described by an AC current source, capacitor and resistor. Their current output is governed by the equation I = p(T)·A·dT/dt, where I is current, p(T) is the pyro coefficient, A is the area as defined by the front electrode, and dT/dt is the rate of temperature change of the pyro crystal. The advantages of a pyroelectric detector over other IR detectors are: room temperature operation, broad spectral response, high sensitivity (D*) and fast response (sub-nsec into 50 Ω).

Our passive discrete pyroelectric detectors range from 1 to 9 mm in diameter and are provided in two configurations: high sensitivity or high average power. They present a pyroelectric detector element covered with our metallic coating (MT) and are packaged in a miniature TO-5 or TO-8 can. The diagram shown left identifies the pin-out for both types of detectors.

Our organic black coating (BL) increases the optical absorption and helps flatten the spectral response. We also offer a number of permanent IR Windows that can be added to the TO can. These discrete pyro detectors are ideal for pulsed laser applications.

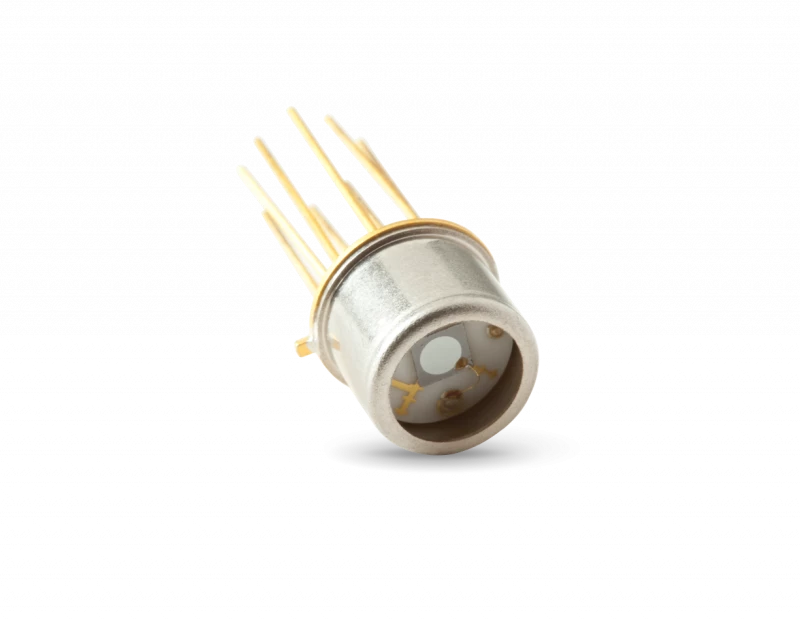

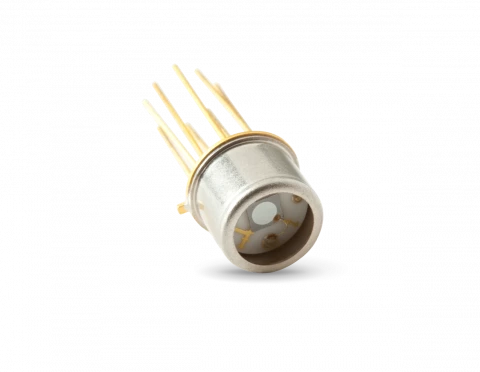

Gentec-EO Discrete Pyroelectric Sensor QS2-IF

Specifications

Detector Type: Pyroelectric
Spectral Range: 0.1 – 1000 um
Size: 2 mm
Maximum Power: 0.05 W
Noise Equivalent Power: 0.08 uW
Max Average Power Density: Not Specified
Current Responsivity: 0.5 μA/W
Thermal Frequency: 1.6 Hz
Voltage Responsivity: 50 V/W
Feedback Resistor: 100 MΩ
Supply Voltage: ±12 V
Absorber: MT
Dimensions: 9.1Ø x 6.4D mm
9.1Ø X 6.4D: 0.001 kg
Package: TO5

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Quartz: 0.2 – 3.5 µm
  • Barium fluoride: 0.2 – 17.5 µm
  • Sapphire: 0.1 – 7.0 µm
  • Silicon: 1.2 – 9.0 µm and 22 – 100 µm
  • AR germanium: 1.8 – 23 µm (10.6 µm peak)

Applications

  • Thermal measurements
  • Laser optics
  • Metrology
  • Inspection
  • Biomedical
  • Military

Frequently Asked Questions

What are the advantages of a pyroelectric detector over other IR detectors?
The advantages of a pyroelectric detector over other IR detectors are: room temperature operation, broad spectral response, high sensitivity (D*) and fast response (sub-nsec into 50 Ω).
What are the different configurations of the Gentec-EO Discrete Pyroelectric Sensor?
The Gentec-EO Discrete Pyroelectric Sensor is provided in two configurations: high sensitivity or high average power.
What are the measurement capabilities of the Gentec-EO Discrete Pyroelectric Sensor?
The measurement capabilities of the Gentec-EO Discrete Pyroelectric Sensor include a maximum average power of 50 mW, noise equivalent power of 80 nW, spectral range of 0.1 - 1000 μm, current responsivity of 0.5 μA/W, thermal frequency of 1.6 Hz, voltage responsivity of 50 V/W, and feedback resistor of 100 MΩ.
What are the physical characteristics of the Gentec-EO Discrete Pyroelectric Sensor?
The physical characteristics of the Gentec-EO Discrete Pyroelectric Sensor include a 2 mm aperture diameter, MT absorber, dimensions of 9.1Ø x 6.4D mm, weight of 0.001 kg, and TO5 package.
What is a pyroelectric detector?
A pyroelectric detector is a thermal detector that produces a current output that is directly proportional to the rate of change of temperature when exposed to a source of radiation.
