Description
Designed for life science and material inspection microscopes, SID4-sC8 brings fast, accurate and truly quantitative phase measurement in a compact, plug-and-play solution. Biologists will benefit from label-free cell imaging, high sensitivity and automatic segmentation, while material scientists will have access to accurate refractive index measurement, laser damage analysis and surface characterization.

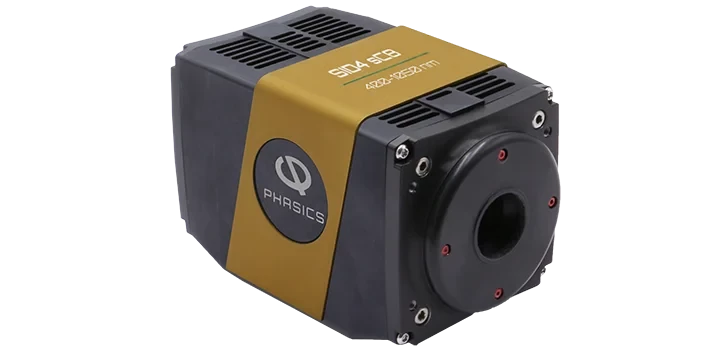

SID4-sC8 Ultra High-Resolution wavefront sensor - QUANTITATIVE PHASE IMAGING CAMERA
Specifications
| Wavelength Range: | 400 – 1000 nm |
|---|---|
| # Pixels (Width): | 852 |
| # Pixels (Height): | 720 |
| Lenslet Pitch: | 19.5 um |
| Wavefront Accuracy: | <= lambda/20 |
| Type: | Lateral Shearing |
Download Data Sheet
Features
- sCMOS sensor
- Single shot phase and intensity measurement
- Magnification from x2.5 to x150
- Compatible with acquisition software: Metamorph, Micromanager, NIS-Elements…
- Imaging at any wavelength
Applications
- Material inspection
- Quantitative Phase Imaging
- Optics metrology
Markets:
- Life science
- Material science
- AR/VR
- Smartphone
- Automotive
Frequently Asked Questions
What acquisition software is compatible with the SID4-sC8 camera?
The SID4-sC8 camera is compatible with acquisition software such as Metamorph, Micromanager, and NIS-Elements.
What are the benefits of using the SID4-sC8 camera for biologists?
Biologists will benefit from label-free cell imaging, high sensitivity, and automatic segmentation.
What are the benefits of using the SID4-sC8 camera for material scientists?
Material scientists will have access to accurate refractive index measurement, laser damage analysis, and surface characterization.
What is the sensitivity of the SID4-sC8 camera?
The resolution of the SID4-sC8 camera is less than 2 nm RMS.
What is the SID4-sC8 camera designed for?
The SID4-sC8 camera is designed for life science and material inspection microscopes.
