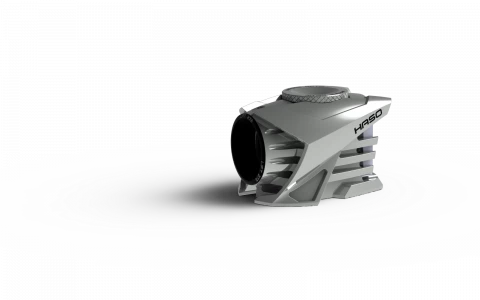

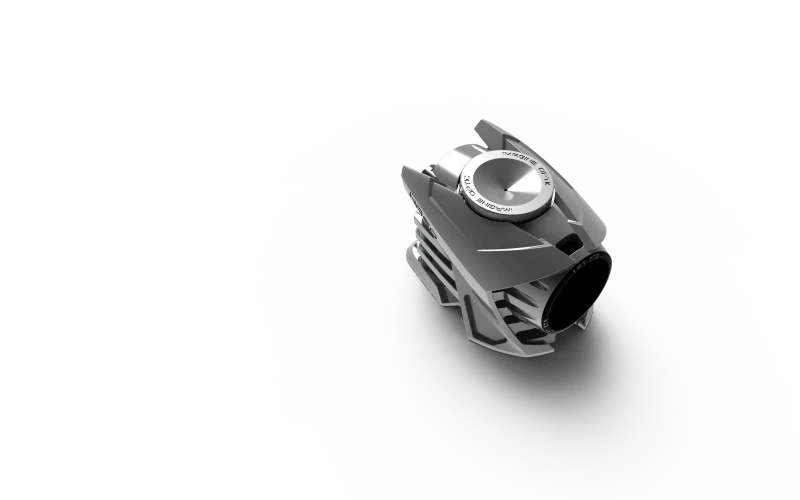

LIFT 272 Wavefront Sensor

Name: LIFT 272 Wavefront Sensor
Brand: Imagine Optic

Description

The LIFT 272 wavefront sensor is as powerful as its counterpart in terms of accuracy and dynamic range, while offering an unequaled resolution of 272 x 200 phase points. This allows the LIFT 272 to provide high-level of performance for applications requiring high accuracy, high dynamic range and high spatial resolution. It provides high-resolution and broadband for maximum precision and versability. The second generation was released in 2020, and features the new SpotTracker technology.

It provides absolute wavefront and tilt information, eliminating alignment requirements.

BEST FOR VERSATILITY

A great choice for lab or industrial application
Successfully used in the most demanding of applications in optical metrology, microscopy and laser diagnostics.
Optimize the alignment of complex systems
On and off-axis 3D MTF

Specifications

Wavelength Range:	400 – 750 nm
# Pixels (Width):	Not Specified
# Pixels (Height):	Not Specified
Lenslet Pitch:	Not Specified
Wavefront Accuracy:	<= lambda/30
Type:	Shack Hartmann, Lateral Shearing, Hartmann, Zernike, Other / Not specified
Repeatability:	Lambda/200 RMS
Phase Point Resolution:	272 x 200
Absolute Accuracy:	λ/100 RMS
Pupil Size:	7.0 x 5.2 mm²

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

The LIFT 272 enables you to perform multiple functions by
combining :

Ultra-high spatial resolution of 272 x 200, allowing characterization over several hundreds of Zernike polynomials
Accuracy of λ/100 RMS permitting small defects detection
Dynamic range superior to 1000 λ for direct wavefront acquisition of converging and diverging beams

Applications

Successfully used in the most demanding of applications in optical metrology, microscopy, and laser diagnostics, The LIFT 272 enables you to :

Quantify the optical system’s aberrations
Align the system to ensure that it performs at its best
Predict the optical system’s performance in terms of focalization capability or imaging quality
Quantify the effects of temperature and gravity on the system’s performance
Verify that the optics comply with specifications
Directly measure the optical system’s wavelength dependency
Pilot a wavefront corrector to change the system’s aberrations
Check whether the optical mount overly distorts the optics

Request Quote

To: Imagine Optic
Re: LIFT 272 Wavefront Sensor

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: France
Sold by:: Imagine Optic
On FindLight:: since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the resolution of the LIFT 272 wavefront sensor?

The LIFT 272 wavefront sensor has a resolution of 272 x 200 phase points.

What applications is the LIFT 272 suitable for?

The LIFT 272 is successfully used in optical metrology, microscopy, and laser diagnostics applications.

What functions can the LIFT 272 perform?

The LIFT 272 can quantify optical system aberrations, align the system, predict performance, quantify temperature and gravity effects, measure wavelength dependency, pilot a wavefront corrector, and check for optical mount distortion.

What is the dynamic range of the LIFT 272?

The LIFT 272 has a dynamic range superior to 1000 λ for direct wavefront acquisition of converging and diverging beams.

Does the LIFT 272 require alignment?

No, the LIFT 272 features SpotTracker technology that provides absolute wavefront and tilt information, eliminating alignment requirements.
