Beam Profiler Accessories

Beam\'R2-BeamMap2 Reflective Attenuator
DataRay Inc.
Add to watch list
Beam\'R2-BeamMap2 Reflective Attenuator
Compare
Reflective attenuator by DataRay Inc.    - Mounted thin‐film high power reflective attenuators for BeamMap2/Beam’R2 series - Center wavelength options: 488 to 1900 nm - OD options: 1.0, 2.0 & 3.0. (Reflectivities of 90, 99 & 99.9 %, meaning Transmissions 1, 0.1 & 0.01 %) - Mounting: Screw‐on holder or ...
Data Sheet
WinCamD Reflective Attenuator
DataRay Inc.
Add to watch list

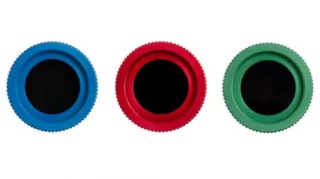

WinCamD Reflective Attenuator
Compare
Reflective attenuator by DataRay Inc.  - Mounted thin‐film high power reflective attenuators for WinCamD series - Center wavelength options: 488 to 1900 nm - OD options: 1.0, 2.0 & 3.0. (Reflectivities of 90, 99 & 99.9 %, meaning Transmissions 1, 0.1 & 0.01 %) - Mounting: Screw‐on holder or permanently mounted in ...
Data Sheet
WinCamD Series UV Converter
DataRay Inc.
Add to watch list
WinCamD Series UV Converter
Compare
UV converter by DataRay Inc used in light source diagnostic applications.  - The UV beam impinges on a custom thin crystal faceplate which fluoresces in the visible. - This crystal fluorescence is reimaged onto the camera. - Coated crystal option for coherence lengths ≥1 mm.

Specifications
Part Number (Dependent On Model): BSFXX-X-XXX
Data Sheet
Variable Attenuator Wheel
DataRay Inc.
Add to watch list
Variable Attenuator Wheel
Compare
Variable attenuator (neutral density filter) wheel by DataRay Inc. 4x4 position wheels, 93 dB optical dynamic range, 350 to 2200 nm. This is a simple-to-use variable attenuator. It consists of a bank of four filter wheels, each with three different filters ranging from 100% transmission down to 0.003 %. This filter ...
Data Sheet

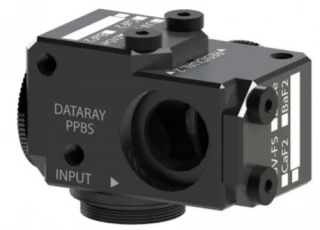

ZnSe Polarization Preserving Beam Sampler
DataRay Inc.
Add to watch list
ZnSe Polarization Preserving Beam Sampler
Compare
DataRay Innovation: The company that brought you the first Windows‐based CCD beam profiler, the first Camera for confined spaces, the first software slider exposure and electronic auto‐shutter, the first standard window‐free CCD for no fringing, the first auto‐orientation on the ellipse & the first USB 2.0 beam profiling camera ...

Specifications
Wavelength Range: 0.19 - 10.6 um
Average Transmission: 2.2 %
Optical Density (OD): 1.7
Part Number: PPBS-ZnSe
Data Sheet
BaF2 Polarization Preserving Beam Sampler
DataRay Inc.
Add to watch list
BaF2 Polarization Preserving Beam Sampler
Compare
The Polarization Preserving Beam Sampler (PPBS) uses a dual wedge design to sample a small percentage of a beam’s power for laser beam profiling applications. The PPBS samples the reflections from two orthogonal wedge windows to safely reduce the power of high intensity light while preserving the original polarization of the ...

Specifications
Wavelength Range: 0.19 - 10.6 um
Average Transmission: 0.03 %
Optical Density (OD): 3.5
Data Sheet
CaF2 Polarization Preserving Beam Sampler
DataRay Inc.
Add to watch list
CaF2 Polarization Preserving Beam Sampler
Compare
The Polarization Preserving Beam Sampler (PPBS) uses a dual wedge design to sample a small percentage of a beam’s power for laser beam profiling applications. The PPBS samples the reflections from two orthogonal wedge windows to safely reduce the power of high intensity light while preserving the original polarization of the ...

Specifications
Wavelength Range: 190 - 3000 nm
Average Transmission: 0.04 %
Optical Density (OD): 3.4
Part Number: PPBS-CaF2
Data Sheet
BaF2 Polarization Preserving Beam Sampler
DataRay Inc.
Add to watch list
BaF2 Polarization Preserving Beam Sampler
Compare
The Polarization Preserving Beam Sampler (PPBS) uses a dual wedge design to sample a small percentage of a beam’s power for laser beam profiling applications. The PPBS samples the reflections from two orthogonal wedge windows to safely reduce the power of high intensity light while preserving the original polarization of the ...

Specifications
Wavelength Range: 190 - 3000 nm
Average Transmission: 0.06 %
Optical Density (OD): 3.2
Part Number: PPBS-BaF2
Data Sheet
UV-FS Polarization Preserving Beam Sampler
DataRay Inc.
Add to watch list
UV-FS Polarization Preserving Beam Sampler
Compare
The Polarization Preserving Beam Sampler (PPBS) uses a dual wedge design to sample a small percentage of a beam’s power for laser beam profiling applications. The PPBS samples the reflections from two orthogonal wedge windows to safely reduce the power of high intensity light while preserving the original polarization of the ...

Specifications
Wavelength Range: 190 - 2000 nm
Average Transmission: 0.05 %
Optical Density (OD): 3.3
Part Number: PPBS-UV-FS
Data Sheet

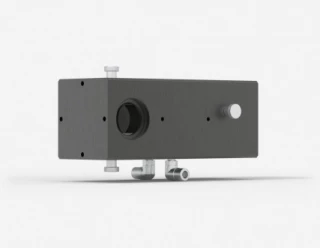

Beam Sampler for Kilowatt-Level Lasers (BA32-1KW)
Gentec-EO
Add to watch list
Beam Sampler for Kilowatt-Level Lasers (BA32-1KW)
Compare
BA32-1KW is a beam sampler for Kilowatt level lasers. It is an enabling technology that allows camera-based beam profiling for high power lasers. This water-cooled beam splitter is ideal for in line beam profiling in a variety of high-power applications, from military to industrial materials processing and R&D. The BA32-1KW beam ...

Specifications
Spectral Range: 200 - 2,100 nm
Mounting Thread: SM2
Equivalent Attenuation: 1/1900 @ 1064 nm
Integrated Power Detector: Compatible with UP55 series (not included)
Optical Wedges Material: UV Fused Silica (uncoated)
...
Data Sheet
ELWIMAT-AKF VIS 1000 Autocollimator
Hofbauer Optik Mess- & Prüftechnik
Add to watch list
ELWIMAT-AKF VIS 1000 Autocollimator
Compare
TheELWIMAT-AKF VIS is an autcollimator with scale display for visual evaluation on a magnifying screen. It is used wherever visual autocollimators with eyepieces have been used so far. It offers a simple and inexpensive way to use an autocollimator in all known applications.
Data Sheet
ELWIMAT-AKF Digi 2000 Autocollimator
Hofbauer Optik Mess- & Prüftechnik
Add to watch list
ELWIMAT-AKF Digi 2000 Autocollimator
Compare
The ELWIMAT-AKF Digi 2000 is a compact, electronic autocollimator with high-precision, distortion-free optics and integrated camera as well as powerful LED illumination.
Data Sheet
Telops Laser Diode Characterization System
Yelo Ltd
Add to watch list
Telops Laser Diode Characterization System
Compare
Our most accurate tester, the laser diode characterization system precisely measures and provides you with detailed analysis of the performance characteristics of your laser device such as optical power, spectrum, nearfield and farfield. It\'s smart user-friendly software will conveniently plot graphs of test measurements giving you ...
Data Sheet
Laser Analyzing Autocollimator
Duma Optronics
Add to watch list
Laser Analyzing Autocollimator
Compare
Precise USB2.0 device combining the functionality of autocollimator and alignment telescope with laser beam profiling capability. The system measures minute angular displacements for various optical setups and alignment tasks, as well as laser beam divergence analysis. The system offers portable, compact and accurate beam ...
Data Sheet
Adjustable Lateral Offset Device
Duma Optronics
Add to watch list
Adjustable Lateral Offset Device
Compare
The Adjustable Lateral Offset device (LOD) is used to perfectly cancel offset between two optical line of sights: The paralax cancelling is perfectly preserving parallelism between original lines of sightStandard +/- 3 arc secMonolithic designThe LOD is mounted on a concentric dual axis rotational device, capable of rotating the ...
Data Sheet
Reflective Beam Sampler For High Power Beam Analyzers
Duma Optronics
Add to watch list
Reflective Beam Sampler For High Power Beam Analyzers
Compare
High precision beam diagnostics for CW lasers up to 4 kWatts. A wide spectral range from deep UV through 2700 nm. Wide dynamic range, beam size measurements down to several microns and up to 9 mm. This is a complete system for high laser power measurement, including a beam sampler, the measuring head and ...
Data Sheet
OEwaves Homodyne Laser Phase Noise & Linewidth Test System
OEwaves
Add to watch list

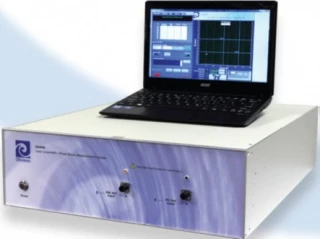

OEwaves Homodyne Laser Phase Noise & Linewidth Test System
Compare
OEwaves’ Ultra-Narrow Laser Linewidth and Frequency Noise Measurement System utilizes a homodyne methodology for automated measurement capable of testing ultra-low phase noise laser sources. The user friendly test system is capable of rapidly measuring <10 Hz Lorentzian linewidth of a laser source without the complicated setup ...

Specifications
Linewidth Sensitivity: 10 Hz
Frequency Noise Floor: <1 Hz/rt-Hz
System Rack-Mount: 19 in
Offset Frequency Range: 1-100M Hz
Data Sheet
SpotOn USB2.0
Duma Optronics
Add to watch list
SpotOn USB2.0
Compare
A portable, fast and accurate optical beam positioning system having a USB2.0 interface. The system is based on a 24 bit A/D electronics box, powered via the  USB2.0 port. It offers simultaneous operation of one or two PSD\'s in one system. The PSD\'s are Lateral Effect type or Four-Quadrant type.  ...

Specifications
Detector Size: 10 x 10 mm
Usable Beam Size: 50 - 8000 micrometer
Position Resolution: Down to 0.25% of Beam Size
Update Rate: Max 150Hz at 500Hz digital filter
Spectral Range: 350 - 1100 nm
...
Data Sheet
AlignMeter USB
Duma Optronics
Add to watch list
AlignMeter USB
Compare
Simultaneous measurements of position and angular displacements. The system offers real time measurements of beam position and angular displacements as well as power display, with resolution down to 0.1 um. The system measures CW beams, and offers portable, fast and accurate beam alignment solution. It is a USB2.0 device, the system ...

Specifications
Usable Beam Size Range: 50 - 8000 mm
Update Rate: Max 150Hz at 500Hz digital filter
Spectral Range: 350 - 1100 nm
Position Measurement Range : 8 dia circle max mm
Power Range: 10 - 10000 µW
...
Data Sheet
Pulse Measurement Device
Swamp Optics, LLC
Add to watch list
Pulse Measurement Device
Compare
Swamp Optics offers compact, convenient FROG devices for measuring ultrashort laser pulses in real time and which yield the most complete measurements ever and include the beam spatial profile and spatio-temporal distortions.  Awards include an R&D100 award and a Circle of Excellence award.  Swamp Optics also offers ...
Data Sheet
