Description

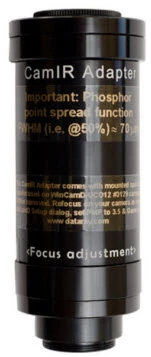

CamIR Adapter is a cost-effective Telecom C-band NIR image converter by DataRay Inc., the industry leader is design and manufacture of laser beam profilers.
Technology: A proprietary phosphor converts 1480-1605 nm photons to Silicon CMOS/ CCD detectable wavelengths image to the attached CMOS/CCD camera at a demagnification of x0.29 (PMF=3.5), to give an effective active area of 22 x 16.5 mm with a ½\", 1/1.8\", ⅔\", or 1\" cameras. The effective pixel size is 3.5 x the actual pixel size, but due to the phosphor, the primary limitation is the phosphors point spread function of ~70 μm FWHM, and ~200 μm at 1/e2.
The response to incoming irradiance is logarithmic. This is automatically corrected in WinCamD software, by setting the gamma in setup to 2.00. Like any phosphor, the response is spatially non-uniform. Typical beam diameter measurement accuracy is around 5 to 10%.
Performance and Pricing: This technology is better than the low resolution and image lag of IR vidicons, yet less sensitive and less uniform than InGaAs arrays.
CamIR Adapter - NIR Image Converter
Specifications
| Active Area: | 27.5 mm |
|---|---|
| IR Spectral Sensitivity: | 1480 - 1605 nm (see curve) |

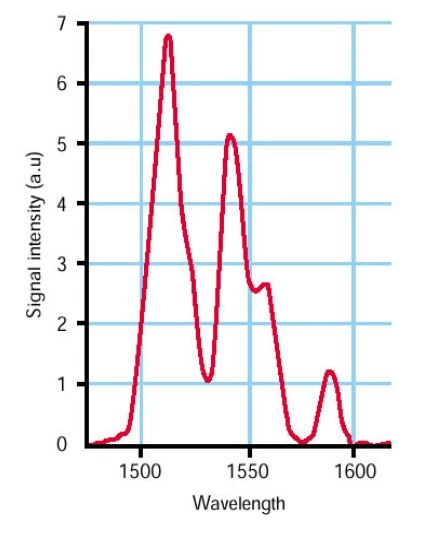

| Peak IR Sensitivity: | 1510/1540 nm (see curve) |
| Maximum Resolution: | 12 lp/mm over active area |
| Converter IR Output: | 950 - 1075 nm |
| Distortion: | -1.0% Barrel Distortion (Inverted Image) |
| Linearity: | Non-Linear IR converter output ~(IR input intensity) |
| Maximum Illumination: | 1 W/cm^2 |
| Dimensions: | Φ 46 mm x L 97 mm |
| Operating Temperature: | -10⁰ C to +40⁰ C |
| Weight: | 210 g |
| Mount: | C-Mount (adapter supplied) |
| Effective Aperture: | 17 mm, 19 mm, 23 mm, 27.5 mm |
| Camera Format: | ½", 1/1.8", ⅔", 1" formats |
Download Data Sheet
Features
- Extends the range of our standard silicon cameras into the near-infrared 1480 to 1605 nm
- No image fading or lag time
- Cost effective for beams ≥ 500 μm
- High quality AR coated optics
Applications
- Beam intensity profiling of telecom diodes/devices
- Imaging optical outputs of components such as optical fiber ends, amplifiers, routers and switchers, fiber gratings, splitters and couplers
- On Line Production Alignment and Characterization –Real time Lens focusing
- Stability Testing- Beam Wander over time
- Laser beam divergence measurements
- Co-Linear Measurements Aligning two lasers
- Multiple Image separation Measurements (distance between peaks)
- Measure Relative Intensity
Frequently Asked Questions
What is the wavelength range of the CamIR Adapter?
The CamIR Adapter extends the range of standard silicon cameras into the near-infrared 1480 to 1605 nm.
What is the primary limitation of the CamIR Adapter?
The primary limitation of the CamIR Adapter is the phosphor's point spread function of ~70 μm FWHM, and ~200 μm at 1/e2.
What is the typical beam diameter measurement accuracy of the CamIR Adapter?
The typical beam diameter measurement accuracy of the CamIR Adapter is around 5 to 10%.
What is the response of the CamIR Adapter to incoming irradiance?
The response of the CamIR Adapter to incoming irradiance is logarithmic.
What is the gamma setting in the WinCamD software used for?
The gamma setting in the WinCamD software is used to automatically correct the logarithmic response of the CamIR Adapter.
