Description
The WinCamD + BSF Series UV Beam Converter from DataRay is a compact and high-performance tool designed for accurate beam profiling of pulsed and continuous wave (CW) UV sources, ranging from X-rays to 355 nm.
Featuring a custom thin crystal faceplate, the UV beam fluoresces in the visible spectrum, which is then reimaged onto a camera for precise diagnostics. With a high resolution of 5 µm on a collimated beam, the system is optimized for beam sizes ranging from 50 µm to 38 x 28 mm. It is ideal for UV laser systems such as YAG, Argon ion, and HeCd lasers. The WinCamD + BSF series provides high dynamic range adjustments with a 100:1 adjustment, crucial for working with pulsed lasers.
The UV converter is designed for exceptional stability and longevity, with crystal durability exceeding 10^7 pulses. With multiple crystal faceplate options and high damage thresholds (500 mJ/cm²), this product ensures versatile and reliable performance in demanding environments.

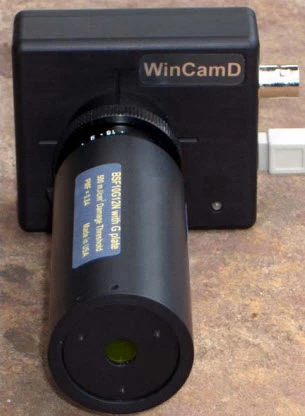

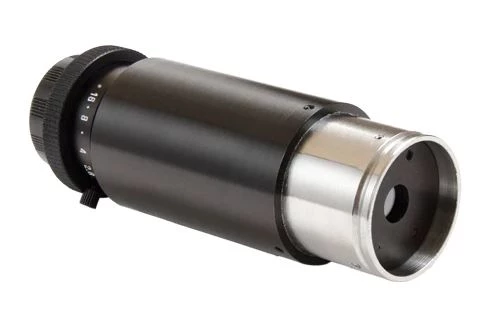

WinCamD Series UV Converter
Specifications
| Part Number (Dependent On Model): | BSFXX-X-XXX |
|---|---|
| Aperture (BSF08): | 6.4 x 4.8 mm |
| Aperture (BSF12): | 9.6 x 7.2 mm |
| Aperture (BSF23): | 19.2 x 13.8 mm |
| OAL X Diam. (BSF08): | 89 x 35 mm |
| OAL X Diam. (BSF12): | 113 x 35 mm |
| OAL X Diam. (BSF23): | 140 x ≤ 75 mm |
| Configuration: | Axial cylinder |
| Primary Options & Application: | C crystal: 193 nm | G crystal: Wide λ, low fluence | P crystal: λ <350, high fluence, fast | R crystal: Wide λ, high fluence, slow |
| λ Nm Band: | C crystal: 110 – 225 | G crystal: 1 – 400 | P crystal: 110 – 350 | R crystal: 110 – 532 |
| Relative Response @ 192, 248, 308 Nm: | C crystal: 400, N/A, N/A | G crystal: 10, 10, 50 | P crystal: 30, 30, 50 | R crystal: 50, 400, 400 |
| Decay Time: | C crystal: 3 – 5 µs | G crystal: 0.5 µs | P crystal: 5 µs | R crystal: 3,000 µs |
Download Data Sheet
Features
- High Resolution: 5 µm on a collimated beam for precise profiling
- Wide Wavelength Compatibility: Effective for UV lasers from 193 nm to 355 nm
- Long-Term Stability: Crystal durability exceeds 10^7 pulses for reliable, long-term operation
- Dynamic Range Adjustment: 100:1 range for optimal beam profiling with pulsed lasers
- Crystal Faceplate Options: Four optimized for different wavelength ranges
- High Damage Threshold: 500 mJ/cm², 1.5 W/cm² for high-power applications
- Compact and Easy Setup: Simple integration with USB-powered WinCamD-U series cameras
- Beam Size Compatibility: Handles beam sizes from 50 µm to 38 x 28 mm
- Flexible Aperture: Adjustable from f/1.6 to f/16 for precise irradiance control
Applications
- Beam Profiling for UV Lasers: Ideal for pulsed and CW UV sources such as YAG, Argon Ion, and HeCd lasers
- High-Precision Diagnostics: Suitable for accurate beam characterization in scientific research and industrial applications
- Laser Stability Testing: Ensures reliable performance for pulsed and CW UV sources
- UV Laser Power Measurement: Used in measuring power densities for UV laser systems
- High-Power Laser Systems: Optimized for systems with high damage thresholds up to 500 mJ/cm²
Frequently Asked Questions
What is the WinCamD Series UV Converter used for?
The WinCamD Series UV Converter is used for economical, accurate, and compact beam profiling of pulsed and CW UV sources, as well as X-ray note 3 to 355 nm.
How does the WinCamD Series UV Converter work?
The UV beam impinges on a custom thin crystal faceplate which fluoresces in the visible. This crystal fluorescence is reimaged onto the camera.
What is the resolution of the WinCamD Series UV Converter?
The WinCamD Series UV Converter has a high resolution of 5 µm on a collimated beam.
What is the damage threshold of the WinCamD Series UV Converter?
The WinCamD Series UV Converter has a high damage threshold of 500 mJ/cm2, 1.5 W/cm2, 4 W max total. Higher power level? Contact DataRay.
What are the applications of the WinCamD Series UV Converter?
The WinCamD Series UV Converter is used for X-ray note 3 to 355 nm and economical, accurate, compact beam profiling of pulsed and CW UV sources.
