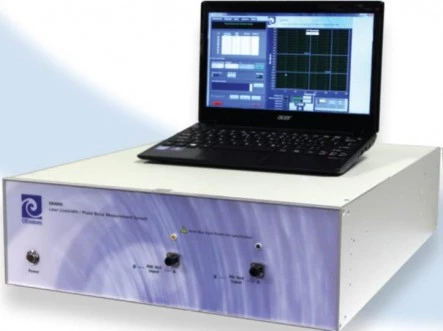

OEwaves Homodyne Laser Phase Noise & Linewidth Test System
Description
OEwaves’ Ultra-Narrow Laser Linewidth and Frequency Noise Measurement System utilizes a homodyne methodology for automated measurement capable of testing ultra-low phase noise laser sources. The user friendly test system is capable of rapidly measuring <10 Hz Lorentzian linewidth of a laser source without the complicated setup typically required to make such a narrow linewidth measurement.
This homodyne based system is unique in wide band measurement without requiring another low noise reference laser source. The complete system operates with ease, speed and precision, and a simple graphic user interface via a PC, without requiring any additional test equipment. The unmatched ultra-low phase/frequency noise measurement system is scalable to various input wavelengths and capable of optional low relative intensity noise (RIN) measurement.
OEwaves Homodyne Laser Phase Noise & Linewidth Test System
Specifications |
|
|---|---|
| Linewidth Sensitivity: | 10 Hz |
| Frequency Noise Floor: | <1 Hz/rt-Hz |
| System Rack-Mount: | 19 in |
| Offset Frequency Range: | 1-100M Hz |
Features
Scalable input wavelength range of 630nm-2.2um
RIN Measurement option
Fast Real-Time Measurement
Fully Automated
No Low Noise Reference Source Required
User Friendly Interface
Simple PC-based Operation
3U x 19” Rack System
Customizable Configurations, Multiple Input Bands, Upgrades, and Options
Applications
Laser RIN Test & Measurement
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The OEwaves Homodyne Laser Phase Noise & Linewidth Test System is an automated measurement system that is capable of testing ultra-low phase noise laser sources.
The input wavelength range of the system is scalable from 630nm to 2.2um.
No, the homodyne based system is unique in wide band measurement without requiring another low noise reference laser source.
Yes, the system is user-friendly with a simple graphic user interface via a PC, without requiring any additional test equipment.
The system is suitable for CW Laser Phase/Frequency Noise & Linewidth Test & Measurement and Laser RIN Test & Measurement.
