Description
DataRay Innovation: The company that brought you the first Windows‐based CCD beam profiler, the first Camera for confined spaces, the first software slider exposure and electronic auto‐shutter, the first standard window‐free CCD for no fringing, the first auto‐orientation on the ellipse & the first USB 2.0 beam profiling camera … has done it again now with our new USB 3.0 compact 1” format cameras.
Product Description: The Polarization Preserving Beam Sampler (PPBS) uses a dual wedge design to sample a small percentage of a beam’s power for laser beam profiling applications. The PPBS samples the reflections from two orthogonal wedge windows to safely reduce the power of high intensity light while preserving the original polarization of the input beam and eliminating the effects of multiple reflections from each air-glass interface. PPBS is a components in laser beam profiler systems.
Wedge options
- UV-FS: 190 nm - 2200 nm
- BaF2: 200 nm - 11 µm
- CaF2: 200 nm - 8 µm
- ZnSe: 600 nm - 16 µm

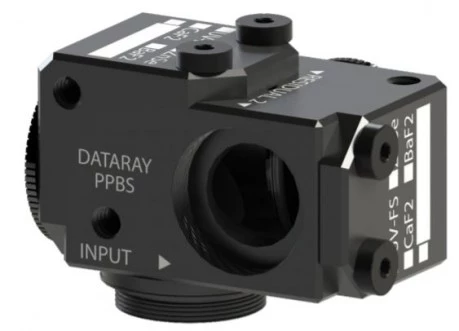

Polarization Preserving Beam Sampler (PPBS)
Specifications
| Wavelength Range (UV-FS): | 190 nm - 2200 nm |
|---|---|
| Wavelength Range (BaF2): | 200 nm - 11 µm |
| Wavelength Range (CaF2): | 200 nm - 8 µm |
| Wavelength Range (ZnSe): | 600 nm - 16 µm |
| Average Transmission (UV-FS): | 0.05 % |
| Average Transmission (BaF2): | 0.06 % |
| Average Transmission (CaF2): | 0.04 % |
| Average Transmission (ZnSe): | 2.2 % |
| Optical Density (OD): | 1.7 |
| Part Numbers: | PPBS-UV-FS, PPBS-BaF2, PPBS-CaF2, PPBS-ZnSe |
| Clear Aperture: | 17.5 mm |
| Sampled Percentage: | 0.02%-3.75% (model and wavelength dependent) |
| Optical Path Length: | 50 mm |
Download Data Sheet
Features
- Wavelength range: 0.190-16 µm (model dependent)
- Clear Aperture: 17.5 mm
- Sampled Percentage: 0.1%-3%
- Optical Path Length: 50 mm
- Wedge Materials: ZnSe
- Optional Beam Trap (BT-50) offered for beams to 50 W
- Available with post mount kit (Post-Kit-2-A)
Applications
This Polarization Preserving Beam Sampler (PPBS) samples only a small portion of the laser beam's power and is ideal for all types of experimental settings where accurate information of the laser beam profile is needed.
Frequently Asked Questions
What is the Polarization Preserving Beam Sampler (PPBS)?
The Polarization Preserving Beam Sampler (PPBS) is a device that uses a dual wedge design to sample a small percentage of a beam's power for laser beam profiling applications.
What is the wavelength range of the PPBS?
The wavelength range of the PPBS is model dependent and ranges from 0.190-16 µm.
What is the purpose of the PPBS?
The PPBS is used to sample only a small portion of the laser beam's power and is ideal for all types of experimental settings where accurate information of the laser beam profile is needed.
What are the wedge options for the PPBS?
The wedge options for the PPBS include UV-FS, BaF2, CaF2, and ZnSe.
What is the average transmission percentage of the PPBS at common wavelengths?
The average transmission percentage of the PPBS at common wavelengths varies depending on the model, ranging from 0.03-2.2%.
