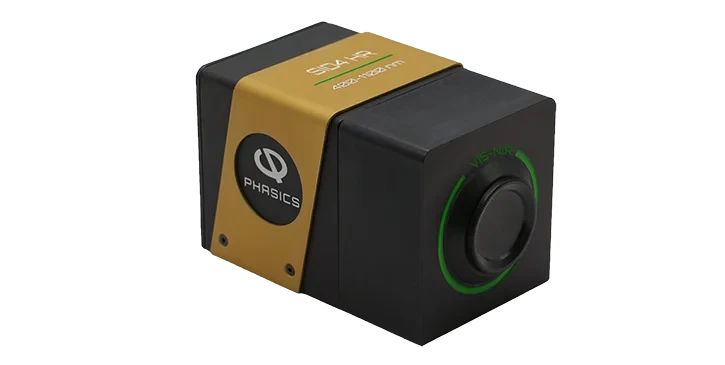

SID4 HR High-Resolution Wavefront Sensor Overview

The SID4 HR is a very high-resolution wavefront sensor designed for demanding optical metrology, laser beam characterization, and phase measurement applications where fine spatial detail, high sensitivity, and a large usable aperture are essential. Built for advanced wavefront analysis, it delivers dense phase and intensity sampling of 416 x 360 points, enabling precise characterization of complex optical fields, aberrations, and beam profiles across a broad wavelength range from 400 nm to 1100 nm.

With its large 9.98 x 8.64 mm² aperture and fine 24 µm phase spatial resolution, the SID4 HR is well suited for direct measurement of large diverging beams without requiring relay optics. This makes it especially valuable in optical setups where preserving beam integrity, reducing alignment complexity, and minimizing additional optical components are critical. Its ability to measure wavefronts with a high dynamic range of up to 500 µm PV supports applications involving strongly aberrated beams, optical assemblies, and non-collimated light sources.

Engineered for high-sensitivity wavefront metrology, the SID4 HR provides phase resolution below 2 nm RMS and absolute accuracy of 20 nm RMS, making it suitable for precision optical testing, component validation, and real-time alignment tasks. Compared with conventional Shack-Hartmann wavefront sensors and standard interferometric beam profilers, this sensor is optimized for applications requiring both high spatial sampling and robust phase measurement over a larger aperture, offering a strong balance of resolution, dynamic range, and practical integration.

The sensor is applicable across advanced sectors such as defense optics, astronomy instrumentation, optical component and assembly inspection, adaptive optics, laser diagnostics, augmented reality, virtual reality, and high-performance imaging systems. In astronomy and defense applications, it can support wavefront correction, optical alignment, and system qualification. In AR/VR and optical manufacturing, it enables detailed inspection of lenses, modules, freeform optics, and assembled optical systems where small wavefront errors can significantly affect final image quality.

For laboratory and industrial environments, the SID4 HR combines high-resolution wavefront sensing with practical system integration. Its Gigabit Ethernet interface, compact 73 x 71 x 90 mm form factor, and approximately 450 g weight make it suitable for integration into optical benches, automated test stations, and production metrology platforms. With a frame rate of 10 fps and real-time full-resolution processing up to 3 fps when used with compatible analysis software, it supports both detailed characterization and dynamic measurement workflows.

Overall, the SID4 HR is a high-performance wavefront measurement solution for users who need exceptional phase sampling, nanometer-level sensitivity, and the ability to measure large or highly divergent beams directly. Its combination of broad spectral compatibility, large aperture, high dynamic range, and compact design makes it a strong choice for precision optical metrology, beam diagnostics, and advanced photonics research.
