Description
The WaveCamD CMOS Shack Hartmann Wavefront Sensor from DataRay is a cutting-edge wavefront sensor that leverages the precision of a Shack Hartmann wavefront sensor combined with a microlens array (MLA) to deliver high-resolution wavefront measurements. The MLA features a grid of 60 x 60 lenslets with a 150 µm pitch, allowing for a comprehensive 2D representation of wavefronts within the 355-1150 nm range. This sophisticated setup supports both zonal (numerical) and modal (Zernike polynomial) reconstruction methods, offering versatile wavefront characterization in a single-shot.
Designed to meet the demands of modern optical analysis, the WaveCamD wavefront sensor is seamlessly integrated with DataRay’s robust software suite. This software is provided with no license fees, supports unlimited installations, and includes free updates, ensuring that users always have access to the latest features and improvements. This makes the WaveCamD wavefront sensor an excellent choice for a variety of applications, including continuous wave (CW) and pulsed wavefront measurements, zonal or modal wavefront reconstruction, and field servicing of optical components and processes. It is particularly adept at one-shot beam alignment tasks such as pointing, beam collimation, and lens inspection.
With its CMOS Shack Hartmann wavefront sensor and USB 3.0 connectivity, the WaveCamD is engineered for efficiency and ease of use. Its compact design and advanced capabilities make it an indispensable tool for professionals in the field of optics, providing reliable and accurate measurements that are crucial for maintaining the integrity and performance of optical systems.

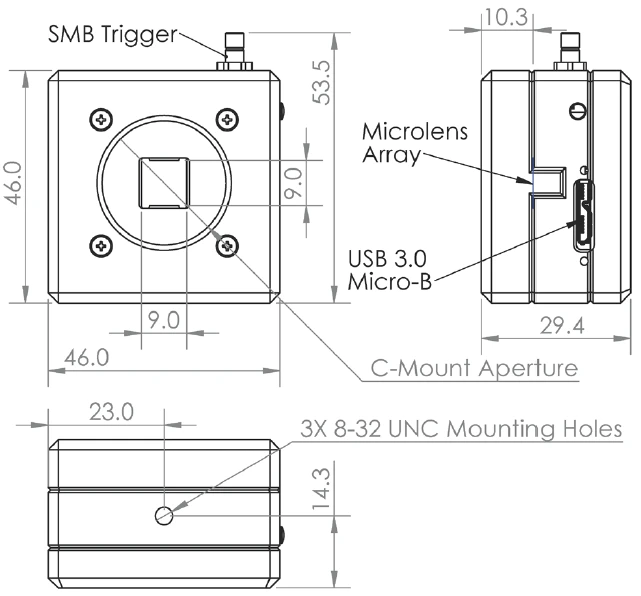

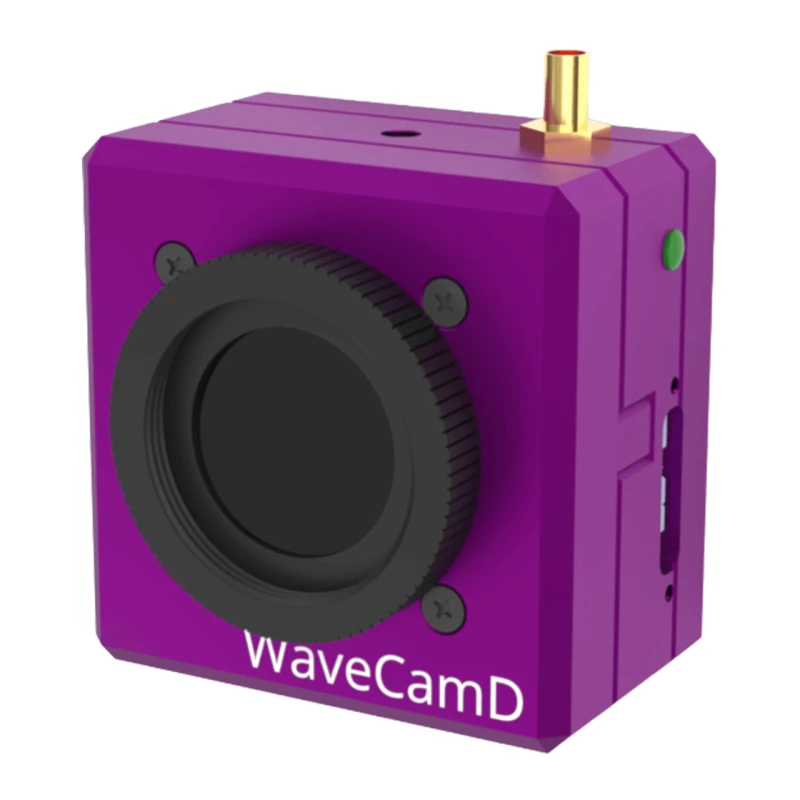

WaveCamD CMOS Shack Hartmann Wavefront Sensor with USB 3.0
Specifications
| Wavelength Range: | 355 – 1150 nm |
|---|---|
| # Pixels (Width): | 5.5 |
| # Pixels (Height): | 5.5 |
| Lenslet Pitch: | 150 um |
| Wavefront Accuracy: | <= lambda/30 |
| Type: | Shack Hartmann |
| Microlens Array Grid: | 60 x 60 lenslets |
| Microlens Array Size: | 9 x 9 mm |
| Focal Length: | 5.2 mm |
| Wavefront Sensitivity: | λ/100 |
| Resolution: | 4.2 MPixel |
| USB Version: | USB 3.0 |
| Signal To RMS Noise Ratio: | 2,500:1 |
| Shutter Speed: | 85 µs to 2 sec |
| ADC: | 12-bit |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High-Resolution Wavefront Measurements: Utilizes a Shack Hartmann wavefront sensor with a 60 x 60 microlens array (MLA) for detailed 2D wavefront representation from 355-1150 nm.

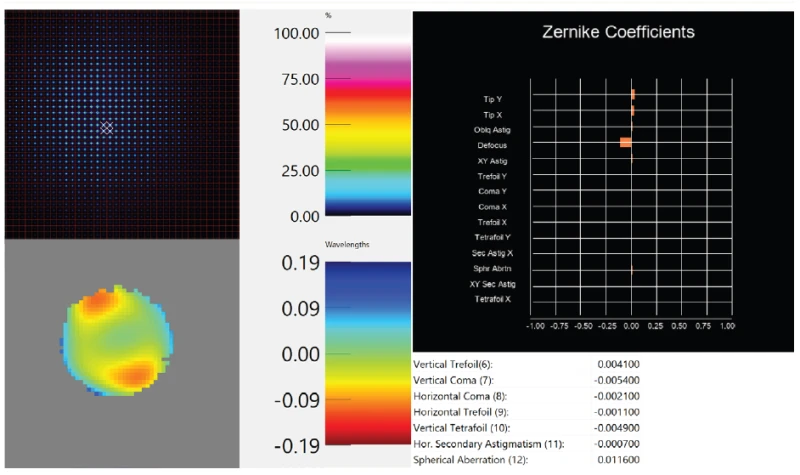

- Flexible Reconstruction Methods: Offers both zonal (numerical) and modal (Zernike polynomial) wavefront reconstruction for versatile characterization.
- Comprehensive Software Package: Includes DataRay’s full-featured software with no license fees, unlimited installations, and free updates.
- Wide Application Range: Ideal for CW and pulsed wavefront measurements, beam alignment, collimation, and lens inspection.
- Advanced System Features:
- UV (250-450 nm), VIS (400-900 nm), and NIR (750-1350 nm) compatibility
- 9 x 9 mm AR coated microlens array with 150 µm pitch and 5.2 mm focal length
- λ/30 wavefront accuracy and λ/100 sensitivity
- 5.5 µm pixels with 4.2 MPixel resolution
- Port-powered USB 3.0 connectivity
- HyperCal™ – Dynamic Noise and Baseline Correction software
- C-mount or MagND filter options
- 2,500:1 Signal to RMS Noise ratio
- Global shutter with TTL trigger
- Electronic auto-shutter ranging from 85 µs to 2 sec (44 dB)
- 12-bit ADC for precise data conversion
- Compatible with DataRay LaserLink for HTTP communication
Applications
- One-shot wavefront measurements
- Beam collimation
- Real-time beam alignment
- Aberration characterization
Frequently Asked Questions
What is the WaveCamD wavefront sensor?
What applications is the WaveCamD Shack Hartmann wavefront sensor suitable for?
What are the key features of the WaveCamD's microlens array?
What is the wavefront accuracy and sensitivity of the WaveCamD wavefront sensor?
What reconstruction methods does the WaveCamD wavefront sensor support?
What are the connectivity and software features of the WaveCamD?
What is the signal to noise ratio of the WaveCamD Shack Hartmann wavefront sensor?
