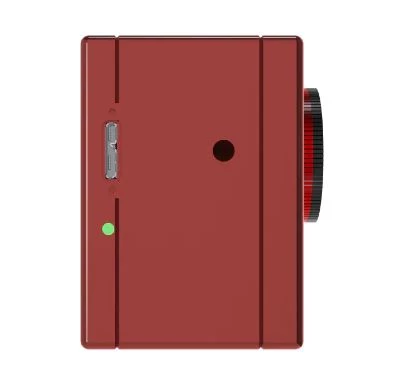

Thumbnail of WinCamD-IR-BB - VOx Microbolometer MWIR Beam Profiler photo 1

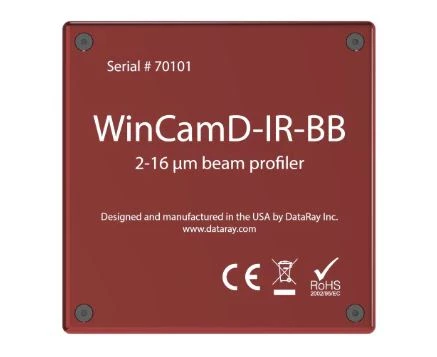

Thumbnail of WinCamD-IR-BB - VOx Microbolometer MWIR Beam Profiler photo 2

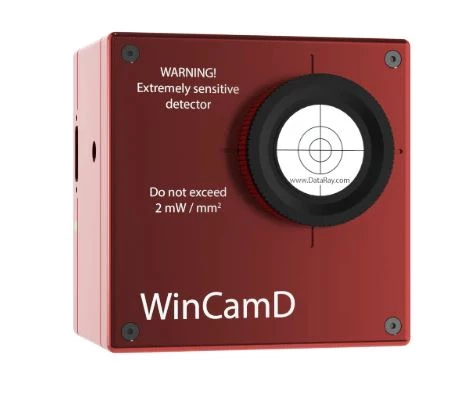

Thumbnail of WinCamD-IR-BB - VOx Microbolometer MWIR Beam Profiler photo 3

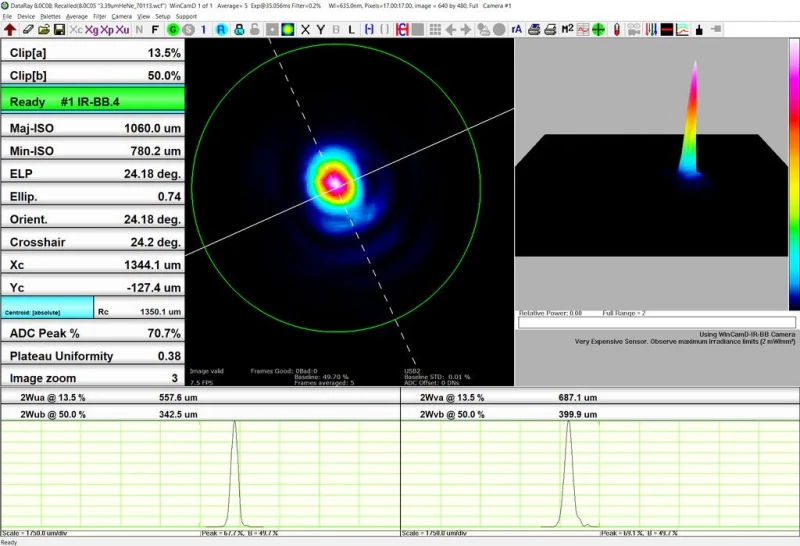

Thumbnail of WinCamD-IR-BB - VOx Microbolometer MWIR Beam Profiler photo 4

Description

The WinCamD-IR-BB laser beam profiler is an imaging solution for lasers in the MWIR and FIR range. With 17 µm pixels, a wavelength range of 2-16 µm, and an integrated shutter, the WinCamD-IR-BB beam profiler offers unparalleled beam profiling capabilities.

With a signal-to-noise ratio that exceeds 1000:1, the WinCamD-IR-BB can make ISO11146 compliant beam measurements. The microbolometer-based camera features very high sensitivity, and the integrated shutter allows for fully automated non-uniformity correction.

The WinCamD-IR-BB laser beam profiler is supported by DataRay’s full-featured, highly customizable, user-centric software which has no license fees, unlimited installations, and free software updates. The software supports M^2 measurements using our M2DU stages.

For higher power lasers, DataRay offers a range of sampling, absorbing, and reflecting attenuators for use with beam powers exceeding the camera’s maximum power limits.

Note: This product requires 64-bit Windows 7, 8/8.1, or 10

WinCamD-IR-BB - VOx Microbolometer MWIR Beam Profiler

Visit the DataRay Inc. Store

Specifications

Sensor Type: Microbolometer
Measurable Sources: CW, Pulsed
Wavelength Range: 2000 – 16000 nm
# Pixels (Width): 640
# Pixels (Height): 480
Pixel Size (Width): 17 um
Pixel Size (Height): 17 um
Max Full Frame Rate: 30 Hz
ADC: 14-bit
Part Number (USA): S-WCD-IR-BB-30
Part Number (Export): S-WCD-IR-BB-7.5

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Broadband 2 to 16 µm VOx microbolometer
  • 640 x 480, 10.88 x 8.16 mm active area
  • 17 µm pixels
  • Port-powered USB 3.0, 3 m screw locking cable
  • 30 FPS update rate (7.5 FPS for export)
  • Integrated shutter for automated NUC
  • 14-bit ADC
  • 14 ms time constant – Pulsed lasers with PRR = 1 kHz appear as CW
  • No chopper/TEC
  • Parallel capture on multiple cameras
  • M² measurements

Applications

  • Beam propagation analysis
  • Beam divergence measurements
  • Focus finding
  • MWIR/FIR/CO₂ laser profiling
  • Field servicing of MWIR/FIR/CO₂ lasers and laser-based systems
  • Optical assembly & instrument alignment
  • Beam wander & logging
  • M² measurement with available M2DU stage

Frequently Asked Questions

What is the wavelength range of the WinCamD-IR-BB laser beam profiler?
The WinCamD-IR-BB laser beam profiler has a wavelength range of 2-16 µm.
What is the signal-to-noise ratio of the WinCamD-IR-BB laser beam profiler?
The WinCamD-IR-BB laser beam profiler has a signal-to-noise ratio that exceeds 1000:1.
What is the pixel size of the WinCamD-IR-BB laser beam profiler?
The WinCamD-IR-BB laser beam profiler has 17 µm pixels.
Does the WinCamD-IR-BB laser beam profiler come with software?
Yes, the WinCamD-IR-BB laser beam profiler is supported by DataRay’s full-featured, highly customizable, user-centric software which has no license fees, unlimited installations, and free software updates.
What is the maximum power limit for the WinCamD-IR-BB laser beam profiler?
For higher power lasers, DataRay offers a range of sampling, absorbing, and reflecting attenuators for use with beam powers exceeding the camera’s maximum power limits. Contact support@dataray.com for further information.

Got more questions? Use the inquiry form to ask the supplier directly.
