This is a Large Laser Beam Profiling System offered directly by DataRay, Inc.
The Large Beam Profiling System is a complete solution for measuring large beams by illuminating a rotating diffusely reflective surface with the beam and using a high quality lens to reimage the intensity distribution onto the camera sensor.
The LBPS laser beam profiler overcomes typical problems with this method by eliminating the effect of speckle, calculating an accurate pixel multiplication factor, and correcting for geometric beam distortion.
Large Beam Profiling – Up to 200 mm Diameter. The LBPS is compatible with DataRay’s full featured, highly customizable, user-centric software which has no license fees, unlimited installations, and free software updates. The sensor used in the LBPS is DataRay’s flagship WinCamD-LCM beam profiling camera; the LBPS extends its capabilities to measure large beams.

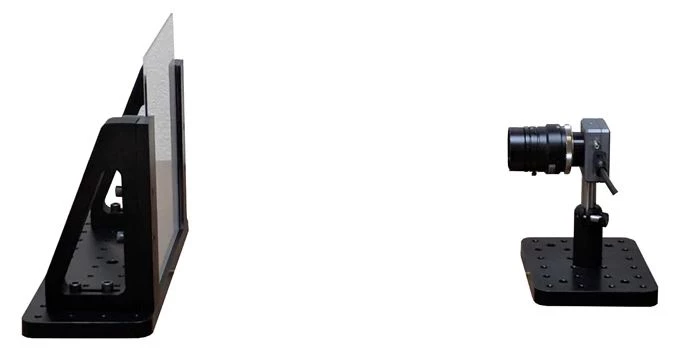

Large Beam Profiling System (LBPS) - 200 x 200mm
Specifications
| Sensor Type: | CMOS |
|---|---|
| Measurable Sources: | CW, Pulsed |
| Wavelength Range: | 355 – 1150 nm |
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 2048 |
| Pixel Size (Width): | 5.5 um |
| Pixel Size (Height): | 5.5 um |
| Max Full Frame Rate: | 12 Hz |
| ADC: | 12-bit |
| Image Plane (sensor): | 4.2 MPixel, 2048 x 2048 pixels, 11.3 x 11.3 mm active area | 5.5 μm pixel size |
| Reimaging Lens: | 12.5 mm focal length, f/1.4-f/16 |
| Object Plane: | 200 x 200mm transmissive screen |
| Frame Rates: | 12 fps 2048 x 2048 | 30 fps 1024 x 1024 | 60 fps 512 x 512 |
| Analog To Digital Converter: | 12 bit |
| Part Number: | LBPS-TS-200-LCM |
Download Data Sheet
Features
- Large Wavelength range covering from 355 to 1150 nm
- Rotating laminate disk to eliminate the effect of speckle due to interference of waves
- HyperCal™ – Dynamic Noise and Baseline Correction software
- 2,500:1 Signal to RMS Noise
- Global shutter with optical and TTL trigger
- Electronic auto-shutter, 79 µs to 2 sec (34dB)
- 12-bit ADC
- Window-free sensors standard for no fringing
Applications
- Large beam laser profiler
- Full intensity distribution analysis
- Major/minor diameter measurement
Frequently Asked Questions
What is the Large Beam Profiling System (LBPS)?
The LBPS is a complete solution for measuring large laser beams by illuminating a rotating diffusely reflective surface with the beam and using a high quality lens to reimage the intensity distribution onto the camera sensor.
What is the diameter of the beams that can be analyzed using the LBPS?
The LBPS can analyze beams up to 200 mm in diameter.
What is HyperCal™ software?
HyperCal™ is a dynamic noise and baseline correction software used in the LBPS to ensure accurate measurements.
What is the sensor used in the LBPS?
The LBPS uses DataRay’s flagship WinCamD-LCM4 beam profiling camera.
Is the LBPS compatible with customizable software?
Yes, the LBPS is compatible with DataRay’s full-featured, highly customizable, user-centric software which has no license fees, unlimited installations, and free software updates.
