Description
BeamPro is the most comprehensive range of laser beam prolers available on the market. All the cameras have been carefully qualied and selected by laser experts to successfully address any beam proling requirement, based on decisive criteria like pixel size, detection area, wavelength range, compactness or budget. Powered by a dedicated full-featured, automatically updated, beam proling software, BeamPro is a high-performance, user-friendly and tailored solution, delivering reliable and reproducible measurements for any application.

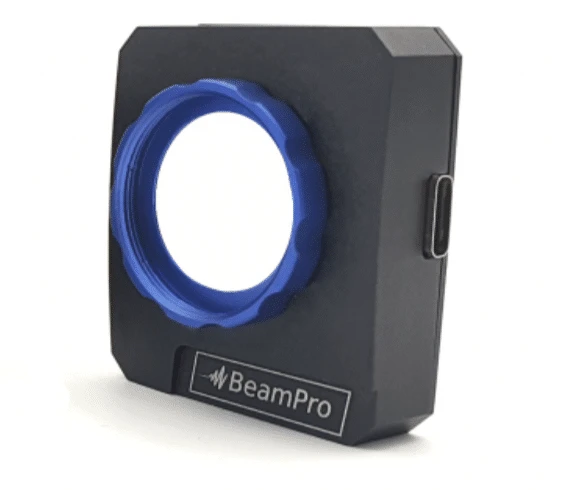

BeamPro | Small Pixel Laser Beam Profiler
Specifications
| Sensor Type: | CMOS |
|---|---|
| Measurable Sources: | CW, Pulsed |
| Wavelength Range: | 375 – 1100 nm |
| # Pixels (Width): | Not Specified |
| # Pixels (Height): | Not Specified |
| Pixel Size (Width): | 1.45 um |
| Pixel Size (Height): | 1.45 um |
| Max Full Frame Rate: | Not Specified |
| ADC: | Other |
Download Data Sheet
Features
- Wide Model Selection: Includes options for small pixel sizes (down to 1.4 µm), large detection areas (up to 30 mm in diameter), and ultra-compact footprints (as thin as 15 mm).
- Comprehensive Spectral Range: Models cover wavelengths from 190 nm (UV option) to 1700 nm (SWIR range), ensuring compatibility with diverse laser sources.
- Robust Performance: Delivers high dynamic range, exceptional signal-to-noise ratio, and reliable measurements under challenging conditions.
- Advanced Software Integration: Powered by STAR software with live beam property extraction, ISO-compliant calculations, and a client-server interface for remote control.
Applications
- Beam Diagnostics: Optimized for laser characterization in R&D, manufacturing, and quality control.
- Advanced Scientific Research: Ideal for precise profiling in spectroscopy, imaging, and photonics.
- Industrial Applications: Robust solutions for high-power laser measurements and alignment.
Frequently Asked Questions
What is BeamPro?
BeamPro is a comprehensive range of laser beam profilers designed to address diverse profiling needs with options tailored to pixel size, detection area, and budget.
What are the key features of BeamPro?
Includes small pixels (down to 1.4 µm), large areas (up to 30 mm), SWIR range (400–1700 nm), and compact designs (<15 mm thickness).
What customization options are available?
Options include UV extension (190 nm), ND filters (OD1-OD4), windowless models, HDR, vacuum compatibility, and trigger/sync features.
How does the STAR software enhance BeamPro’s usability?
STAR software offers live beam property extraction, ISO-compliant calculations, remote control capabilities, and advanced logging features.
What applications is BeamPro best suited for?
Applications include beam diagnostics, advanced scientific research, industrial laser profiling, and high-power laser alignment.
How compact is BeamPro?
BeamPro models are highly compact, with footprints as small as 33 x 29 x 10 mm, enabling easy integration into any setup.
