Description
BeamPro is the most comprehensive range of laser beam prolers available on the market. All the cameras have been carefully qualied and selected by laser experts to successfully address any beam proling requirement, based on decisive criteria like pixel size, detection area, wavelength range, compactness or budget.
Powered by a dedicated full-featured, automatically updated, beam proling software, BeamPro is a high-performance, user-friendly and tailored solution, delivering reliable and reproducible measurements for any application.

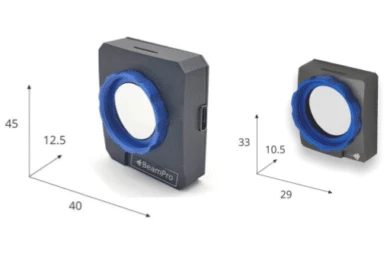

BeamPro | Compact Footprint Laser Beam Profiler
Specifications
| Sensor Type: | CMOS |
|---|---|
| Measurable Sources: | CW, Pulsed |
| Wavelength Range: | 375 – 1100 nm |
| # Pixels (Width): | 1.45 |
| # Pixels (Height): | 1.45 |
| Pixel Size (Width): | 1.45 um |
| Pixel Size (Height): | 1.45 um |
| Max Full Frame Rate: | Not Specified |
| ADC: | Other |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Comprehensive Profiling: Offers a wide range of models for various beam sizes (10–30 mm) and spectral ranges (190–1700 nm).
- Compact and Flexible Design: Ultra-thin models (<15 mm) with USB 3.1 or optional GigE connectivity.
- High Precision: Pixel sizes as small as 1.40 µm with CMOS and InGaAs sensors for detailed profiling.
- Dynamic Range Options: HDR and synchronization options for enhanced performance.
- Powerful Software: Live beam analysis, ISO-compliant calculations, advanced background treatment, and easy data export.
Applications
- Laser System Alignment and Optimization: Ensures precise alignment and performance tuning in laser systems for industrial, medical, and research applications.
- Beam Quality Analysis: Evaluates beam profiles for quality assurance in manufacturing and laser-based processes.
- Ultrafast Laser Development: Measures pulse shapes and profiles in femtosecond and picosecond lasers for scientific research.
- Optical System Testing: Analyzes beam characteristics in optical components and systems, such as lenses, mirrors, and fiber optics.
- Spectroscopy and Microscopy: Supports beam shaping and quality control in spectroscopy and high-resolution microscopy applications.
- Remote Sensing and LIDAR: Profiles laser beams for environmental monitoring, geospatial mapping, and autonomous systems.
- Photonics and Semiconductor Testing: Validates beam parameters in photonic devices and semiconductor inspection systems.
Frequently Asked Questions
What is BeamPro?
BeamPro is a comprehensive range of laser beam profilers designed for precise beam profiling requirements.
What is the smallest pixel size available in BeamPro models?
BeamPro models offer pixel sizes as small as 1.40 µm.
What is the spectral range supported by BeamPro?
BeamPro supports a spectral range from 190 nm (with UV option) to 1700 nm.
What beam diameters can BeamPro measure?
Beam diameters from 10 mm up to 30 mm can be measured, depending on the model.
What is the thickness of the compact BeamPro models?
Compact BeamPro models have a thickness of less than 15 mm.
What types of sensors are used in BeamPro models?
BeamPro uses CMOS and InGaAs sensors with up to 16-bit depth for high precision and reliability.
What are some optional features of BeamPro?
Optional features include UV extension, additional ND filters (OD1–OD4), HDR, and vacuum-compatible versions.
What is the purpose of BeamPro's STAR software?
The STAR software provides live beam analysis, ISO-compliant calculations, advanced background treatment, and easy data export.
