Description

Updated with USB3 connectivity and other improvements, the BladeCam2™ offers an enhanced BladeCam™ beam profiling experience. With pixel size to 3.2 µm, the high resolution and highly compact BladeCam2™ beam profilers have a thickness of only 0.50” (12.84 mm) for insertion into tight optical trains and OEM applications.

The BladeCam2™ is paired with DataRay’s full featured, highly customizable, user-centric software which has no license fees, unlimited installations, and free software updates. It is perfect for applications including CW laser profiling; field servicing of laser systems; optical assembly; instrument alignment; beam wander and logging; R&D; OEM integration; quality control; and M2 measurement with available M2DU stage.

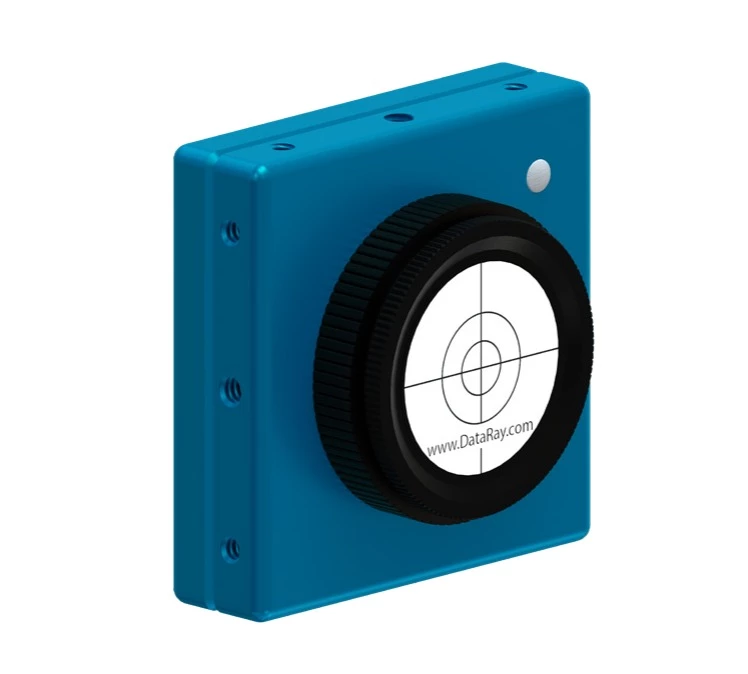

BladeCam2-HR – ½" CMOS Beam Profiler System

Visit the DataRay Inc. Store

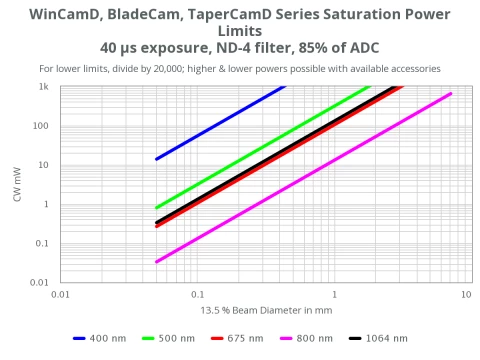

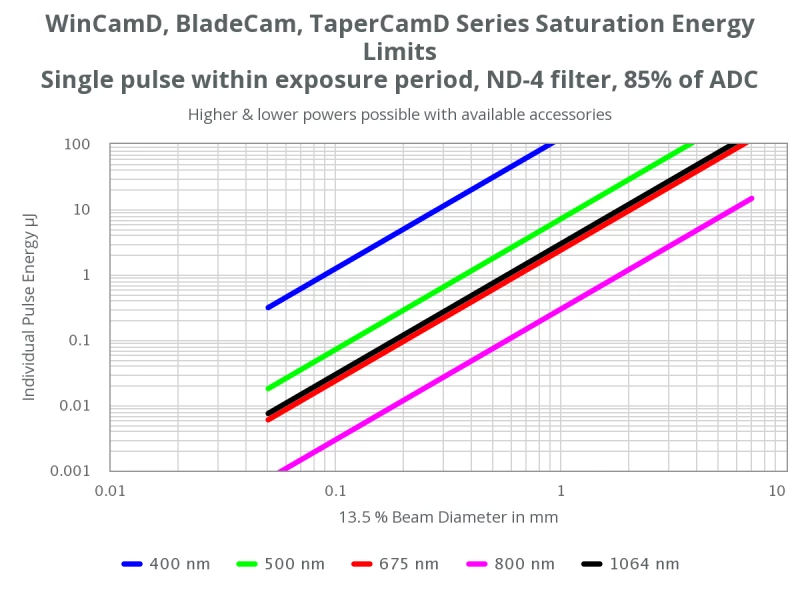

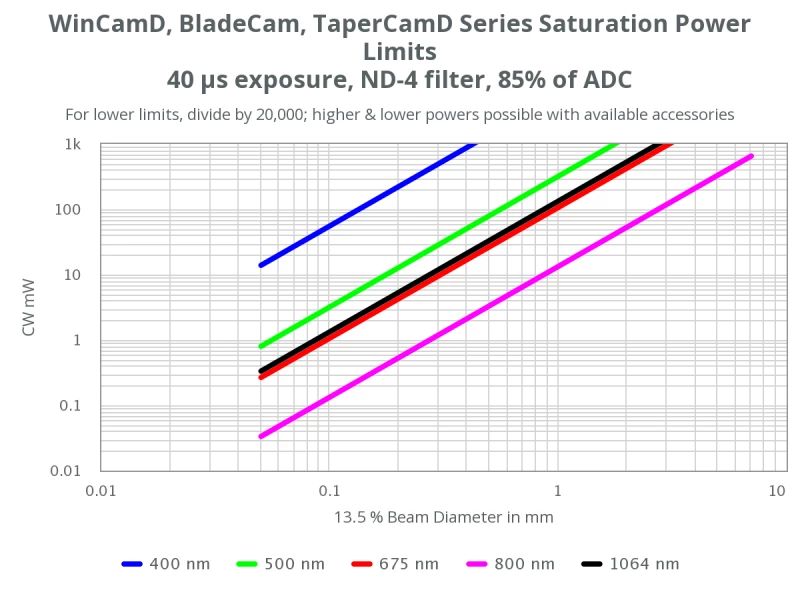

Specifications

Sensor Type: CMOS
Measurable Sources: CW
Wavelength Range: 355 – 1150 nm
# Pixels (Width): 1280
# Pixels (Height): 1024
Pixel Size (Width): 5.2 um
Pixel Size (Height): 5.2 um
Max Full Frame Rate: 16 Hz
ADC: 10-bit
Shutter Type: Rolling
Min. Beam (10 Pixels): ~52 µm
Max. Full Frame Rate: ≥9 Hz
Signal To RMS Noise: 1,000:1
Opt./Elec.: 30/60 dB
Dynamic Range: 41 dB
Certification: RoHS, WEEE, CE
Multiple Cameras: Up to 4 cameras, parallel capture. 1 to 8 cameras, serial capture.
Head Dimensions (W X H X D): 46 x 46 x 16.5 mm
Optical Depth From Housing/filter To Sensor (no Window) ±0.2 Mm: approximately 5.25/10.25mm
Mounting: 4-40, 6-32, and M3 mounting points
Weight, Camera Head: 85 g (3 oz)
Minimum PC Requirements: Windows 7/8/8.1/10 64-bit, 4 GB RAM, USB 2.0/3.0 port
Included Filters: C-mount ND-1, ND-2, and ND-4. Filter options for 190-1,350nm and 1,480-1,610nm also available.

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 355 to 1150 nm, standard CMOS detector
  • 1.3 Mpixel‚ 1280 x 1024 pixels, 6.6 x 5.3 mm active area
  • 5.2 µm pixels
  • HyperCal™ – Dynamic Noise and Baseline Correction software
  • Port-powered USB 3.0; flexible screw locking 3 m cable; no power brick
  • 10-bit ADC
  • Window-free sensors standard for no fringing
  • Electronic auto-shutter, 40 µs to 500 ms
  • 1,000:1 SNR (30/60 dB Optical/Electrical)
  • Field-replaceable image sensors
  • M² option – beam propagation analysis, divergence, focus

Applications

  • CW laser profiling
  • Field servicing of lasers and laser-based systems
  • Optical assembly & instrument alignment
  • Beam wander & logging
  • M² measurement with available M2DU stage

Frequently Asked Questions

What is the pixel size of the BladeCam2-HR beam profiler?
The pixel size of the BladeCam2-HR beam profiler is 3.2 µm.
What is the thickness of the BladeCam2-HR beam profiler?
The BladeCam2-HR beam profiler has a thickness of only 0.50" (12.84 mm).
What are some applications of the BladeCam2-HR beam profiler?
The BladeCam2-HR beam profiler is suitable for applications such as CW laser profiling, field servicing of laser systems, optical assembly, instrument alignment, beam wander and logging, R&D, OEM integration, quality control, and M2 measurement with available M2DU stage.
Does the BladeCam2-HR beam profiler come with software?
Yes, the BladeCam2-HR beam profiler is paired with DataRay's full featured, highly customizable, user-centric software which has no license fees, unlimited installations, and free software updates.
What is the connectivity option for the BladeCam2-HR beam profiler?
The BladeCam2-HR beam profiler is updated with USB3 connectivity.

Got more questions? Use the inquiry form to ask the supplier directly.
