Description

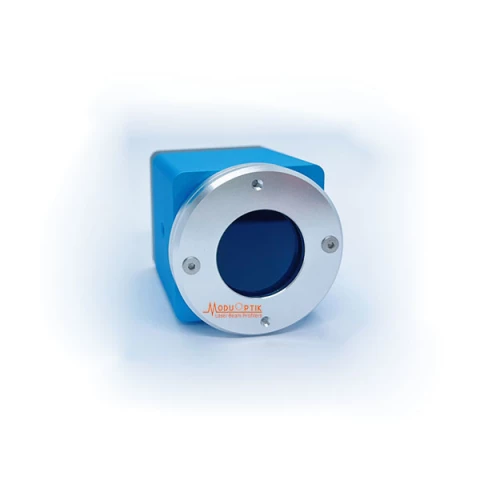

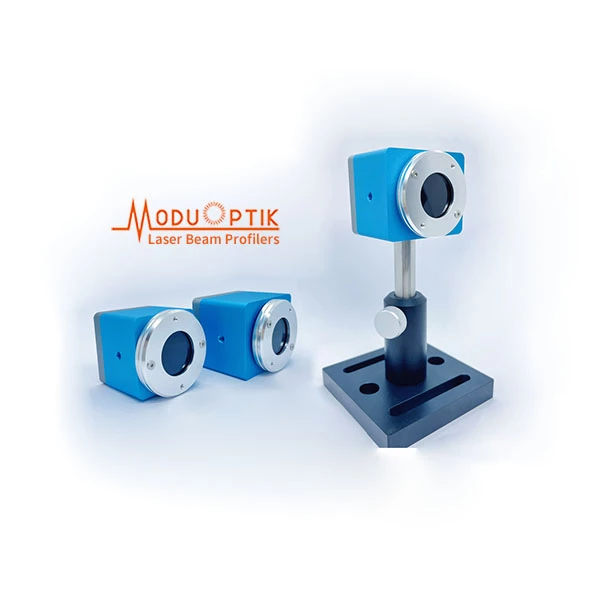

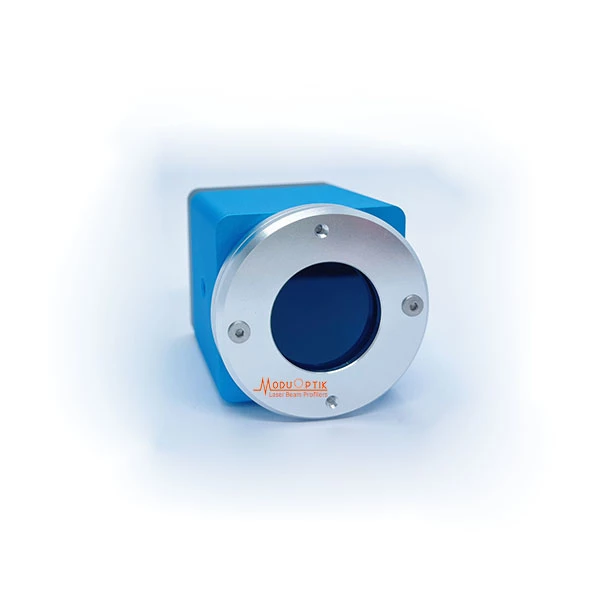

The laser beam profiler can be used to analyze the laser beam in multiple dimensions by using the camera and analysis software.

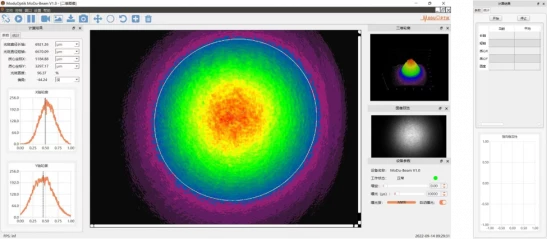

ModuOptik’s laser beam profiler can accurately analyze the size, roundness, energy distribution, center of mass and pointing stability of the laser beam. Professional industrial cameras are selected to ensure the stability and reliability of the product. Humanized software design improves the human-computer interaction experience.

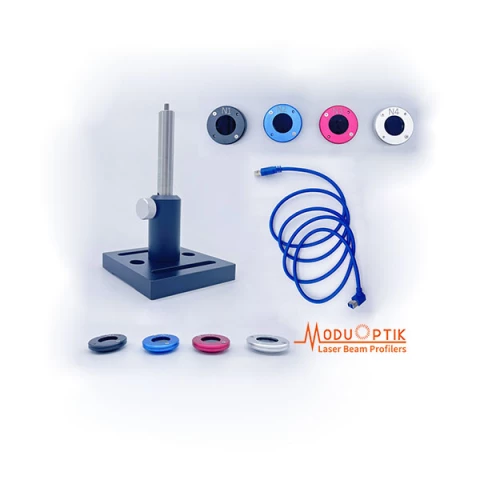

We also provide a wide range of modular accessories to control beam power, wavelength, size, each module can be easily installed and removed.
ModuOptik - Beam Profiler (CMOS）
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| Measurable Sources: | CW, Pulsed |
| Wavelength Range: | 350 – 1200 nm |
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 2048 |
| Pixel Size (Width): | 5.5 um |
| Pixel Size (Height): | 5.5 um |
| Max Full Frame Rate: | 60 Hz |
| ADC: | 8-bit, 10-bit, 12-bit |
| Optical Format: | 1" (1/1.2 and 1/2.5 available) |
| Shutter Type: | Global |
| Connector: | USB-B 3.0 |
Applications
Measurement of beam size, energy distribution, roundness, centroid, directivity
Frequently Asked Questions
A laser beam profiler is used to analyze the laser beam in multiple dimensions.
The ModuOptik laser beam profiler can analyze the size, roundness, energy distribution, center of mass, and pointing stability of the laser beam.
Professional industrial cameras are selected for the ModuOptik laser beam profiler to ensure stability and reliability.
The software design of the ModuOptik laser beam profiler is humanized, which enhances the human-computer interaction experience.
Yes, ModuOptik provides a wide range of modular accessories to control beam power, wavelength, and size. Each module can be easily installed and removed.
