CMOS Beam Profiler
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2023
Description

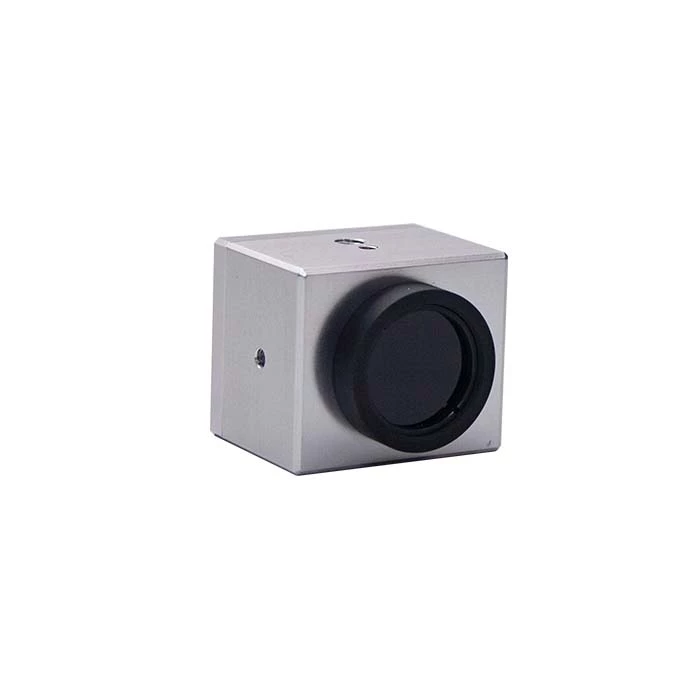

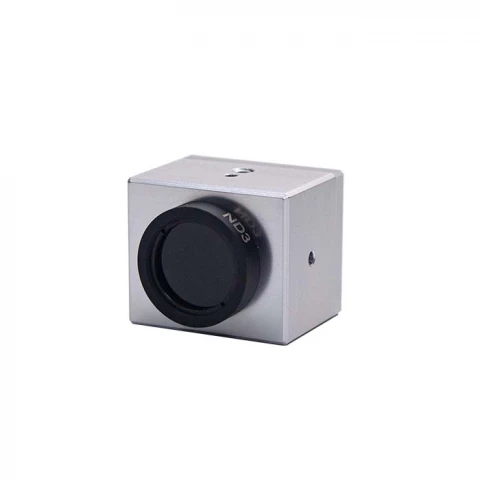

The XOA-8407#BEAMPROFILER is an advanced tool designed to detect beam shape and measure intensity distribution at a cross-section. This series of beam profilers utilizes CMOS camera technology, offering a wavelength range of 350-1200 nm. With three available sensor sizes—1/1.2", 1", and 1/2.5"—the XOA-8407 series provides flexibility to suit various measurement needs. Capable of handling a maximum power of 1W with a 0.1% attenuator, these beam profilers deliver precise measurements of laser beam size, roundness, energy distribution, center of mass, and pointing stability. The integration of a professional industrial camera ensures the product's stability and reliability, while the user-friendly software design enhances the human-machine interaction experience.
The XOA-8407 series is engineered to provide accurate and reliable measurements, making it an essential tool for professionals who require detailed analysis of laser beams. The compact size of the device makes it easy to carry, ensuring convenience for users who need to perform measurements in various locations. The professional software that accompanies the XOA-8407 series is designed for ease of operation, allowing users to quickly and efficiently conduct their analyses.
With its robust design and advanced features, the XOA-8407#BEAMPROFILER is an ideal choice for those seeking a high-performance solution for laser beam profiling. Whether you are measuring beam profile, circularity, center of mass, energy distribution, or pointing stability, the XOA-8407 series offers the precision and reliability needed to achieve accurate results.
CMOS Beam Profiler
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| Measurable Sources: | CW |
| Wavelength Range: | 350 – 1200 nm |
| ADC: | 8-bit |
| Model: | XOA-8407 |
| Light-sensitive Size: | 1″，1/1.2″，1/2.5″ |
| Sensor Type: | CMOS |
| Wavelength Range: | 350-1200 nm |
| Minimum Measurable Beam: | 55,26 um |
| Max. Measurable Power: | 1 W |
| Number Of Frames: | 60 |
Features
- Wide Wavelength Range: The XOA-8407 series beam profilers operate effectively within a wavelength range of 350-1200 nm, making them versatile for various applications.
- Multiple Sensor Sizes: Choose from three sensor sizes: 1/1.2", 1", and 1/2.5", to best suit your measurement needs.
- High Power Handling: Capable of measuring up to 1W with a 0.1% attenuator, ensuring accurate measurements even at higher power levels.
- Precision Measurements: Accurately measure beam size, roundness, energy distribution, center of mass, and pointing stability.
- Professional CMOS Cameras: Equipped with industrial-grade CMOS cameras for enhanced stability and reliability.
- Compact and Portable: Designed for easy transport and setup, making it convenient for on-site measurements.
- User-Friendly Software: Intuitive software design enhances the human-machine interaction experience, making operation straightforward and efficient.

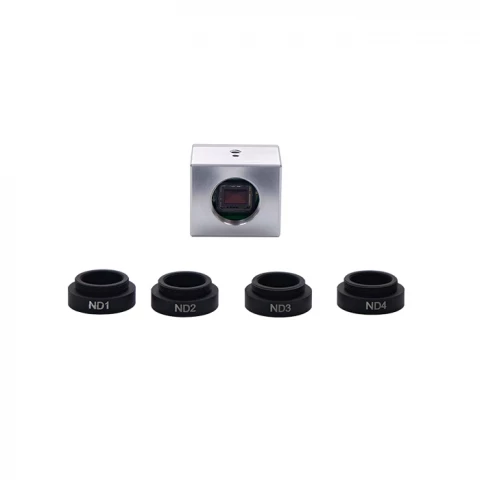

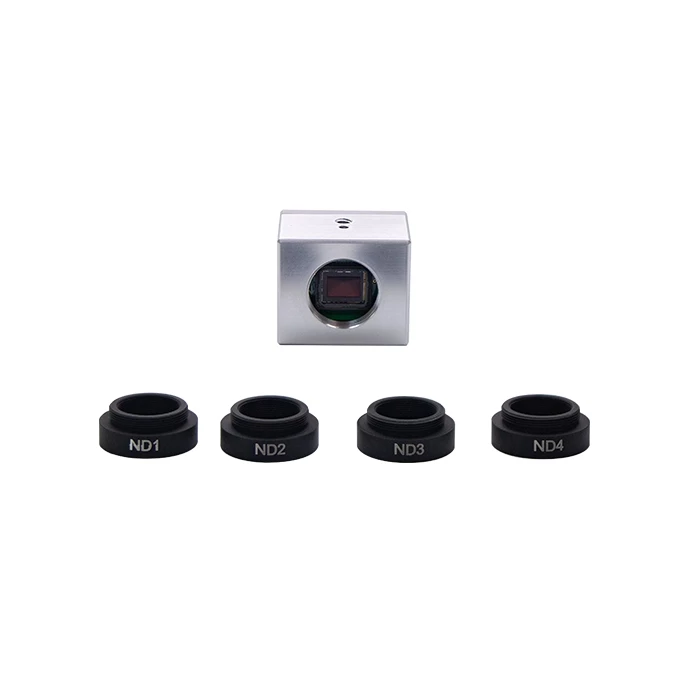

- Flexible Attenuation Options: Multiple attenuators available for flexible matching to various measurement conditions.
- High Frame Rate: Capture up to 60 frames per second, ensuring detailed and dynamic beam profiling.
Applications
- Measurement of laser beam profile: Analyze the shape and size of the laser beam to ensure optimal performance.
- Circularity: Assess the roundness of the laser beam for applications requiring precise beam shapes.
- Center of mass: Determine the central point of the beam's intensity distribution for accurate alignment.
- Energy distribution: Measure how energy is distributed across the beam's cross-section to optimize efficiency.
- Pointing stability: Monitor the stability of the beam's direction over time to maintain consistent targeting.
Frequently Asked Questions
A beam profiler is a device that can detect the shape of a laser beam and measure its intensity distribution at a cross-section.
The wavelength range of the XOA-8407 series beam profiler is 350-1200nm.
The XOA-8407 series beam profiler is available in three sensor sizes: 1/1.2", 1", and 1/2.5".
The XOA-8407 series beam profiler can handle a maximum power of 1W with a 0.1% attenuator.
The XOA-8407 series beam profiler can accurately measure the size, roundness, energy distribution, center of mass, and pointing stability of the laser beam.
