Description

Using the same sensor as the WinCamD-LCM (11.3 x 11.3 mm active area, 4.2 Mpixels, 5.5 x 5.5 µm pixels, global shutter), the WinCamD-GCM utilizes GigE Vision for longer range applications (cable lengths up to ~100m).

The WinCamD-GCM is paired with DataRay’s full-featured software which has no license fees, unlimited installations, and free software updates. It is perfect for applications including CW and pulsed laser profiling; field servicing of laser systems; optical assembly; instrument alignment; beam wander and logging; R&D; OEM integration; quality control; and M2 measurement with available M2DU stages.

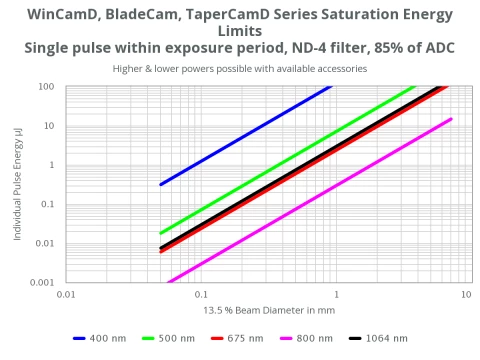

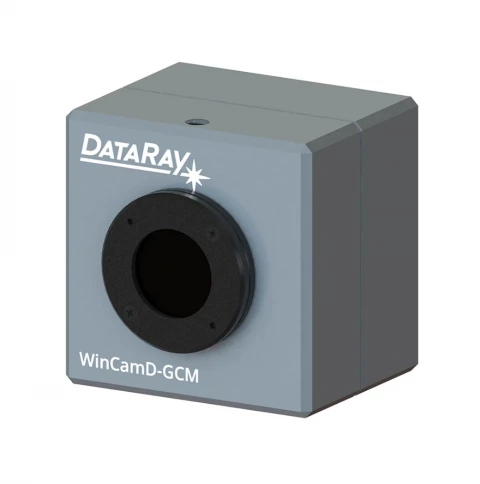

WinCamD-GCM 1" - GigE Vision CMOS Beam Profiling Camera

Visit the DataRay Inc. Store

Specifications

Sensor Type: CMOS
Measurable Sources: CW, Pulsed
Wavelength Range: 355 – 1150 nm
# Pixels (Width): 2048
# Pixels (Height): 2048
Pixel Size (Width): 5.5 um
Pixel Size (Height): 5.5 um
Max Full Frame Rate: 60 Hz
ADC: 12-bit
Mounting: 1/4
Head Dimensions (W X H X D): 67.2 x 67.2 x 54.0 mm
Multiple Cameras: Up to 4 cameras, parallel capture. 1 to 8 cameras, serial capture.
Certification: RoHS‚ WEEE‚ CE
Electronic Shutter Range: 40 μs to 2 sec (47 dB)
Signal To RMS Noise: 2,500:1 (34 dB optical / 68 dB electrical)
Max Single Pulse Capture PRR: 25 kHz
Shutter Type: Global
Min. Beam (10 Pixels): ~55 µm
Image Area: 11.3 x 11.3 mm
Optical Format: 1"
Other Wavelength Option (WinCamD-GCM-UV): 190 to 1,150 nm
Other Wavelength Option (WinCamD-GCM-TEL): 1,480 to 1,605 nm
Other Wavelength Option (WinCamD-GCM-1310): 355 to 1,350 nm (includes long pass filter)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • New MagND™ stackable magnetic ND filters – store spare filters on back of camera
  • 355 to 1150 nm, standard CMOS detector
  • Up to 60+ FPS
  • 4.2Mpixel, 2,048 x 2,048 pixels, 11.3 x 11.3 mm active area
  • 5.5 µm pixels
  • HyperCal™ – Dynamic noise and baseline correction software
  • Port-powered USB 3.0; flexible screw locking 3 m cable; no power brick
  • 12-bit ADC, on-board microprocessor
  • Window-free sensors standard for no fringing
  • 25,000:1 electronic auto-shutter, 40 μs to 2 sec (47 dB)
  • 2,500:1 SNR
  • Global shutter, optical/TTL trigger
  • Isolated pulse triggering and parallel capture
  • Field-replaceable image sensors
  • M² option – beam propagation analysis, divergence, focus

Applications

  • CW and pulsed laser profiling
  • Field servicing of lasers and laser-based systems
  • Optical assembly and instrument alignment
  • Beam wander and logging
  • M² measurement with available M2DU stage

Frequently Asked Questions

What is the active area and resolution of the WinCamD-GCM camera?
The WinCamD-GCM camera has an 11.3 x 11.3 mm active area and a resolution of 4.2 Mpixels (2048 x 2048 pixels).
What is the maximum cable length supported by the WinCamD-GCM camera?
The WinCamD-GCM camera supports cable lengths up to approximately 100 meters.
Does the WinCamD-GCM camera come with software?
Yes, the WinCamD-GCM camera is paired with DataRay's full-featured software, which has no license fees, unlimited installations, and free software updates.
What are the applications of the WinCamD-GCM camera?
The WinCamD-GCM camera is suitable for various applications including CW and pulsed laser profiling, field servicing of laser systems, optical assembly, instrument alignment, beam wander and logging, R&D, OEM integration, quality control, and M2 measurement with available M2DU stages.
Are there any additional features of the WinCamD-GCM camera?
Yes, the WinCamD-GCM camera features new MagND stackable magnetic ND filters, port-powered USB 3.0, hypercal dynamic noise and baseline correction software, global shutter with optical/TTL trigger, isolated pulse triggering and parallel capture, and field-replaceable image sensors.
