Description
BeamPro is the most comprehensive range of laser beam prolers available on the market. All the cameras have been carefully qualified and selected by laser experts to successfully address any beam profiling requirement, based on decisive criteria like pixel size, detection area, wavelength range, compactness or budget.
Powered by a dedicated full-featured, automatically updated, beam proling software, BeamPro is a high-performance, user-friendly and tailored solution, delivering reliable and reproducible measurements for any application.

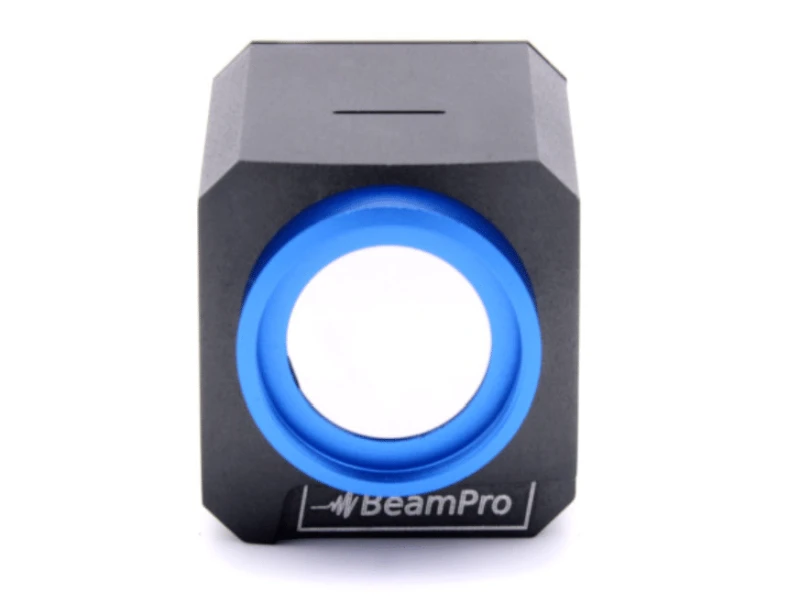

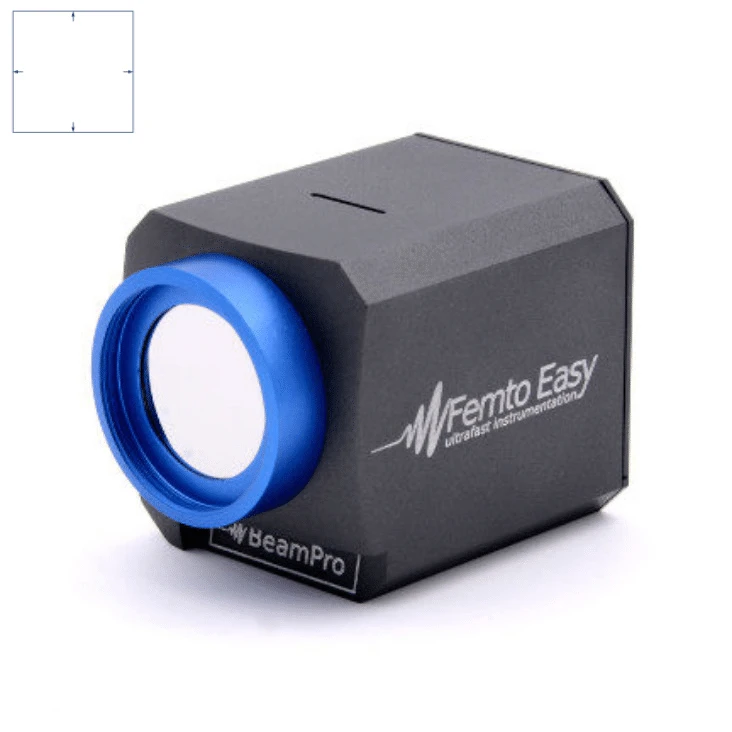

BeamPro | Large Area Laser Beam Profiler
Specifications
| Sensor Type: | CMOS, InGaAs |
|---|---|
| Measurable Sources: | CW, Pulsed |
| Wavelength Range: | 375 – 1100 nm |
| # Pixels (Width): | Not Specified |
| # Pixels (Height): | Not Specified |
| Pixel Size (Width): | 1.45 um |
| Pixel Size (Height): | 1.45 um |
| Max Full Frame Rate: | Not Specified |
| ADC: | Other |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Comprehensive laser beam profiling for diverse needs (pixel size, detection area, wavelength, budget).
- Models for small pixels (1.40 µm), large areas (up to 30 mm beams), compact designs (15 mm thickness), and SWIR range (400–1700 nm).
- Optional upgrades: UV extensions, ND filters, HDR, vacuum compatibility, and triggers.
- High-performance sensors (CMOS/InGaAs) with resolutions up to 20 MP and dynamic range enhancements.
- USB 3.1/GigE interfaces for fast connectivity.
- STAR software: fast, user-friendly, with free lifetime updates.
- Advanced analysis: live beam extraction, ISO-compliant calculations, and background noise correction.
- Remote control via network and logging for up to 10 acquisitions.
- Customizable 1-click export tools.
Applications
- Laser Manufacturing: Ensuring precise beam shaping and alignment in industrial laser systems.
- Scientific Research: Analyzing laser properties in advanced optics and photonics experiments.
- Medical Devices: Calibrating and optimizing beams in surgical and diagnostic laser equipment.
- Semiconductor Industry: Verifying laser quality for lithography and microfabrication processes.
- Telecommunications: Testing beam profiles for fiber-optic and free-space communication systems.
- Aerospace and Defense: Profiling high-energy laser systems for targeting and measurement.
- Education and Training: Demonstrating beam properties in academic and training settings.
Frequently Asked Questions
What is BeamPro used for?
BeamPro is a laser beam profiler designed for precise analysis of laser beams in various applications.
What are the key features of BeamPro?
Small pixel sizes (1.40 µm), large beam coverage (up to 30 mm), compact design, and SWIR compatibility (400–1700 nm).
Does BeamPro support UV wavelength profiling?
Yes, with the UV extension option, it can profile wavelengths as low as 190 nm.
What industries benefit from BeamPro?
Industries like manufacturing, medical, research, telecommunications, aerospace, and defense.
How does STAR software enhance profiling?
It provides fast live beam property extraction, ISO-compliant calculations, remote control, and customizable exports.
Can BeamPro operate in vacuum environments?
Yes, certain models offer vacuum-compatible versions for specialized applications.
What interface options are available for connectivity?
USB 3.1 and GigE interfaces ensure fast and reliable data transfer.
Is STAR software updated automatically?
Yes, STAR software comes with a free lifetime automatic update feature.
What is the dynamic range of BeamPro sensors?
The dynamic range can go up to 16 bits, with HDR options available for enhanced performance.
Can STAR software perform remote operations?
Yes, its client-server interface allows for remote control over the network.
Got more questions? Use the RFQ form to ask the supplier directly.
