VRN20-30-G DPSS Laser

Name: VRN20-30-G DPSS Laser
Brand: Lumibird
Availability: InStock

Description

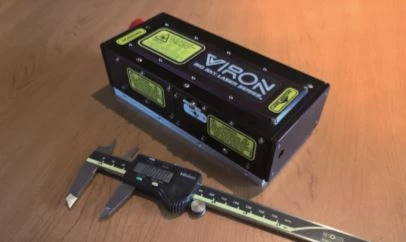

Ultra-compact pulsed diode pumped Nd:YAG laser.

Specifications

Avg. Power:	0.6 W
Wavelength:	1064 nm
Repetition Rate:	0.02 – 0.02 kHz
Spatial Mode (M^2):	Not Specified
Pulse Duration:	12 ns
Pulse-to-Pulse Stability (RMS):	1.5 %
Cooling:	Air

Download Data Sheet

Features

COMPACT PULSED DIODE-PUMPED SOLID-STATE LASER

LASER HEAD AND CONTROL ELECTRONICS INTEGRATED INTO ONE HOUSING

OPERATION REQUIRES ONLY AN EXTERNAL 24V DC STANDARD POWER SUPPLY

SEALED FOR OPERATION IN VARIOUS ENVIRONMENTS

EASY TO INTEGRATE

Add to Watchlist (My Watchlist)

Ships from:

France

Sold by:

Lumibird

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the VRN20-30-G DPSS Laser?

The VRN20-30-G DPSS Laser is an ultra-compact pulsed diode pumped Nd:YAG laser.

What are the features of the VRN20-30-G DPSS Laser?

The VRN20-30-G DPSS Laser features an integrated laser head and control electronics in one housing, requires only an external 24V DC standard power supply, and is sealed for operation in various environments. It is also easy to integrate.

What are the main applications of the VRN20-30-G DPSS Laser?

The main applications of the VRN20-30-G DPSS Laser include LIBS, biotechnology, and LIDAR.

What is the energy per pulse of the VRN20-30-G DPSS Laser?

The energy per pulse of the VRN20-30-G DPSS Laser is greater than 30 mJ.

What is the operating temperature range of the VRN20-30-G DPSS Laser?

The operating temperature range of the VRN20-30-G DPSS Laser is +15°C to +35°C.
