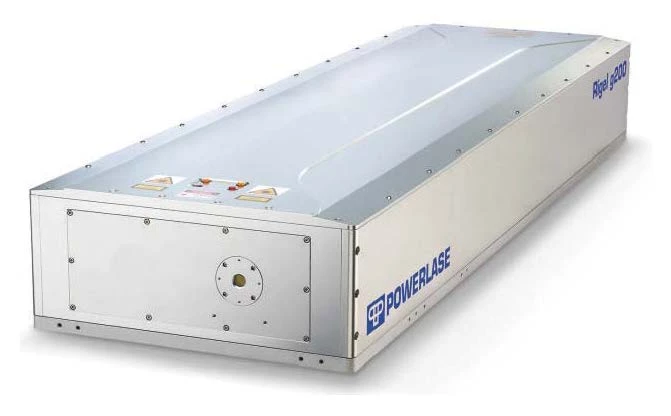

Rigel g200 High Power Diode Pumped Short Pulse Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2014
Description
Introducing the Rigel g200 High Power Diode Pumped Short Pulse Laser – a cutting-edge solution from Powerlase Photonics that stands at the forefront of laser technology. Engineered to deliver exceptional performance, the Rigel g200 is a Q-switched, intra-cavity frequency doubled laser, capable of achieving high average powers of up to 200W. This robust laser emits an unpolarized multi-mode beam at a precise wavelength of 532 nm, making it an ideal choice for various high-volume industrial applications.
The Rigel g200 is designed with a well-proven rugged head design, ensuring durability and reliability in demanding environments. Its state-of-the-art universal control system architecture allows for seamless integration and simple synchronization with OEM equipment and process lines. This makes the Rigel g200 not only powerful but also versatile, catering to the specific needs of industrial applications with ease.
With a commitment to excellence, the Rigel g200 offers unmatched stability and precision. Its advanced condition monitoring capabilities ensure consistent performance, while optional features such as fiber delivery and repetition frequency optimization provide flexibility and customization. The laser’s computer-controlled attenuation allows for precise control, enhancing its effectiveness in various processes.
Powerlase Photonics has crafted the Rigel g200 to meet the rigorous demands of modern industries, offering a reliable and efficient laser solution that drives productivity and innovation. Whether for photovoltaic processing, poly-silicon annealing, hard materials processing, or micro machining, the Rigel g200 delivers superior results, setting a new standard in laser technology.
Rigel g200 High Power Diode Pumped Short Pulse Laser
Specifications |
|
|---|---|
| Avg. Power: | 200 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 10 – 30 kHz |
| Spatial Mode (M^2): | 28 |
| Pulse Duration: | 75 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Water-to-Water |
| Pulse Energy: | 20 mJ |
| Divergence: | 6 mrad |
| Power Stability: | 0.5% |
| Typical Fibre Core: | 400 μm |
| Supply Voltage: | 3-phase N+E, 220 or 400 VAC (±10%) |
| Supply Frequency: | 50 or 60 Hz |
| Nominal Power Consumption: | 13 kVA |
| Gas Purge: | N2 or Air (Grade N5.0, <1 ppm THC) |
| Laser Dimensions: | 1600 x 500 x 215 mm |
| Control Rack Dimensions: | 1195 x 600 x 970 mm |
| Environmental Conditions Temp: | 15 - 32°C |
| Environmental Conditions RH: | <60% (90% max, non condensing) |
Features
- High Power Output: Achieve up to 200 W of average power with the Rigel g200, ideal for high-volume industrial applications.
- Q-Switched, Intra-Cavity Frequency Doubled Laser: Delivers high energy efficiency and performance with a wavelength of 532 nm.
- Pulse Energy: Capable of delivering pulse energy up to 20 mJ for demanding applications.
- Beam Quality: Features a multi-mode beam with an M2 value of 28, ensuring optimal performance for various applications.
- Excellent Stability: Provides exceptional power stability with a variation of only 0.5% (1σ).
- Condition Monitoring: Built-in monitoring systems ensure reliable operation and maintenance.
- Optional Fibre Delivery: Offers flexibility with optional round or square fibre delivery systems.
- Computer Controlled Attenuation: Allows precise control and adjustment of laser output for specific requirements.
- Optional Repetition Frequency Optimisation: Tailor the repetition frequency to match specific application needs.
- Robust Design: Features a rugged head design with a universal control system for easy integration with OEM equipment and process lines.
Applications
- Photovoltaic Processing
- Poly-Silicon Annealing
- Hard Materials Processing
- Micro Machining
- Ti:Sapphire Pumping
Frequently Asked Questions
The Rigel g200 DPSS Green Laser is a Q-switched, intra-cavity frequency doubled laser that delivers high average powers up to 200 W in an unpolarised multi-mode beam at a wavelength of 532 nm.
The Rigel g200 DPSS Green Laser is used for photovoltaic processing, poly-silicon annealing, hard materials processing, micro machining, and Ti:Sapphire pumping.
The pulse energy of the Rigel g200 DPSS Green Laser is up to 20 mJ.
The facility requirements for the Rigel g200 DPSS Green Laser include a supply voltage of 3-phase N+E, 220 or 400 VAC (±10%), a supply frequency of 50 or 60 Hz, a nominal power consumption of 13 kVA, cooling water of 20 litres/min at 11 - 17°C, and a gas purge of N2 or Air (Grade N5.0, <1 ppm THC).
The Rigel g200 DPSS Green Laser is a Class 4 laser product, and it is important to avoid eye or skin exposure to direct or scattered radiation.
