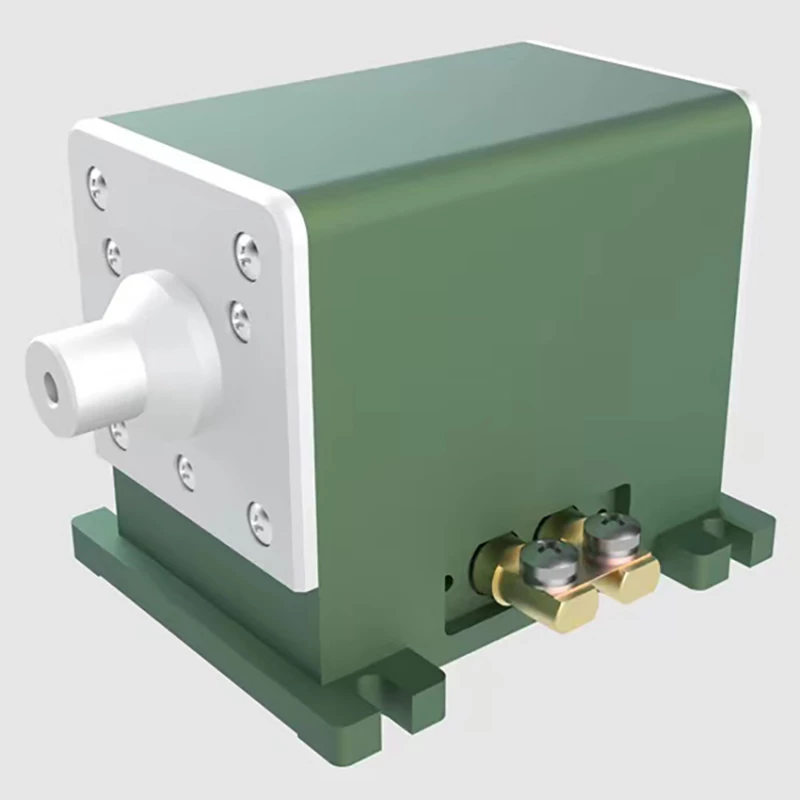

High power diode pumped Nd:YAG laser transmitter solutions

Name: High power diode pumped Nd:YAG laser transmitter solutions
Brand: DIGCO® Inc.
Availability: InStock

Description

Nd: YAG crystal material is widely used in industrial, medical, military and scientific research fields. Nd: YAG continues being as the best of the rare earth garnet materials that are characterized by four-level laser operation which permits low threshold pulse and CW operation. Nd:YAG application solutions including pump diode, laser rods/slabs and other optics can be supplied as requested.

Specifications

Avg. Power:	200 W
Wavelength:	1064 nm
Repetition Rate:	5 – 20 kHz
Spatial Mode (M^2):	1.2
Pulse Duration:	15 ns
Pulse-to-Pulse Stability (RMS):	5 %
Cooling:	Air

Download Data Sheet

Features

High gain

Low threshold

High efficiency

Low loss at 1.06μm

Good thermal conductivity

High anti-thermal shocking

Applications

Ideal for 1064nm Laser devices

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

DIGCO® Inc.

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the applications of Nd:YAG crystal laser solutions?

Nd:YAG crystal laser solutions are ideal for 1064nm Laser devices.

What are the features of Nd:YAG crystal laser solutions?

Nd:YAG crystal laser solutions have high gain, low threshold, high efficiency, low loss at 1.06μm, good thermal conductivity, and high anti-thermal shocking.

What are the optical specifications of Nd:YAG crystal laser solutions?

The refractive index at 1535nm is 1.530, the refractive index at d 589.3nm is 1.560, and the Abbe value is 66.

What are the thermal specifications of Nd:YAG crystal laser solutions?

The transformation temperature is 480ºC, the softening temperature is 520ºC, the coefficient of linear thermal expansion is 87 (10-7/K) from 20~100ºC, and the thermal conductivity at 25ºC is 0.75 W/m K.

What is the fluorescent lifetime of Nd:YAG crystal laser solutions?

The fluorescent lifetime of Nd:YAG crystal laser solutions changes with the erbium concentration, which is typically 0.13-1.3 x1020 /cm3 for LD pumped laser.
