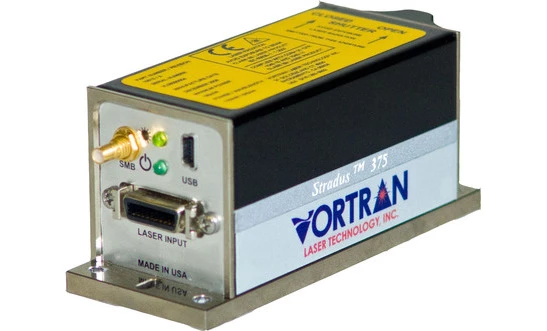

Stradus® 375-60 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The Stradus® 375-60 Diode Laser Module by Vortran Laser Technology, Inc. is a state-of-the-art laser solution designed for precision and reliability. This fully integrated, plug-and-play module is self-contained, allowing for seamless installation and operation. The Stradus® laser features a patented sealed optical cavity and innovative electronics, providing unmatched power stability, beam pointing stability, and minimal noise across varying conditions of time and temperature.
Vortran has equipped the Stradus® 375-60 with a Graphical User Interface (GUI) software, enabling users to control and monitor the laser module remotely via USB or RS-232 connections. This feature enhances the user experience by offering flexibility and convenience in managing the laser's performance. The laser's compact and self-contained design makes it ideal for various applications requiring precision and reliability.
This laser module is recognized for its excellent beam quality and low noise, making it a preferred choice for applications in medical, biomedical, and industrial fields. The Stradus® 375-60 supports both analog and digital modulation, ensuring versatility in its usage. With Vortran's commitment to continuous improvement, the Stradus® laser remains a top-tier choice for professionals seeking high-performance laser technology.
Stradus® 375-60 Diode Laser Module
Specifications |
|
|---|---|
| Spatial Mode: | TEM 00 |
| Beam Diameter: | ~1.2 mm (1/e2) |
| Beam Divergence: | ~0.5 mrad |
| M²: | < 1.25 |
| Pointing Stability: | < 5 µrad/⁰C |
| Power Stability: | < 0.5% (over 24 hours) |
| Polarization Orientation: | Vertical ±2⁰ |
| Polarization Extinction Ratio: | >100:1 |
| Input Power (Head): | 12V DC, 1.5A (max) |
| Input Power (Control Box): | 90‐250 VAC, 50/60Hz |
| Storage Temperature: | ‐10⁰C to +60⁰C |
| Operating Temperature: | +10⁰C to +45⁰C |
| Laser Head Weight: | 210g |
| Communication: | Mini‐USB and RS‐232 |
| CDRH Class: | Class IIIb |
| ESD Protection: | Class 4 |
| EU Compliance: | CE Mark Certified with control box |
| RoHS Compliance: | EU and China |
Features
- Wavelength: 375 ± 5 nm
- Power Output: 60 mW (‐0%, +10%)
- Spatial Mode: TEM 00
- Beam Diameter: ~1.2 mm (1/e2)
- Beam Divergence: ~0.5 mrad
- M² (typical): < 1.25
- Beam Circularity: > 90%
- Beam Centration: < 0.5 mm
- Beam Alignment: < 5 mrad
- Pointing Stability: < 5 µrad/°C
- Power Stability (over 24 hours): < 0.5%
- Polarization Orientation: Vertical ±2°
- Polarization Extinction Ratio: > 100:1
Applications
- Medical, Biomedical & Industrial Applications: The Stradus® diode laser module is ideal for use in medical, biomedical, and industrial settings due to its reliability and precision.
- Patented Sealed Optical Cavity: Ensures unparalleled power stability and beam pointing stability, providing consistent performance over time and temperature variations.
- Self-contained & Compact Design: The integrated and compact design allows for easy installation and operation, making it suitable for various applications.
- Excellent Beam Quality: The laser module provides superior beam quality, ensuring precise and accurate results in all applications.
- Low Noise Operation: With low RMS noise, the Stradus® laser module ensures minimal interference, ideal for sensitive applications.
- USB or RS-232 Interface with GUI: Offers easy connectivity and control through Vortran’s Graphical User Interface software, allowing remote monitoring and operation.
- Analog & Digital Modulation: Supports both analog and digital modulation for versatile operation across different applications.
- OEM Head or End-user Systems: Available as an OEM head or as part of a complete end-user system, providing flexibility for integration into existing setups.
Frequently Asked Questions
Stradus® lasers offer excellent beam quality with a spatial mode of TEM 00, beam diameter of ~1.2 mm, beam divergence of ~0.5 mrad, M² (typical) of < 1.25, beam circularity of > 90%, beam centration of < 0.5 mm, beam alignment of < 5 mrad, and pointing stability of < 5 µrad/⁰C.
Stradus® lasers offer both digital and analog modulation capabilities with a digital modulation of 200 MHz, digital rise time of < 2nsec, modulation depth of ∞ (full off), analog modulation of 500 kHz, and analog rise time of < 0.7 µs.
The Stradus® lasers are suitable for demanding applications in medical, biomedical, and industrial markets such as Flow Cytometry, Confocal Microscopy, SPIM, Neuroscience, and Optogenetics.
Stradus® lasers offer a Mini‐USB and RS‐232 communication interface with GUI software that allows the user to control and monitor the module remotely.
The power output of Stradus® lasers is 60 mW (‐0%, +10%).
