Description
The proprietary fam™ technology for tapered laser diodes results in the highest spatial and spectral brightness from a single emitter available in free-space, fiber-coupled and second harmonic versions.

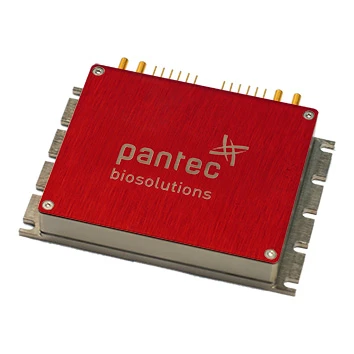

DLM-12 (980 nm) High Brightness Diode Laser Module
Specifications
| Wavelength: | 980 nm |
|---|---|
| Output Power (cw): | 12 W |
| Pulse Duration: | 50 µs - ∞ |
| Duty Cycle: | (0 - 100 %) |
| Mode Of Operation: | CW & Pulsed |
| Spectral Width (FWHM): | < 1 nm |
| M2 Factor: | < 2 |
| Polarization: | Random |
| Beam Diameter: | < 1 mm |
Download Data Sheet
Features
- Highest brightness
- High power
- Spectrally stabilized
- CW/Microsecond pulses
- Gaussian beam profile
Applications
Industrial application.
Frequently Asked Questions
What is the wavelength of the DLM-12 laser module?
The wavelength of the DLM-12 laser module is approximately 980 nm.
What is the output power of the DLM-12 laser module?
The DLM-12 laser module has an output power of 12 W.
What is the duty cycle of the DLM-12 laser module?
The duty cycle of the DLM-12 laser module is adjustable from 0% to 100%.
What is the weight of the DLM-12 laser module?
The DLM-12 laser module weighs approximately 250 g.
What is the operating temperature range of the DLM-12 laser module?
The DLM-12 laser module can operate within a temperature range of 15°C to 30°C.
