Description

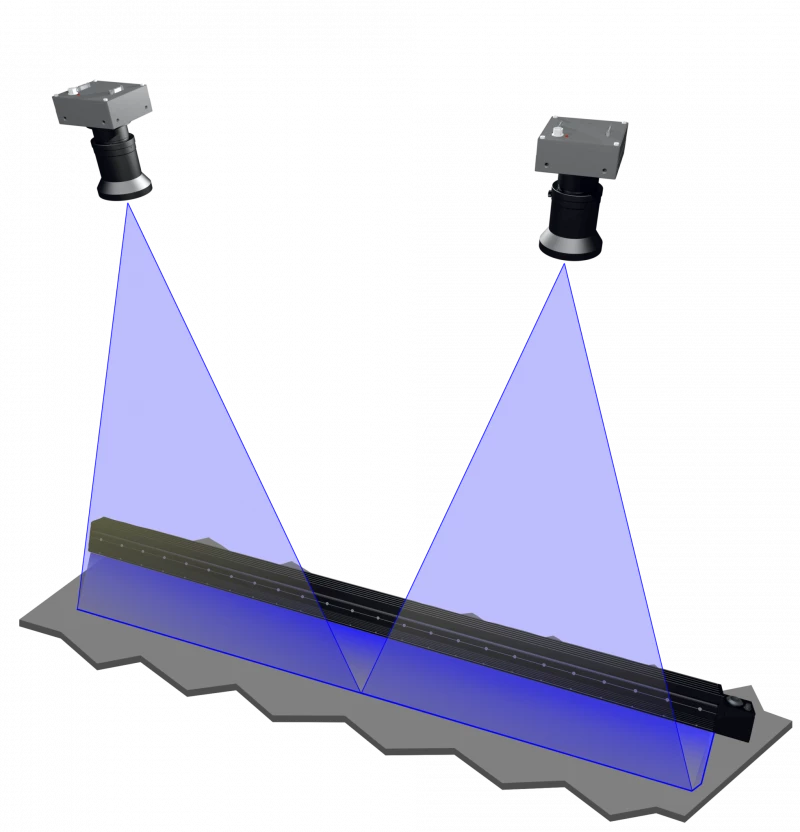

The Long Range Line Scan Illumination by Osela is a laser-based solution designed to provide high-intensity uniform illumination for long-range line scan imaging applications.
The illumination maintains high power over long distances with reduced image specularity, enabling users to resolve fine features required in demanding machine vision applications. The compact form factor and high electrical efficiency reduce the need for costly active cooling.
Line Scan Illumination
Specifications
| Working Range: | 5 m |
|---|---|
| Optical Power: | 20 W |
| Wavelength: | 450-808 nm |
| Form Factor: | Compact |
| Electrical Efficiency: | High |
| Image Quality: | Low speckling |
| Projection Setups: | Flexible |
Download Data Sheet
Features
- Laser-based solution for high-intensity uniform illumination
- Maintains high power over long distances with reduced image specularity
- Up to 20W of direct optical power with 450, 520, 640, 808nm wavelength
- Compact form factor and high electrical efficiency
- Provides superior image quality with low speckling

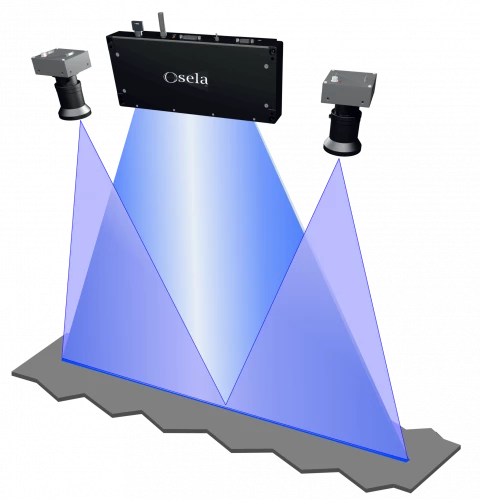

- Flexible illumination projections with different projection setups
Applications
- Line scan camera illumination
- 2D machine vision
- Outdoor industrial inspection
- Road, rail, train inspection
- Hot steel inspection
Frequently Asked Questions
What is the Long Range Line Scan Illumination used for?
The Long Range Line Scan Illumination is used for long-range line scan imaging applications.
What are the key features of the Long Range Line Scan Illumination?
The key features of the Long Range Line Scan Illumination include high-intensity uniform illumination, high power over long distances with reduced image specularity, compact form factor, high electrical efficiency, and superior image quality with low speckling.
What is the optical power and wavelength range of the Long Range Line Scan Illumination?
The Long Range Line Scan Illumination provides up to 20W of direct optical power with wavelength options of 450nm, 520nm, 640nm, and 808nm.
What are the applications of the Long Range Line Scan Illumination?
The Long Range Line Scan Illumination is commonly used for line scan camera illumination, 2D machine vision, outdoor industrial inspection, road and rail inspection, train inspection, and hot steel inspection.
Does the Long Range Line Scan Illumination require active cooling?
No, the compact form factor and high electrical efficiency of the Long Range Line Scan Illumination reduce the need for costly active cooling.
