Description
QD-Q1yzz-A, QD-Q1yzz-B, QD-Q1yzz-BS, QD-Q1yzz-G and QD-Q1yzz-K are conductively cooled laser diode arrays. These stacked arrays can be built with 2 to 19 diode bars of 60 W QCW to 400 W QCW. The laser arrays benefit from a fully developed technology, designed for improved efficiency (up to 65 % @ 808 nm and 72 % @ 940 nm) and reliable operation (above 10 billion shots).

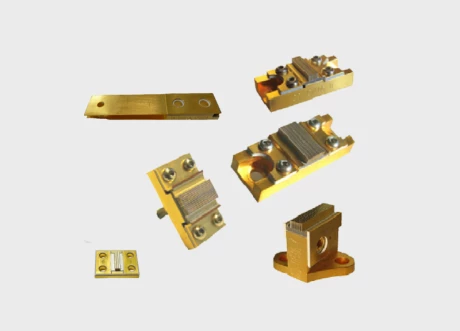

Conduction-cooled QCW Stacked Array
Specifications
Pitch Between Diode Bars (µm) : | 330 to few 1000s µm |
---|---|
QCW Optical Power Per Diode Bar (W) : | up to 400 W |
Operating Voltage: | < 2 / bar Volt |
Wavelength: | 790 to 980 nm |
Pulse Width: | 500 µs |
Features
- QCW operation
- 60 W to 400 W QCW per diode bar
- Standard wavelength 795 to 830 nm, 880 nm, 9xx nm
- Space qualified technology (vacuum, irradiation)
- Low thermal resistance assembly package
- Mechanically robust, shock and vibration resistant
Applications
- Ablation
- Engraving
- Flat panel display
- LIBS
- LIDAR
- LIF
- Surface treatment
- Spectroscopy
- Marking
- Shockwave generation
- Pumping
- Remote sensing
- Pointer
- Designator
- Illuminator
- Range finder
- Defense & Security
Frequently Asked Questions
What is the maximum number of diode bars that can be built in the QD-Q1yzz stacked array?
The QD-Q1yzz stacked array can be built with a maximum of 19 diode bars.
What is the standard wavelength range for the QD-Q1yzz stacked array?
The standard wavelength range for the QD-Q1yzz stacked array is from 795 to 830 nm, 880 nm, and 9xx nm.
What are the applications of the QD-Q1yzz stacked array?
The QD-Q1yzz stacked array can be used in applications such as ablation, engraving, flat panel display, LIBS, LIDAR, surface treatment, spectroscopy, marking, shockwave generation, pumping, remote sensing, pointer designator, illuminator, range finder, defense, and security.
Is the QD-Q1yzz stacked array mechanically robust and resistant to shock and vibration?
Yes, the QD-Q1yzz stacked array is mechanically robust and resistant to shock and vibration.
Can the QD-Q1yzz stacked array be used in space missions?
Yes, the QD-Q1yzz stacked array has been successfully tested and qualified for use in space missions, including endurance under vacuum and irradiation tests.
