Description

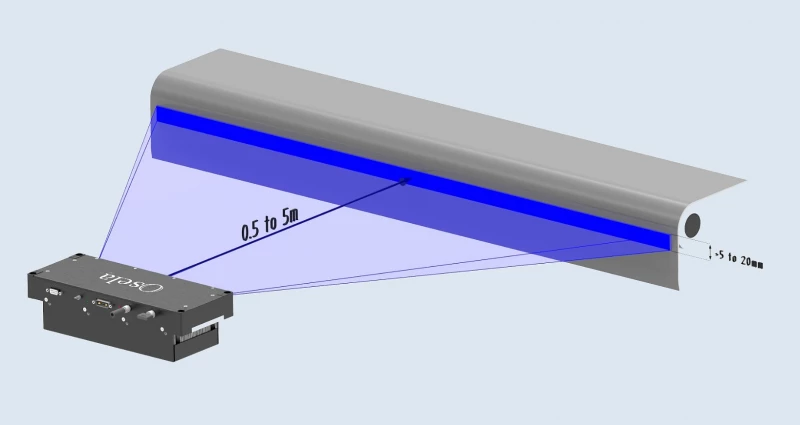

The Osela Long Range Illuminator (LRI) is a high-power density LINE SCAN illuminator designed for long distance applications in a compact light engine.
It provides high intensity uniform illumination for long range Line Scan imaging applications with reduced image specularity.
Long Range Illuminator
Specifications
| Working Range: | 5 m |
|---|---|
| Direct Optical Power: | 20 W |
| Wavelength: | 450-808 nm |
| Electrical Efficiency: | High |
| Image Quality: | High clarity with reduced image specularity |
| Projection Orientations: | Superimposed, stacked, or stitched at different angles |
| Power Density: | Provides high on target power irrespective of distance |
| Line Thickness: | 10mm |
| Fan Angles: | 30-60 degrees |
| Working Range: | 500-4000 mm |
| Effective Line Length: | Flexible with extended illumination areas |
| Mechanical Footprint: | Compact |
Download Data Sheet
Features
- Up to 5 meters working range
- Up to 20 W of direct optical power
- 450, 520, 640, 808 nm Wavelength
- Compact design
- Electrically efficient
Applications
- Line scan camera illumination
- 2D machine vision
- Outdoor industrial inspection
- Road, Rail, Train inspection
- Hot steel inspection
- 3D line scan stereo
Frequently Asked Questions
What is the Osela Long Range Illuminator (LRI)?
The Osela Long Range Illuminator (LRI) is a high-power density LINE SCAN illuminator designed for long distance applications in a compact light engine.
What are the features of the Long Range Illuminator?
The Long Range Illuminator has a working range of up to 5 meters and can provide up to 20 W of direct optical power. It also has a compact design and is electrically efficient.
What are the applications of the Long Range Illuminator?
The Long Range Illuminator can be used for line scan camera illumination, 2D machine vision, outdoor industrial inspection, road, rail, and train inspection, hot steel inspection, and 3D line scan stereo.
How does the Long Range Illuminator compare to LED-based systems?
The Long Range Illuminator uses a specialized optical technology that maintains high power over long distances while providing high clarity images with reduced image specularity. It also has high electrical efficiency, reducing the need for active cooling.
What is the power density of the Long Range Illuminator at different working distances?
The power density of the Long Range Illuminator remains high irrespective of distance. It provides high optical power in the region of interest for working distances from a few hundred millimeters to several meters.
