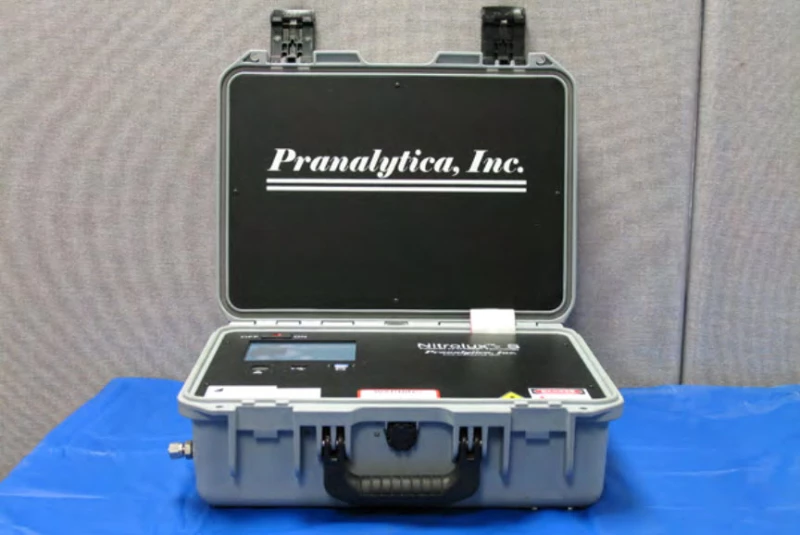

Nitrolux-S Ammonia Sensor
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
Nitrolux®-S is an innovative ambient level ammonia sensor developed by Pranalytica, Inc., designed specifically for measuring ammonia concentrations near emission sources such as agricultural and animal farms. This state-of-the-art sensor is compact and lightweight, leveraging semiconductor laser technology to ensure precise measurements. Its low electrical power consumption makes it an ideal choice for battery-operated setups, particularly in locations where utility power is unavailable. Additionally, the Nitrolux®-S can be powered by an optional solar panel, which also serves to recharge the batteries, enabling uninterrupted operation in remote areas without the need for constant supervision.
The versatility of the Nitrolux®-S is further enhanced by optional features such as a GPS receiver, which allows for continuous location monitoring, and wireless connectivity for remote operation. Encased in a NEMA-4 cabinet, the sensor is well-protected from environmental elements like rain and dust, ensuring reliable performance in field conditions while consistently delivering accurate ammonia concentration data.
Pranalytica, Inc., an ISO 9001 Certified Company, stands behind the quality and reliability of the Nitrolux®-S. For more information or inquiries, please contact Mr. Frank McGuire at (310) 458-4493 or via email at fxmcguire@pranalytica.com.
Nitrolux-S Ammonia Sensor
Specifications |
|
|---|---|
| Number Of Cells: | One |
| Minimum Detectivity: | 40 parts-per-billion (ppb) of ammonia |
| Measurement Time: | 120 seconds |
| Response Time: | 2 measurement cycles (0-90% change) |
| Selectivity: | No interference at 40 ppb level from other compounds |
| Linearity: | ±10% of full scale (up to a maximum of 500 ppm) |
| Precision: | 40 parts-per-billion or 10% of the reading |
| Zero Drift: | ±40 parts-per-billion per week (non-cumulative) |
| Span Drift: | ±10% of full scale per month (non-cumulative) |
| Control Processor: | Pentium class microcomputer (750 MHz) |
| Operating System: | LINUX |
| Data Storage: | Solid state memory, ~1 year capacity, ~4 years with EDS option |
| Alarm Settings: | User selectable and programmable |
| Display: | Numerical and graphical (Option DS) |
| Data Output: | USB key, Ethernet, Wireless (Option WS) |
| Gas Handling: | Direct measurement of ammonia |
| Vacuum Pump: | Internal with gas flow |
Features
- Compact and Lightweight: The Nitrolux®-S is a compact, lightweight semiconductor laser-based ammonia sensor, ideal for agricultural and animal farm applications.
- Low Power Consumption: Designed for low electrical power consumption, making it suitable for battery operation in areas without utility power.
- Solar Panel Compatibility: Can be operated with an optional solar panel for battery recharging, enabling remote operation without operator attention.
- Versatile Options: Includes optional GPS receiver for location monitoring and wireless connectivity for remote operation.
- Durable Housing: Housed in a NEMA-4 cabinet, providing protection from environmental elements such as rain and dust.
- High Sensitivity: Minimum detectivity of 40 parts-per-billion (ppb) of ammonia.
- Fast Measurement: Measurement time of 120 seconds with a response time of 2 measurement cycles (0-90% change).
- Exceptional Selectivity: No interference from other ammonium compounds, hydrocarbons, hydrogen sulfide, sulfur dioxide, water, and NOX at 40 ppb level.
- Reliable Linearity: ±10% of full scale, up to a maximum of 500 ppm.
- Precision and Stability: Precision of 40 ppb or 10% of the reading, with zero drift of ±40 ppb per week and span drift of ±10% per month.
- Advanced Control Processor: Equipped with a Pentium class microcomputer (750 MHz processor board) running on LINUX for high reliability.
- Robust Data Storage: Completely solid-state memory with user data storage capacity for approximately 1 year, extendable to 4 years (Option EDS).
- Customizable Alarm Settings: User-selectable and programmable alarm settings.
- Comprehensive Display: Numerical and graphical displays showing date, time, ammonia concentration, and alarm settings. Graphical display available with GPS option (Option GP1).
- Flexible Data Output: USB key, Internet connection via Ethernet, and wireless connectivity (Option WS).
- Direct Gas Handling: Direct measurement of ammonia without conversion or preconcentration.
- Internal Vacuum Pump: Includes an internal vacuum pump with gas flow.
Applications
- Source Level Ammonia Measurement: Designed for measuring ammonia concentrations near sources such as agricultural and animal farms.
- Portability and Power Options: Compact and lightweight with low electrical power consumption, ideal for battery operation or optional solar panel use for remote areas.
- Versatility: Optional GPS receiver for location monitoring and wireless connectivity for remote operation.
- Durability: Housed in a NEMA-4 cabinet for protection against rain, dust, and other field conditions.
Frequently Asked Questions
The Nitrolux®-S is an ambient level ammonia sensor designed for measurement of ammonia concentrations near the sources of ammonia emanations such agricultural and animal farms.
The applications of Nitrolux®-S are agricultural, environmental, and laboratory.
The minimum detectivity of Nitrolux®-S is 40 parts-per-billion (ppb) of ammonia.
The electrical power consumption of Nitrolux®-S is 45 W average in continuous operation.
The size of Nitrolux®-S is 16.2” W x 6.6” H x 12.7” D, and the weight of Nitrolux®-S is 30 lbs (including batteries, Option BP); 22 lbs (without batteries).
