Description

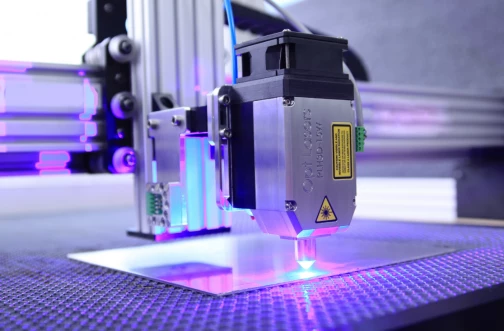

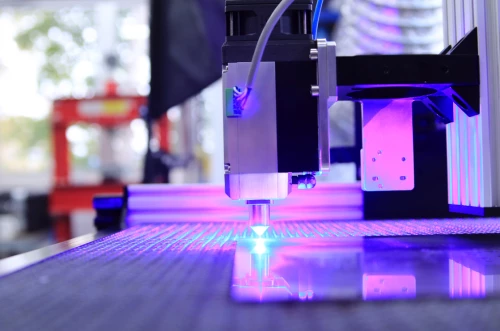

Introducing the PLH3D-15W Engraving Laser Head, a cutting-edge solution designed by Tomorrow's System Sp. z o.o. for precision engraving applications. This laser head is engineered to deliver high performance and reliability, making it an ideal choice for professionals seeking to enhance their engraving capabilities. With its robust construction and advanced technology, the PLH3D-15W stands out as a versatile tool in the world of laser engraving.
The PLH3D-15W Engraving Laser Head boasts a compact design, measuring just 40 x 54 x 86.5 mm, which allows for easy integration into various setups. Despite its small size, it packs a powerful punch with an optical power of 15 watts, ensuring efficient and precise engraving results. The laser operates at a center wavelength of 445 nm, providing a focused beam spot width of 180 µm, which is perfect for detailed and intricate work.
Designed with user convenience in mind, the PLH3D-15W features a straightforward mounting hole pattern and is compatible with M3 or M4 screws, facilitating seamless installation. The laser head is powered by a 22-24 VDC power supply and consumes less than 85 watts, making it both energy-efficient and powerful. Additionally, the laser head supports a wide range of modulation inputs, including analog, PWM, and TTL signals, allowing for flexible control and customization of the engraving process.
Safety and reliability are paramount in the design of the PLH3D-15W. It is crucial to power the laser head with a dedicated high-quality power supply to prevent any potential damage to the laser diodes. Furthermore, users are advised not to connect both modulation inputs simultaneously to avoid malfunction. With its advanced features and robust design, the PLH3D-15W Engraving Laser Head is a top-tier choice for professionals seeking precision and efficiency in their engraving projects.
PLH3D-15W Engraving Laser Head
Specifications |
|
|---|---|
| Optical Power: | 15 W |
| Center Wavelength: | 445 nm |
| Working Distance: | 4 mm |
| Beam Spot Width: | 180 µm |
| Dimensions: | 40 x 54 x 86.5 mm |
| Mounting Hole Pattern: | 77 x 68 mm |
| Weight: | 790 g |
| PSU Voltage: | 22 - 24 VDC |
| Power Consumption: | <85 W |
| Modulation Input 1: | 0 - 5 V Analog / PWM / TTL |
| Modulation Input 2: | 0-3 V, 0-5 V, 0-10 V, 0-24 V PWM / TTL |
| Max. Mod. Bandwidth: | 30 kHz |
| Operating Temperature: | 10°C to 45°C |
| Air Nozzle Hose Size: | 4 mm |
| Max. Air Pressure: | 5 bar |
Features
- High Optical Power: The PLH3D-15W Engraving Laser Head delivers an impressive 15 W of optical power, making it ideal for a wide range of engraving applications.
- Precision Wavelength: Operates at a center wavelength of 445 nm, ensuring precise and accurate laser performance.
- Compact Design: With dimensions of 40 x 54 x 86.5 mm (1.6" x 1.7" x 3.4"), this laser head is compact and easy to integrate into various systems.
- Small Beam Spot: Features a beam spot width of just 180 µm (0.007"), allowing for detailed and intricate engraving work.
- Flexible Mounting Options: Includes a mounting hole pattern of 77 x 68 mm (30" x 2.7") with M3 (#4-40) or M4 (#8-32) screws recommended.
- Lightweight: Weighing only 790 g (27.8 oz), it is easy to handle and install.
- Efficient Power Usage: Operates on a PSU voltage of 22 - 24 VDC with a power consumption of less than 85 W.
- Versatile Modulation Inputs: Supports multiple modulation inputs including 0 - 5 V Analog/PWM/TTL and 0-3 V, 0-5 V, 0-10 V, 0-24 V PWM/TTL, providing flexibility in control.
- Wide Operating Temperature Range: Functions effectively in temperatures ranging from 10°C to 45°C (50 - 113°F).
- High Air Pressure Capability: The air nozzle can handle a maximum air pressure of 5 bar (72 PSI), ensuring optimal cooling and debris removal.
Applications
- Precision Engraving: The PLH3D-15W Engraving Laser Head is ideal for precision engraving on various materials, providing high-quality results with its 15 W optical power.
- Cutting Applications: With its powerful laser and precise beam spot width of 180 µm, this laser head can be used for cutting thin materials with accuracy.
- Prototyping: Suitable for rapid prototyping, allowing users to create detailed and intricate designs quickly and efficiently.
- Industrial Use: Designed for industrial applications where high precision and reliability are required, such as in manufacturing and production lines.
- Artistic Creations: Perfect for artists and designers looking to create detailed and complex patterns on various surfaces.
- Educational Purposes: Can be used in educational settings to demonstrate laser technology and its applications in engineering and design.
- Research and Development: Useful in R&D environments for testing and developing new materials and techniques.
Frequently Asked Questions
The laser head can process a wide range of wood-based materials, leather, textiles, and plastics.
The laser head has a real 15 W of optical power.
Yes, the laser head can engrave diversified materials including stainless steel, tool steel, and Titanium.
Yes, the laser head can be mounted on nearly any CNC machine due to its lightweight design.
With the high-pressure air nozzle, you only need to clean the lens 10x less often.
