SkyDRIVE-mini-CW-1A - Butterfly Laser Diode Driver
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2019
Description
Introducing the SkyDRIVE-mini-CW, a state-of-the-art power supply solution designed for precision and reliability. This compact device is engineered to deliver adaptive output voltage and robust current support, ensuring seamless operation across a variety of applications. With its continuous CW mode, the SkyDRIVE-mini-CW guarantees consistent performance, maintaining current stability at less than 0.1%. This makes it an ideal choice for environments that demand unwavering accuracy and dependability.
The SkyDRIVE-mini-CW is designed with user convenience in mind, featuring dual control methods for both output current and power supply operations. Users can effortlessly switch between local and computer-based controls, providing flexibility and ease of use. The optional TEC temperature control feature enhances its versatility, offering precise temperature management with an accuracy of ±0.1 °C. This ensures optimal performance and longevity of the connected systems, even in varying environmental conditions.
Safety and protection are paramount in the design of the SkyDRIVE-mini-CW. It comes equipped with comprehensive protection mechanisms against over-current, over-voltage, and overheating. Additional features such as slow current rise and drop further safeguard the device and connected systems from potential damage. The intuitive LCD color display and friendly human-machine interface facilitate easy monitoring and diagnostics, empowering users with real-time insights into the system's status and performance.
With dimensions of 100x150x50mm, the SkyDRIVE-mini-CW is compact yet powerful, making it suitable for a range of setups where space is at a premium. Customization options are available to meet specific requirements, ensuring that the SkyDRIVE-mini-CW can be tailored to fit unique operational needs. Whether for industrial, laboratory, or other professional settings, this power supply unit stands out with its high stability, low noise, and exceptional anti-interference capabilities.
SkyDRIVE-mini-CW-1A - Butterfly Laser Diode Driver
Specifications |
|
|---|---|
| Laser Current: | 1 A |
| TEC Current: | 2 A |
| Laser Mount: | included |
| Graphical User Interface: | yes |
| Control Button: | yes |
| Display: | yes |
Features
- Adaptive Output Voltage: 3V with adaptive load capabilities.
- Output Current Range: 0~5000mA, supporting various applications.
- Continuous CW Mode: Ensures stable and consistent operation.
- High Current Stability: Less than 0.1% fluctuation for precise performance.
- Dual Control Methods: Output current can be controlled locally or via computer software.
- Dual Start/Stop Control: Manage power supply operations locally or through computer software.
- TEC Temperature Control: Optional feature with high accuracy of ± 0.1°C.
- Adjustable TEC Output: Voltage range of 1~5V and current up to 3A.
- Comprehensive Protection: Includes over-current, over-voltage, over-heat, and other safeguards.
- Slow Current Transition: Features slow current rise and drop for enhanced protection.
- High Stability and Low Noise: Designed for high anti-interference performance.
- Color LCD Display: Provides clear and easy-to-read information.
- User-Friendly Interface: Includes a friendly human-machine interface and fault diagnosis function.
- Compact Board Size: 100mm x 150mm x 50mm, suitable for various setups.
- Customization Available: Accepts custom modifications to meet specific needs.
- Remote Interface: Optional RS232 interface for remote operations.
- Temperature Control Range: 5°C to 40°C with NTC sensor (25°C-10K).
Applications
- Laser Diode Driver: Designed for use with laser diodes, providing stable current and voltage control.
- Industrial Automation: Can be integrated into automated systems for precise control of laser operations.
- Research and Development: Suitable for laboratory environments where precise control and stability are required.
- Medical Equipment: Can be used in medical devices that require controlled laser outputs.
- Telecommunications: Ideal for applications in fiber optic communications where stable laser performance is crucial.
- Temperature Control Systems: Equipped with TEC temperature control for applications requiring precise temperature management.
- Custom Electronics Projects: Accepts customization for specific project needs, making it versatile for various applications.
Frequently Asked Questions
Yes, the SkyDRIVE-mini-CW-1A can be customized.
The SkyDRIVE-mini-CW-1A features output voltage adaptive load 3V, output current of 0~5000mA, continuous CW mode, and current stability of less than 0.1%. It also has two control methods for output current and start/stop of power supply, TEC temperature control laser, over-current, over-voltage, over-heat protection, and more.
The board size of the SkyDRIVE-mini-CW-1A is 100*150*50mm.

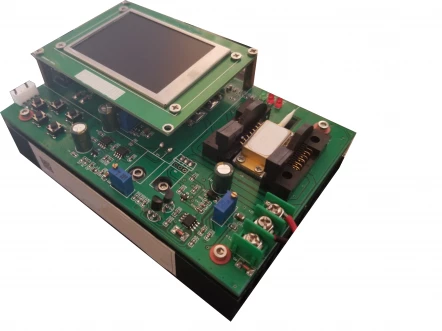

The SkyDRIVE-mini-CW-1A is an all-in-one 14-pin laser driver, TEC driver, and butterfly laser package mount that comes mounted on a heatsink.
The TEC temperature control laser has an optional temperature control accuracy of ±0.1°C.
