HIGH POWER Quasi-CW Wavelength Stabilized QCL Platform
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
**Model 1101-XX-QCW-YYYY-EGC-UC-PF High Average Power Quasi-CW Wavelength Stabilized Quantum Cascade Laser** The Model 1101-XX-QCW-YYYY-EGC-UC-PF is a cutting-edge quantum cascade laser (QCL) system designed for high average power output, offering unprecedented performance for OEM applications. This advanced platform is engineered to deliver wavelength-stabilized pulsed infrared radiation, ensuring reliable and precise operation. By integrating a wavelength dispersive element within the hermetically sealed QCL butterfly package, the system achieves exceptional wavelength stabilization, making it ideal for use in challenging environments.

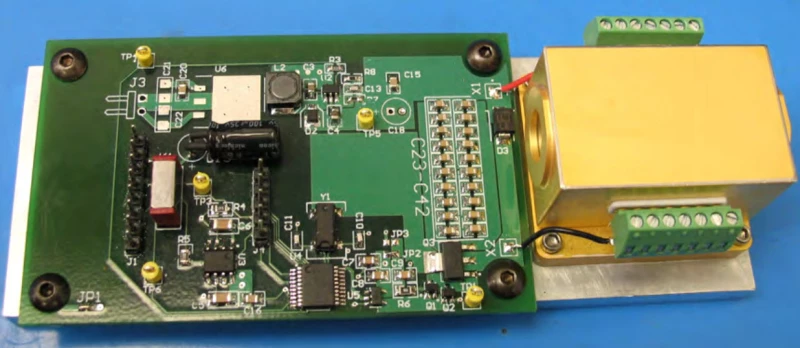

At a wavelength of 4.6 µm, the laser system produces over 1.5 W of average power, while at 4.0 µm, it generates more than 1 W of average power. The system supports a range of wavelengths between 3.8 µm and 12 µm, catering to a variety of specialized applications. Designed with OEM integration in mind, the passively cooled system is virtually vibration-free and requires only an external DC power source for operation. Its self-contained design includes pulse shaping and power conditioning electronics on the PCB, along with a hermetically sealed butterfly package that houses the QCL and associated optics for wavelength stabilization and beam collimation.
The Model 1101-XX-QCW-YYYY-EGC-UC-PF requires no field adjustments and is engineered to maintain stability over extended periods in stable temperature environments. This robust and reliable system is perfect for customers looking to incorporate high-performance laser technology into their platforms, ensuring seamless integration and optimal functionality. For further inquiries or to discuss your specific requirements, please contact Mr. Frank McGuire at Pranalytica, Inc., an ISO 9001 Certified Company.
HIGH POWER Quasi-CW Wavelength Stabilized QCL Platform
Specifications |
|
|---|---|
| Output Power (avg): | 1.5 W |
| Wavelength: | 4.6 um |
| Pulse Duration: | 20 – 200 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Wavelength Range: | um |
| Output Power Range: | W |
Features
- High Average Power Output: Delivers over 1.5 W at 4.6 µm and over 1 W at 4.0 µm. Other wavelengths between 3.8 µm and 12 µm are available.
- Wavelength Stabilization: Features a built-in wavelength dispersive element for precise wavelength control, ensuring reliable operation in various environments.
- Quasi-CW Operation: Operates in a high duty cycle pulsed mode, with factory-set pulse durations of 200 ns to 500 ns and repetition rates of 500 kHz to 2.0 MHz.
- Customizable Output: Optional configurations offer variable pulse width from 20 ns to 200 ns, repetition rates from 50 kHz to 2.5 MHz, and duty cycles from 0.05% to 50%.
- Wavelength Options: Standard wavelengths include ~4.0 µm, ~4.6 µm, ~8.5 µm, and ~9.5 µm. Custom wavelengths between 3.8 µm and 12 µm are available upon request.
- Precision Beam Control: Features a beam divergence of 3 mrad both vertically and horizontally, with nearly collimated output via an internal lens.
- Hermetically Sealed Package: Ensures high reliability and stability in all environmental conditions.
- Compact and Lightweight Design: Measures 12.5 cm (L) x 5 cm (W) x 3 cm (H) and weighs only 250 g, including the integrated electronics board.
- Simple Electrical Requirements: Operates on 24 V DC at 1 A, making integration into existing systems straightforward.
Applications
- High Average Power: Produces over 1.5 W at 4.6 µm and over 1 W at 4.0 µm.
- Wavelength Stabilized: Incorporates a wavelength dispersive element inside the hermetically sealed QCL butterfly package.
- Wide Wavelength Range: Available in wavelengths between 3.8 µm and 12 µm.
- OEM Applications: Designed for easy integration into customer platforms, requiring only external DC power.
- Virtually Vibration-Free: Passively cooled system ensures stability and reliability.
- Self-Contained System: Includes pulse shaping and power conditioning electronics on the PCB.
- Field Stability: Requires no adjustments in the field and maintains stability over long periods in stable temperature environments.
- Mode of Operation: Quasi-CW, high duty cycle pulsed with factory-set specifications.
- Beam Quality: Excellent beam quality with nearly collimated output due to internal lens.
- Hermetically Sealed Package: Ensures high reliability in all environments.
Frequently Asked Questions
It is a high average power, wavelength stabilized pulsed QCL platform of infrared radiation for OEM applications.
Wavelength stabilization is achieved by incorporating a wavelength dispersive element inside the QCL butterfly package, which is hermetically sealed for reliable operation in adverse environments.
The system produces in excess of 1.5 W of average power at a wavelength of 4.6 µm.
Other wavelengths between 3.8 µm and 12 µm are available, including ~4.0 µm, ~4.6 µm, ~8.5 µm, and ~9.5 µm.
The system requires 24 V DC @ 1 A to operate.
