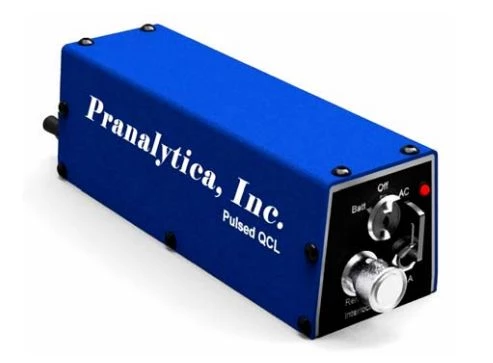

Model 1101-XX-QCW-YYYY-MicroTT-EXT is a cutting-edge high power quasi-CW micro tabletop quantum cascade laser system. This advanced system serves as a robust pulsed source of infrared radiation, delivering over 2 watts of average power at a wavelength of 4.6 µm. The versatility of this system is highlighted by its capability to operate at other wavelengths ranging from 3.8 to 12 µm, catering to a broad spectrum of scientific and industrial applications.
Designed for ease of use and stability, the system is passively cooled and virtually vibration-free, making it ideal for bench top deployment. Its self-contained design requires only an external 20 VDC power source to function, with all necessary pulse shaping and power conditioning electronics housed within. The hermetically sealed package incorporates the QCL and related optics, ensuring a collimated laser beam output. Notably, the system demands no field adjustments and remains stable over extended periods, provided it operates in a stable temperature environment.
The Model 1101-XX-QCW-YYYY-MicroTT-EXT offers the flexibility of internal battery operation, allowing for greater mobility and convenience. With four CR123A batteries, the system can run for over 30 minutes at a 2 W output, with longer runtimes achievable at lower power settings. This feature enhances the system's versatility, making it suitable for various field and laboratory settings.
High Power Quasi-CW Quantum Cascade Laser at 4um
Specifications |
|
|---|---|
| Output Power (avg): | 2 W |
| Wavelength: | 4 um |
| Pulse Duration: | 200 – 500 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Average Optical Power At 3.8 µm: | > 1.5 W |
| Average Optical Power At 7.2 µm: | > 1.2 W |
| Average Optical Power At 9.3 µm: | > 1.5 W |
| Mode Of Operation: | Quasi-CW, high duty cycle pulsed |
| Repetition Rate: | ~ 500 kHz - 2.0 MHz |
| Wavelength Options: | 3.8 µm, 4.0 µm, 4.6 µm, 7.1 µm, 8.5 µm, 9.3 µm |
| Beam Divergence: | 5 mrad vertical, 5 mrad horizontal |
| Output Beam Spot Size: | ~ 4 mm |
| Laser Head Size: | 5.5” (L) x 1.8” (W) x 1.8” (H) |
| Laser Head Weight: | 11 Oz |
| External Power Supply: | 20 V DC |
| Internal Battery Operation: | 4 CR123A batteries |
Features
- High Power Output: Model 1101-XX-QCW-YYYY-MicroTT-EXT delivers over 2 W of average power at 4.6 µm, with options for other wavelengths between 3.8 and 12 µm.
- Quasi-CW Mode: Operates in a high duty cycle pulsed mode, factory-set for optimal performance with pulse durations of ~200 ns to 500 ns and repetition rates of ~500 kHz to 2.0 MHz.
- Versatile Wavelength Options: Standard wavelengths include ~3.8 µm, ~4.0 µm, 4.6 µm, 7.1 µm, 8.5 µm, and 9.3 µm, with custom wavelengths available upon request.
- Compact and Lightweight Design: Laser head dimensions are 5.5” (L) x 1.8” (W) x 1.8” (H) with a weight of only 11 ounces, making it suitable for tabletop use.
- Self-Contained System: Requires only an external 20 VDC power supply for operation and includes internal pulse shaping and power conditioning electronics.
- Optional Battery Operation: Can operate on four CR123A batteries, providing over 30 minutes of runtime at 2 W output, with longer runtimes for lower power settings.
- Stable and Reliable: Hermetically sealed QCL package ensures high reliability and stability in various environments without the need for field adjustments.
- Excellent Beam Quality: Provides a nearly collimated output beam with a spot size of ~4 mm and beam divergence of 5 mrad both vertically and horizontally.
- ISO 9001 Certified Manufacturer: Manufactured by Pranalytica, Inc., ensuring high quality and consistent performance.
Applications
- Remote Sensing: The high power and specific wavelength capabilities of the Model 1101-XX-QCW-YYYY-MicroTT-EXT make it ideal for remote sensing applications, including atmospheric monitoring and environmental analysis.
- Industrial Process Control: This laser system can be used for precise monitoring and control of industrial processes that require specific wavelength detection and high power.
- Scientific Research: The stable and high power output is suitable for a variety of scientific research applications, including spectroscopy and materials analysis.
- Medical Applications: The system's infrared capabilities can be utilized in medical diagnostics and therapeutic treatments that require specific wavelengths.
- Security and Defense: The Model 1101-XX-QCW-YYYY-MicroTT-EXT can be employed in security and defense applications, such as LIDAR systems and target illumination.
- Environmental Monitoring: The laser's ability to operate at various wavelengths allows for effective monitoring of environmental gases and pollutants.
- Communication Systems: The system can be used in free-space optical communication systems that require high power and specific wavelength lasers.
