EP1550-0-NLW-400 kHz Series 1550nm Ultra Narrow Linewidth Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Ireland
-
Sold by:
-
On FindLight:
since 2019
Description
The EP1550-0-NLW-400 kHz Series by Eblana Photonics stands as a benchmark in the realm of monolithic, ultra-narrow linewidth laser diodes, specifically in the near-infrared spectrum. These advanced laser diodes are meticulously crafted on Eblana's cutting-edge Discrete Mode technology platform, ensuring unparalleled spectral purity even in the most challenging environmental conditions. This series has become synonymous with precision and reliability, offering standard linewidths that reach down to sub 400 kHz, all within a monolithic design that eliminates the need for an external cavity.
Designed for versatility, the EP1550-0-NLW-400 kHz Series lasers can be finely tuned through temperature or current adjustments, providing users with a customizable experience. The lasers boast a low sensitivity to mechanical vibrations, which is essential for maintaining performance in dynamic environments. Additionally, injection locking versions are available, further enhancing the flexibility and application range of these laser diodes. Customers can specify the wavelength to a custom value, tailoring the laser to specific needs and ensuring optimal integration into existing systems.

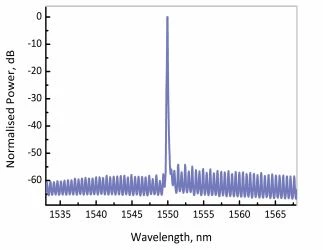

Encased in a fiber-coupled 14-pin Butterfly package with an optical isolator, the EP1550-0-NLW-400 kHz Series delivers a precise narrow linewidth, making it an ideal choice for applications demanding high spectral purity and stability. With key parameters such as a linewidth of less than 400 kHz, a typical side mode suppression ratio (SMSR) of 40 dB, and power in fiber reaching 5 mW, these lasers are engineered for excellence. The series also offers a tuning range of 2 nm and optical isolation exceeding 55 dB, alongside a relative intensity noise (RIN) of 160 dB/Hz, ensuring that every aspect of performance is optimized for the most demanding of applications.
EP1550-0-NLW-400 kHz Series 1550nm Ultra Narrow Linewidth Laser Diode
Specifications |
|
|---|---|
| Laser Type: | Modulated |
| Fiber Type: | Single Mode |
| Wavelength: | 1550 nm |
| Output Power: | 5 mW |
Features
- Industry Standard: Eblana's NLW series is recognized as the industry standard for monolithic, ultra-narrow linewidth laser diodes in the near infrared.
- Discrete Mode Technology: Built on Eblana's Discrete Mode technology platform, offering exceptional spectral purity even in challenging environmental conditions.
- Ultra-Narrow Linewidth: Standard linewidths available down to sub 400 kHz, ensuring precise and stable laser performance.
- Monolithic Design: Features a monolithic design without the need for an external cavity, enhancing reliability and ease of use.
- Tunable Options: Tunability achieved either by temperature or current adjustments, providing flexibility in applications.
- Low Vibration Sensitivity: Designed with low sensitivity to mechanical vibration, ensuring stable performance in various environments.
- Injection Locking: Injection locking versions are available for specialized applications.
- Custom Wavelengths: Wavelengths can be specified to custom values to meet specific application needs.
- High Spectral Purity: Linewidth < 400 kHz with a Side Mode Suppression Ratio (SMSR) of 40 dB (typical).
- Powerful Output: Delivers 5 mW of power in fiber, suitable for demanding applications.
- Tuning Range: Offers a tuning range of 2 nm for versatile application use.
- Optical Isolation: Provides optical isolation greater than 55 dB, enhancing performance stability.
- Low Noise: Relative Intensity Noise (RIN) of 160 dB/Hz for clear and precise signal output.
Applications
- Coherent Optical Communications: Supports advanced data transmission with high stability.
- High-Resolution Spectroscopy: Enables precise optical measurements and analysis.
- Optical Sensing Systems: Ideal for environmental, industrial, and scientific sensing.
- Metrology and Research: Suitable for precision measurement instruments.
Frequently Asked Questions
Yes, the wavelength of the EP1550-0-NLW-400 kHz SERIES may be specified to a custom value.
Yes, the EP1550-0-NLW-400 kHz SERIES is tunable by either temperature or current.
The EP1550-0-NLW-400 kHz SERIES has standard linewidths down to sub 400 kHz.
The EP1550-0-NLW-400 kHz SERIES is a monolithic, ultra narrow linewidth laser diode in the near infrared built on Eblana's Discrete Mode technology platform.
The EP1550-0-NLW-400 kHz SERIES has an optical isolation of over 55 dB.
