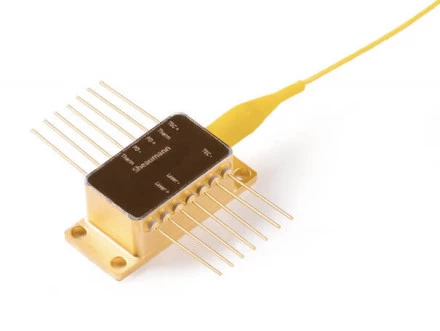

14 Pin Multimode 808nm - 3W Butterfly Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
Sheaumann Laser, Inc. -
On FindLight:
since 2022
Description
The 808nm 3W laser diode is a high-performance component designed for precision and reliability in demanding applications. Encased in a hermetically sealed package, this laser diode ensures optimal protection against environmental factors, enhancing its durability and longevity. The inclusion of an internal thermoelectric cooler (TEC), thermistor, and photodiode further stabilizes the device, allowing for precise temperature control and monitoring, which is critical for maintaining consistent performance.
One of the standout features of this laser diode is its electrically isolated design, which minimizes the risk of electrical interference and enhances safety during operation. The device is equipped with a 100μm, 0.22 numerical aperture (NA) fiber with a 1.0m output, providing flexibility and efficiency in light transmission. Additionally, the product offers a variety of fiber and connector options, allowing for customization to meet specific application requirements.
Designed for multimode, continuous wave (CW) operation, this laser diode is engineered to deliver a stable and reliable output. However, users must exercise caution as laser light emitted from the diode is invisible and potentially harmful to the human eye. It is crucial to avoid direct exposure to the laser aperture during operation and to use appropriate optical instruments to mitigate eye hazards. Furthermore, to prevent device failure due to electrostatic discharge (ESD), proper handling techniques, including the use of ESD wrist straps and grounded work surfaces, are recommended.
Operating the laser diode within the specified limits is essential to prevent device failure and ensure safety. The device requires adequate cooling, either passively or actively, to maintain optimal performance and prevent overheating. It is important to note that these products are intended as components of electronic systems and are not independently certified for safety standards such as IEC 60825-1 or 21 CFR 1040.10/21 CFR 1040.11. Compliance with export regulations is also necessary, requiring a Destination Control Statement or End User Agreement for each sales order.
Sheaumann offers a limited warranty for this laser diode, reflecting the company's commitment to quality and customer satisfaction. For more detailed information on specifications, availability, and terms, customers are encouraged to contact Sheaumann directly. This datasheet serves as a general reference, and specifications are subject to change without notice.
14 Pin Multimode 808nm - 3W Butterfly Module
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 808 nm |
| Output Power: | 3000 mW |
Features
- Internal Components: Equipped with TEC, thermistor, and photodiode for enhanced performance and reliability.
- Electrical Isolation: Ensures safe and efficient operation by preventing electrical interference.
- Hermetically Sealed Package: Provides robust protection against environmental factors, ensuring long-lasting durability.
- Output Fiber: Features a 100μm, 0.22NA, 1.0m output fiber for optimal light transmission.
- Customizable Options: Offers a variety of fiber and connector options to suit specific application needs.
- Wavelength: Operates at a typical wavelength of 808nm, ideal for various laser applications.
- Operating Power: Delivers a typical power output of 3.0W, with a maximum of 3.6A operating current.
- Voltage Requirements: Operates efficiently at a typical voltage of 2.3V, with a maximum of 2.5V.
- Thermistor Specifications: Features a thermistor resistance of 10 kΩ and a B constant of 3450 K for precise temperature monitoring.
- Temperature Range: Designed to operate within a case temperature range of -20ºC to 50ºC and a storage temperature range of -40ºC to 85ºC.
- Safety and Compliance: Includes warnings for laser light hazards and ESD precautions, ensuring safe usage and handling.
- Warranty and Support: Backed by a limited warranty with detailed terms and conditions available upon request.
Applications
- Medical Therapy: Reliable source for therapeutic and surgical laser systems.
- Laser Pumping: Efficient pump for solid-state and fiber laser systems.
- Materials Processing: Suitable for welding, cutting, and micromachining applications.
- Scientific Research: Stable output for spectroscopy, imaging, and experimental setups.
Frequently Asked Questions
The wavelength emission range is 780-1070nm.
The features include internal TEC, thermistor, and photodiode, electrically isolated and hermetically sealed package, and a 100μm .22NA 1.0m output fiber.
Yes, the module can be customized for military applications with optional protection against damaging reverse currents.
The maximum operating power is 3.0W and the maximum operating current is 3.6A.
Yes, the product emits invisible laser light that may be harmful to the human eye, so it is important to avoid looking directly into the laser aperture when the device is in operation. Additionally, the user should follow ESD precautions and comply with heatsinking requirements to prevent device failure.
