Description
The 850L-1XA Laser Diode Module is a high-performance, ultra-compact, all-in-one laser head designed for a wide range of applications. It operates at a wavelength of 850nm and offers multiple fiber-coupled options.
With thermally stabilized optics and a monolithic design, this laser module ensures reliable and maintenance-free operation. It features automatic power control and accepts a 5VDC input voltage.

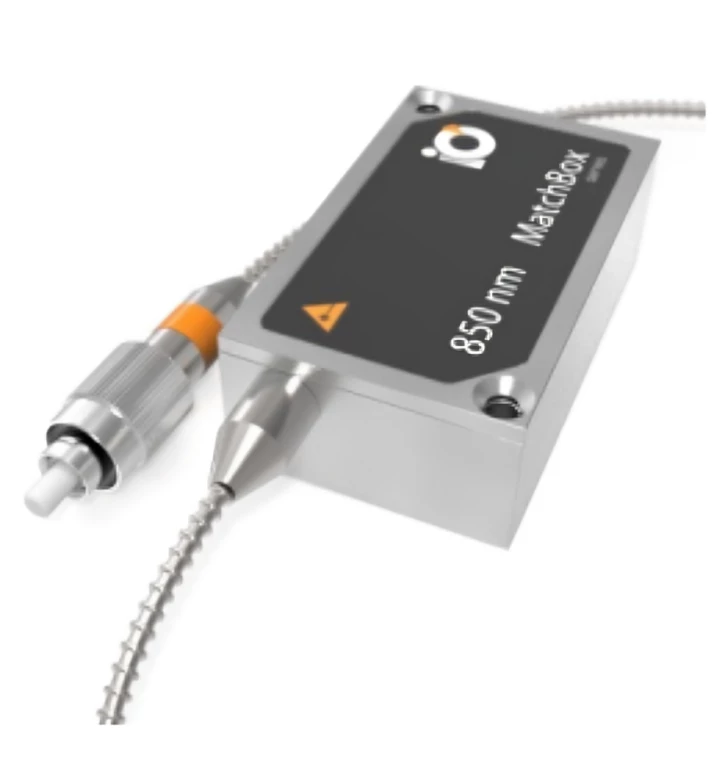

0850L-14A-NI-ST-NF Laser Diode Module (Single Mode | 850nm | 110mW)
Specifications
| Laser Type: | Continuous Wave (CW), Modulated |
|---|---|
| Fiber Type: | Single Mode |
| Wavelength: | 850 nm |
| Output Power: | 110 mW |
| Fiber Core Diamater: | Not Specified |
| Fiber Cladding Diameter: | Not Specified |
| Fiber Length: | 1 m |
| Max. Power Consumption: | 2 W |
| Net Weight: | 0.12 kg |
| Storage Temperature: | -10 to +50 ℃ |
| Overheat Protection: | Yes |
| Temperature Stabilization: | Internal TEC |
| Warm Up Time: | 0.5 min |
| Optimum Heatsink Temperature: | 20 °C |
| Longitudinal Modes: | Multiple |
| Transversal Modes: | Multiple |
| Spectral Line Width FWHM: | 0.1 nm |
| Intensity Noise: | 0.25 % |
| Power Stability: | 0.03 % |
| Laser Safety Class: | 3B |
| Input Voltage: | 5 VDC |
| External Power Supply Requirement: | +5 V DC, 1.5 A |
| Dimensions: | 50 x 30 x 18 mm |
Download Data Sheet
Features
- Wavelength: 850nm
- Multiple Fiber Coupled Options
- Ultra-compact All-in-one Design
- Thermally stabilized optics
- Monolithic Design
- Hermetically Sealed
- Automatic Power Control
- 5VDC Input Voltage
Applications
- Flow cytometry
- Life Science applications
- Commercial flow cytometers
- Laser sources for integration
- Raman spectroscopy
- Confocal microscopy
- Doppler LIDAR
- Optical surface flatness testing
Frequently Asked Questions
What is the wavelength of the 0850L-14A-NI-ST-NF laser diode module?
The wavelength of the 0850L-14A-NI-ST-NF laser diode module is 850nm.
What is the maximum output power of the 0850L-14A-NI-ST-NF laser diode module?
The maximum output power of the 0850L-14A-NI-ST-NF laser diode module is 110mW.
What kind of fiber coupling options are available for the 0850L-14A-NI-ST-NF laser diode module?
The 0850L-14A-NI-ST-NF laser diode module has multimode fiber coupling options with an SMA connector.
What is the warranty period for the 0850L-14A-NI-ST-NF laser diode module?
The 0850L-14A-NI-ST-NF laser diode module comes with a 12-month warranty.
Is the 0850L-14A-NI-ST-NF laser diode module RoHS compliant?
Yes, the 0850L-14A-NI-ST-NF laser diode module is RoHS compliant.
