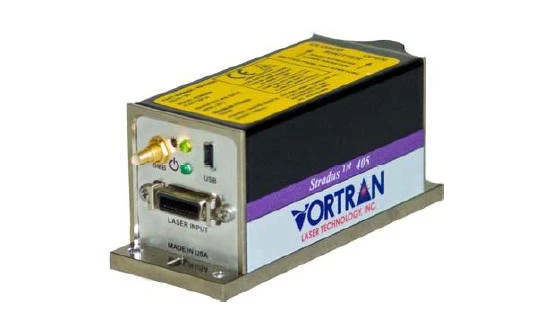

Stradus® 405‐100 Diode Laser Module

Visit the Vortran Laser Technology Store

Specifications

Center Wavelength: 0.405 um
Output Power: 100 mW
Spatial Mode: TEM 00
Small Beam: ~1.0 mm, ~0.6 mrad
Standard Beam: ~1.4 mm, ~0.5 mrad
M² (typical): < 1.25
Pointing Stability: < 5 µrad/⁰C
Power Stability (over 24 Hours): < 0.5%
Polarization Orientation: Vertical ±2⁰
Polarization Extinction Ratio: >100:1
Input Power (Head): 12V DC, 1.5A (max)
Input Power (Control Box): 90‐250 VAC, 50/60Hz
Storage Temperature: -10⁰C to +60⁰C
Operating Temperature: +10⁰C to +45⁰C
Laser Head Weight: 210g
Communication: Mini‐USB and RS‐232
CDRH Class: Class IIIb
ESD Protection: Class 4
EU Compliance: CE Mark Certified with control box
RoHS Compliance: EU and China
Document icon Download Data Sheet Download icon

Features


  • Wavelength: 405 ± 5 nm

  • Power Output: 100 mW (‐0%, +10%)

  • Spatial Mode: TEM 00

  • Beam Size: Small Beam ~1.0 mm, ~0.6 mrad; Standard Beam ~1.4 mm, ~0.5 mrad

  • M² (typical): < 1.25

  • Beam Circularity: > 90%

  • Beam Centration: < 0.5 mm

  • Beam Alignment: < 5 mrad

  • Pointing Stability: < 5 µrad/°C

  • Power Stability (over 24 hours): < 0.5%

  • Polarization Orientation: Vertical ±2°

  • Polarization Extinction Ratio: > 100:1

Applications


  • Medical, Biomedical & Industrial Applications: The Stradus® diode laser module is ideal for medical, biomedical, and industrial uses due to its precision and reliability.

  • Patented Sealed Optical Cavity: Ensures unparalleled power stability and beam pointing stability, making it suitable for high-precision applications.

  • Self-contained & Compact Design: Offers ease of integration into various systems with minimal space requirements.

  • Excellent Beam Quality: Provides a high-quality beam with low noise, essential for sensitive applications.

  • Low Noise Operation: Delivers stable performance with minimal interference, ideal for environments where noise must be minimized.

  • USB or RS-232 Interface with GUI: Allows for remote control and monitoring via Vortran’s Graphical User Interface software, enhancing user convenience and flexibility.

  • Analog & Digital Modulation: Supports both analog and digital modulation, offering versatility for different operational needs.

  • OEM Head or End-user Systems: Available for original equipment manufacturers or as a complete system for end-users, providing tailored solutions for various applications.
