High Power SMF Coupled Laser Module with Fiber Bragg Gratings
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
OSI Laser Diode, Inc. presents its high-power SMF coupled laser modules, meticulously engineered to address the rigorous performance requirements of the optical test equipment sector. These advanced laser modules, part of the SCW series, are distinguished by their integration of Fiber Bragg Gratings, which enhance their operational capabilities. The lasers are fully hermetically packaged, ensuring robust protection and longevity. This thoughtful design includes both a Thermoelectric Cooler (TEC) and a temperature-sensing thermistor, which together deliver exceptional wavelength stability across a broad temperature spectrum.
These laser modules are classified as a Class 1 RoHS compliant product, underscoring their adherence to stringent environmental and safety standards. This compliance not only reflects the product's high quality but also its suitability for global markets that prioritize eco-friendly and safe technology solutions. The SCW series lasers are designed to deliver high peak optical power, making them ideal for demanding applications where precision and reliability are paramount.
With a meticulous focus on temperature management, the inclusion of TEC ensures that the laser maintains optimal performance even in challenging environmental conditions. This feature is crucial for maintaining the integrity of the laser's output and ensuring consistent performance over time. The robust construction and thoughtful engineering of these laser modules make them a preferred choice for professionals in the optical testing industry who demand reliability and precision in their equipment.
High Power SMF Coupled Laser Module with Fiber Bragg Gratings
Specifications |
|
|---|---|
| Center Wavelength: | 1.625 um |
| Output Power: | 30 mW |
| Spectral Width: | 0.5 nm |
| Forward Current: | 600 mA |
| Threshold Current: | 45 mA |
| Operating Temperature: | °C |
Features
- High Power SMF Coupled Laser Modules: Designed to meet the performance demands of the optical test equipment marketplace with integrated Fiber Bragg Gratings
- Hermetic Packaging: Fully hermetic packaging ensures durability and reliability
- Superior Wavelength Stability: Includes TEC and temperature sensing thermistor for stable performance over a wide temperature range
- Peak Wavelength: 1625 nm at 25°C ± 10°C for optimal performance
- Spectral Width: Narrow spectral width of 0.5 nm for precise applications
- Optical Power, Pulsed: Delivers 30 mW of optical power
- Forward Current: Operates efficiently with a forward current of 600 mA
- Threshold Current: Low threshold current of 45 mA for energy efficiency
- Forward Voltage: Operates at a forward voltage of 2 V
- TEC Cooling Capacity: Provides cooling capacity up to 45°C for enhanced stability
- Operating Temperature Range: Functions effectively between -30°C to +70°C
- Storage Temperature Range: Safe storage between -40°C to +85°C
- RoHS Compliant: Class 1 laser product adhering to environmental standards

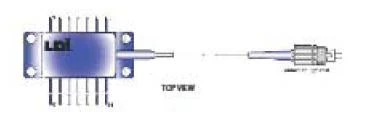

- Available Packages: Offered in 14-Pin Butterfly and 14-Pin DIP packages for versatile application
Applications
- Optical Time-Domain Reflectometry (OTDR): Enables long-distance fault detection and fiber characterization
- Photon Counting Systems: Offers high stability and precision for sensitive optical measurements
- Wavelength-Specific Optical Sensing: Ideal for FBG sensor interrogation systems
- Laser-Based Test Equipment: Reliable source for high-resolution spectral analysis tools
- LOS and Optical Sensors: Supports various line-of-sight and embedded optical sensor applications
Frequently Asked Questions
The SCW Series Instrument Laser Fiber Bragg Grating is designed for use in optical test equipment.
The peak wavelength of the SCW Series Instrument Laser Fiber Bragg Grating is 1625 nm with a spectral width of 0.5 nm.
The SCW Series Instrument Laser Fiber Bragg Grating comes in either a 14 Pin Butterfly or DIP packaging.
Yes, the SCW Series Instrument Laser Fiber Bragg Grating is a Class 1 RoHS compliant laser product.
The SCW Series Instrument Laser Fiber Bragg Grating has an operating temperature range of -30 to +70 °C and a storage temperature range of -40 to +85 °C.
