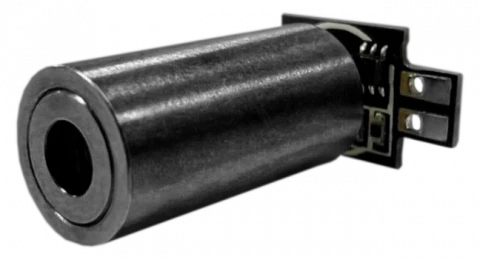

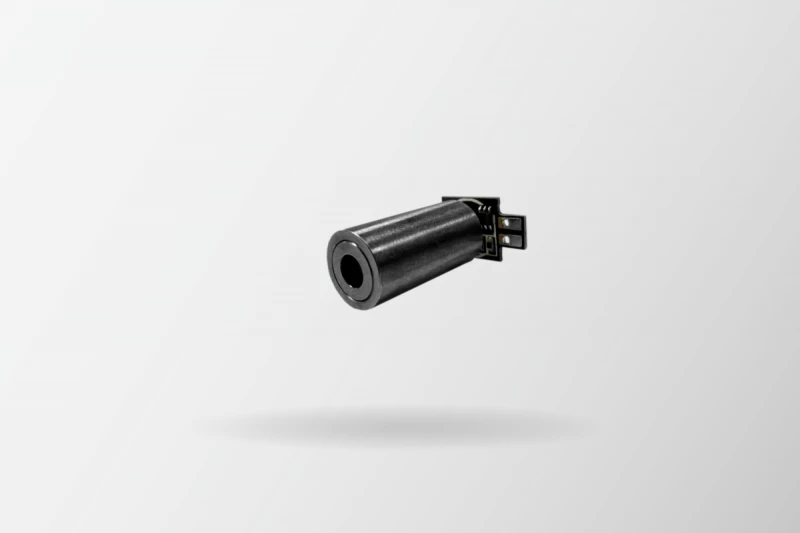

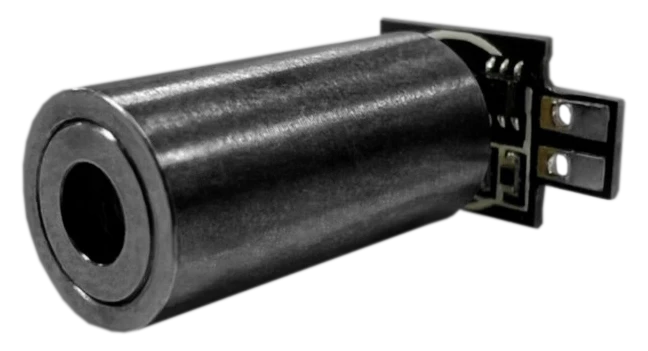

M6 | EEL Laser Module (658nm | 3~4mW)
Description
The EEL series from Dishen Electronics introduces a state-of-the-art diode laser module with a diameter of just 6mm. Standing out as the most compact in our standard public version modules, this semiconductor laser uniquely combines precision and miniaturization.
Primarily designed for applications like signal processing, sensing, instrumentation, and sweeping robots, this 658nm diode laser module is also pivotal in automation and process control, testing, and measurement. Given its unparalleled efficiency, it's swiftly becoming an essential tool in the modern automation industry.
M6 | EEL Laser Module (658nm | 3~4mW)
Specifications |
|
|---|---|
| Center Wavelength: | 0.658 um |
| Output Power: | 3~4 mW |
| CW Optical Power: | 3 mW |
| Operating Current: | 45 mA |
| Operating Voltage: | 3.3 V |
| Wavelength At Peak Emission: | 658 nm |
| Operating Temp. Range: | -40 to 85 °C |
| Storage Temp. Range: | -40 to 90 °C |
| Spot Size At 10mm: | <0.6 mm |
| Driving Circuit: | APC |
| Lens Material: | Glass Lens |
Features
- Optimized for Portability: Designed with a sleek form factor making it perfect for portable devices and on-the-go applications.
- High Optical Energy Density: Ensures more accurate measurements, improving the precision and reliability of readings.
- Ultra-Fine Beam Size: With a beam size of less than 1mm, it guarantees pinpoint accuracy for focused operations.
- Consistent Performance: Features a narrow range of PTP variation, ensuring stable and reliable outputs during operation.
Applications
- Biotech Solutions: Enables advanced biological research and medical diagnostics.
- Precision Sensors: Essential for accurate data collection and environmental monitoring.
- PM2.5 Detection: Critical for monitoring air quality and ensuring health safety.
- Efficient Barcode Scanning: Ensures quick, accurate reads for streamlined operations.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Taiwan
-
Sold by:
-
On FindLight:
since 2023
Frequently Asked Questions
The diameter of the EEL M6 series is 6mm, making it the smallest of the standard public version modules in the Dishen Electronics EEL series.
The EEL M6 is used in signal processing, sensing and instrumentation, automation and process control, sweeping robots, testing, and measurement. It's especially indispensable in the automation industry.
The EEL M6 is suitable for portable products, offers high optical energy density for more accurate measurements, has a beam size of less than 1mm, and a narrow range of PTP variation.
The EEL M6 operates between 3-4mW with a peak emission wavelength of 658nm.
Yes, the laser diode is sensitive to Electrostatic Discharge (ESD) and surge. Measures should be taken to ground the device, wear anti-static clothing, and use ESD-protected storage. Direct eye exposure to the laser beam, even through lenses or optical fibers, can damage the eyes. It's advised to use safety goggles.
The recommended soldering temperature is less than 180°C, applied within 3 seconds, and only on the leads.
The EEL M6 features an APC (Automatic Power Control) driving circuit to regulate the optical power output.
