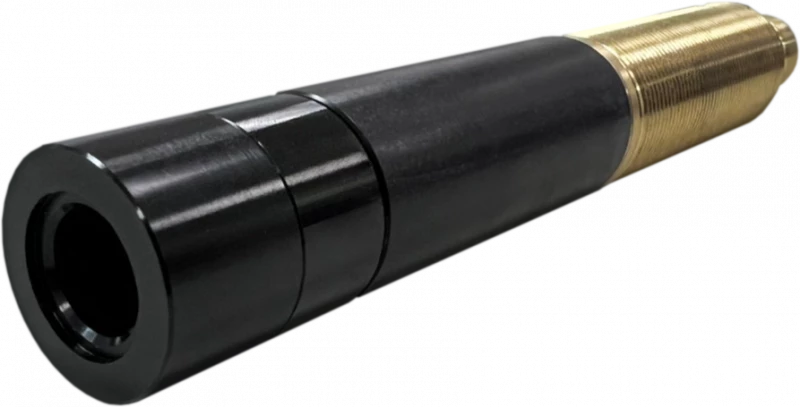

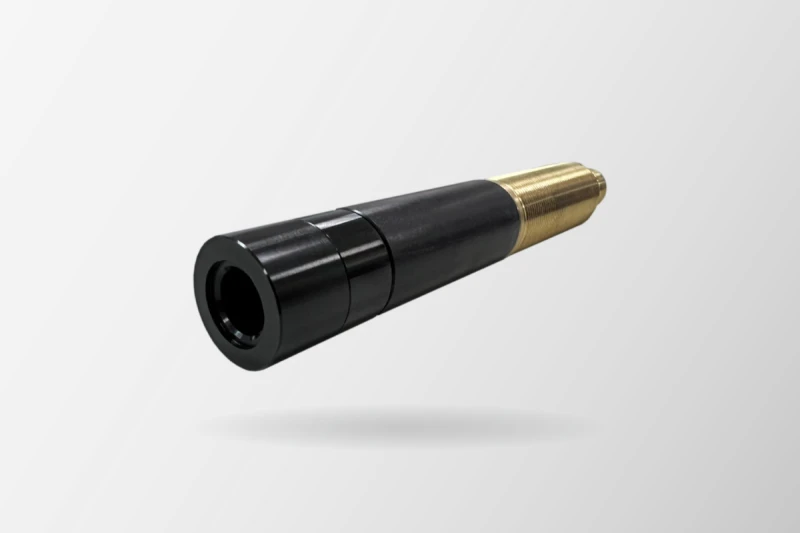

M18 660 nm 100 mW EEL Laser Module – Adjustable Focus, Stable Output

Description

M18, model AP66A00001, is an advanced laser module designed for precision and reliability. Operating at a wavelength of 660nm with a power output of up to 100mW, this module is engineered to deliver exceptional performance for a variety of applications. Its design incorporates APC and TEC temperature control feedback circuits, allowing users to adjust the focal length, power, wavelength, and temperature seamlessly through software settings. This flexibility enhances measurement accuracy, stabilizes optical output power and wavelength, and supports both CW and TTL operation modes.

One of the standout features of the M18 is its ability to be controlled remotely via computer, offering the convenience of infinite depth of field adjustments. The APC drive circuit ensures that the optical output power remains safe and stable, while the TEC active cooling system maintains a constant temperature, promoting long-term reliability and performance stability. These features make it an ideal choice for demanding environments where precision and stability are paramount.

Designed with user safety and device longevity in mind, the module comes with detailed cautions and handling instructions. It is crucial to adhere to the absolute maximum ratings to prevent damage from over-driving the laser. Protective measures against surge current and electrostatic discharge (ESD) are recommended, including grounding devices and wearing anti-static clothing. Additionally, proper soldering techniques must be followed to prevent mechanical stress and overheating, ensuring the module's durability and performance.

Overall, this diode laser module is a sophisticated piece of technology that combines advanced features with robust safety protocols. It is an excellent choice for applications requiring high precision and stability, such as 3D scanning and advanced vision inspection. With its comprehensive design and engineering, it stands as a reliable solution for professionals in the field.

NOTE: There is a fee of $95 for the shipment of 1 or 2 units to the USA.

Specifications

Center Wavelength:	0.66 um
Output Power:	100 mW
CW Optical Power:	100 mW
Operating Voltage:	6-24 V
Wavelength At Peak Emission:	660 nm
Operating Temp. Range:	-10 to 70 °C
Storage Temp. Range:	-40 to 85 °C
Line Size At 80mm (beam Profile Test FWHM 50%):	30 um
Line Size At 120mm (beam Profile Test FWHM 50%):	30 um
Driving Circuit:	APC

Download Data Sheet

Features

Customization through Software: The module allows arbitrary adjustments to focal length, power, wavelength, and temperature through software settings.

Measurement and Stability: The product is designed to enhance measurement accuracy and stabilize optical output in terms of power and wavelength.
Mode of Operation: It can operate in continuous wave (CW) or Transistor-Transistor Logic (TTL) modes.

Remote Control: The laser module can be controlled remotely through a computer.
Depth of Field: It offers infinite depth of field.

Safety and Stability: It uses an APC (Automatic Power Control) drive circuit for a stable optical output and has a TEC (Thermoelectric Cooling) system to maintain the temperature of the module.

Applications

3D Scanning: Perfect for capturing detailed three-dimensional representations of objects and environments, the module ensures precision and clarity in every scan.

Advanced Vision Inspection: Ideal for industries demanding meticulous visual analysis, this module aids in detecting even the most minute anomalies and ensures quality control at its finest.

Add to Watchlist (My Watchlist)

Ships from:

Taiwan

Sold by:

LECC Technology Co., Ltd.

On FindLight:

since 2023

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Laser Module M18 AP66A00001 best used for?

The Laser Module M18 AP66A00001 is best used for 3D scanning and advanced vision inspection, ensuring high precision and clarity.

How does the APC drive circuit benefit the Laser Module M18 AP66A00001?

The APC (Automatic Power Control) drive circuit ensures a stable and safe optical output, enhancing the module's reliability and performance.

Can you adjust the settings of the Laser Module M18 AP66A00001?

Absolutely! The Laser Module M18 AP66A00001 allows users to adjust the focal length, power, wavelength, and temperature through software settings, offering unparalleled flexibility.

Is the Laser Module M18 AP66A00001 safe for the eyes?

While the module is designed with safety in mind, it's crucial not to look directly into the laser beam. For observing the laser beams, wearing safety goggles is recommended.
