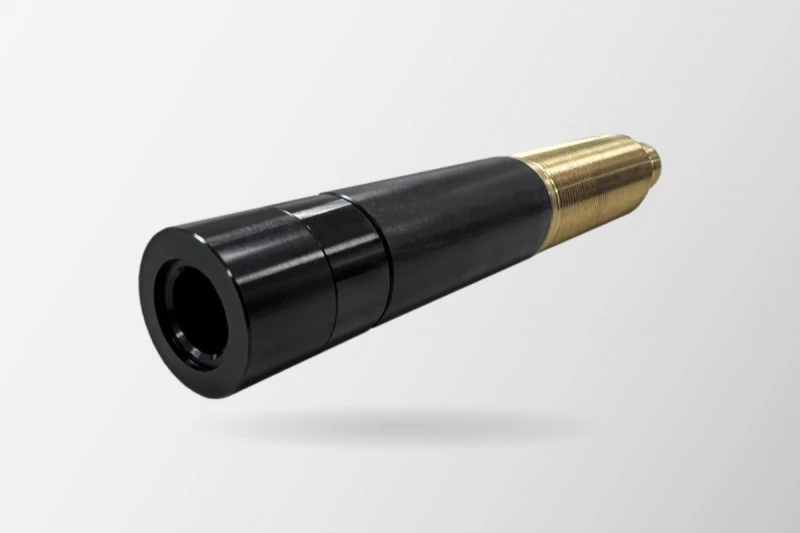

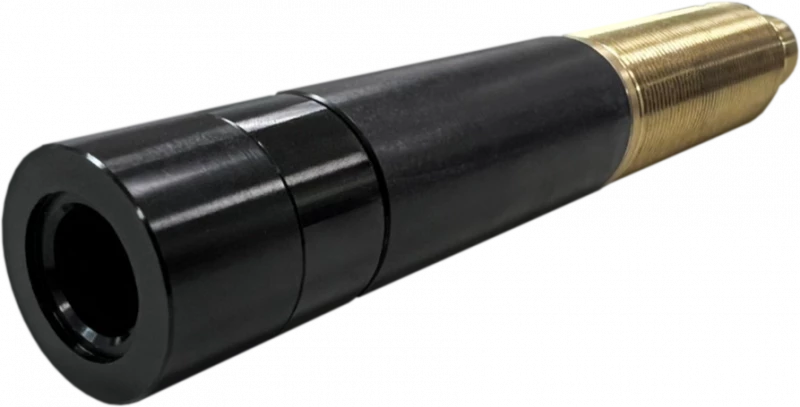

M18 EEL 450nm Diode Laser Module 0 to 70mW

Description

Laser Module M18 AP45600001 offers unparalleled flexibility and precision, supported by APC and TEC temperature control feedback circuits. With this module, users can effortlessly adjust the focal length, power, wavelength, and temperature through intuitive software settings, ensuring precise application for varied requirements.

Beyond customization, the module takes measurement precision to the next level. It promises consistent stability in optical output, both in terms of power and wavelength. Depending on the task at hand, users can choose between continuous wave (CW) or Transistor-Transistor Logic (TTL) operation modes. This versatility, combined with the potential for remote computer control and an infinite depth of field, makes the module an optimal choice for industries requiring advanced vision inspection and 3D scanning.

The built-in APC drive circuit and TEC active cooling system guarantee that the optical output remains not only powerful but also safe and stable. This is a laser module designed for the future, catering to both precision and adaptability.

Specifications

Center Wavelength:	0.45 um
Output Power:	70 mW
Wavelength At Peak Emission:	440 - 460 nm
Operating Voltage:	6 V
Operating Temp. Range:	-10 to 70 °C
Storage Temp. Range:	-40 to 85 °C
Line Size At 80mm (beam Profile Test FWHM 50%):	30 um
Line Size At 120mm (beam Profile Test FWHM 50%):	30 um
Driving Circuit:	APC
Lens Material:	Glass Lens
Manufacturer Part Number (MPN):
FindLight SKU:

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Customization through Software: The module allows arbitrary adjustments to focal length, power, wavelength, and temperature through software settings.
Measurement and Stability: The product is designed to enhance measurement accuracy and stabilize optical output in terms of power and wavelength.
Mode of Operation: It can operate in continuous wave (CW) or Transistor-Transistor Logic (TTL) modes.
Remote Control: The laser module can be controlled remotely through a computer.
Depth of Field: It offers infinite depth of field.
Safety and Stability: It uses an APC (Automatic Power Control) drive circuit for a stable optical output and has a TEC (Thermoelectric Cooling) system to maintain the temperature of the module.

Applications

3D Scanning: Perfect for capturing detailed three-dimensional representations of objects and environments, the module ensures precision and clarity in every scan.
Advanced Vision Inspection: Ideal for industries demanding meticulous visual analysis, this module aids in detecting even the most minute anomalies and ensures quality control at its finest.

Request Quote

To: LECC Technology Co., Ltd.
Re: M18 EEL 450nm Diode Laser Module 0 to 70mW

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: Taiwan
Sold by:: LECC Technology Co., Ltd. ✓ Verified Supplier
On FindLight:: since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is this Laser Module M18 AP45600001 best used for?

The Laser Module M18 AP45600001 is best used for 3D scanning and advanced vision inspection, ensuring high precision and clarity.

How does the APC drive circuit benefit the diode Laser Module M18 AP45600001?

The APC (Automatic Power Control) drive circuit ensures a stable and safe optical output, enhancing the module's reliability and performance.

Can you adjust the settings of the diode Laser Module M18 AP45600001?

Absolutely! The Laser Module M18 AP45600001 allows users to adjust the focal length, power, wavelength, and temperature through software settings, offering unparalleled flexibility.

Is the Laser Module M18 AP45600001 safe for the eyes?

While the module is designed with safety in mind, it's crucial not to look directly into the laser beam. For observing the laser beams, wearing safety goggles is recommended.

How does the TEC system enhance the Laser Module M18 AP45600001's performance?

The TEC (Thermoelectric Cooling) system ensures the module remains at a constant temperature, preventing overheating and maintaining consistent performance.
