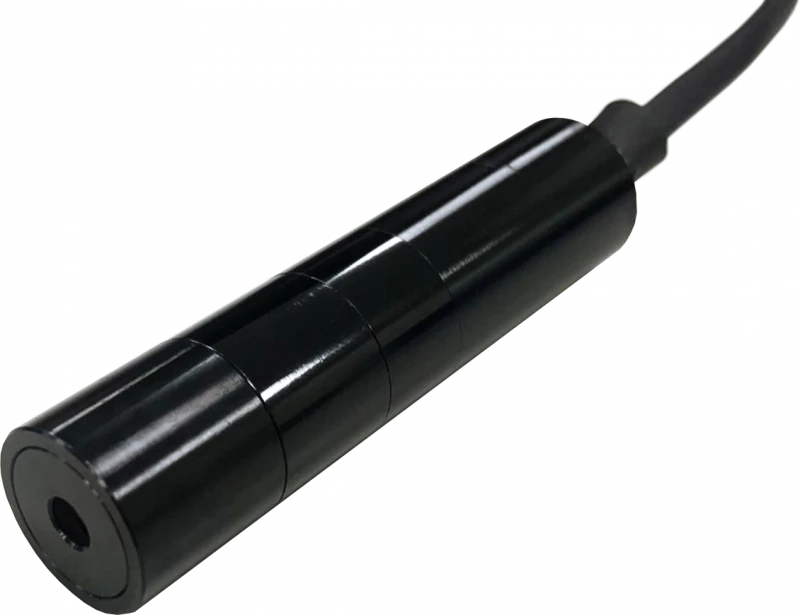

Thumbnail of M15 EEL 661 nm Laser Module – 50-80 mW Visible Red Diode with APC & Adjustable Focus photo 1

Description

The M15 EEL 661 nm Laser Module (50-80 mW) is a high-precision, visible-red semiconductor laser designed for demanding industrial, measurement and alignment applications. Equipped with a built-in Automatic Power Control (APC) circuit, this module ensures stable output power over extended operation — delivering consistent performance even in changing environmental conditions.

An adjustable focus mechanism provides fine control of beam geometry and divergence, allowing operators to tailor the spot size or line shape based on site conditions or system layout. When paired with optional beam-shaping lenses (such as DOE or Powell optics), the module supports a wide range of tailored graphics: parallel lines, cross-lines, dotted arrays or custom patterns.

Flexibility extends to both continuous wave (CW) and pulse wave (PW) operation modes, giving engineers a choice between steady beam for alignment or modulated output for scanning, inspection or metrology tasks. With its robust construction and high output power in the red spectrum, it becomes an ideal choice wherever visible-red light is required for high-precision optical instrumentation.

Whether you’re working in automated inspection, optical alignment, sensor calibration or research prototypes, the M15 EEL 661 nm Laser Module offers the stability, adaptability and optical quality required by professional systems.

M15 EEL 661 nm Laser Module – 50-80 mW Visible Red Diode with APC & Adjustable Focus

Visit the LECC Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.661 um
Output Power: 50 mW
Wavelength At Peak Emission: 656 - 665 nm
Operating Voltage: 12 V
Line Size At 100mm (beam Profile Test FWHM 50%): 40 um
Line Size At 400mm (beam Profile Test FWHM 50%): 120 um
Driving Circuit: APC
Operating Current: 45-100 mA
Operating Temp. Range: -10 to 70 °C
Storage Temp. Range: -40 to 85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Center Wavelength: 661 nm (visible red)
  • Output Power Range: 50–80 mW (typical)
  • Built-in APC (Automatic Power Control) circuitry — ensures stable optical output over time & temperature
  • Adjustable focus assembly — enables tuning of divergence/spot size for precise delivery
  • Supports CW & PW modes — excellent for continuous alignment and pulsed scanning/inspection
  • Compatible with optional optical lenses (DOE, Powell) for custom beam patterns: lines, crosses, arrays, graphics
  • Rugged module housing for industrial usage; optimized for measurement, alignment and instrumentation environments
  • Ideal for visible-red applications requiring high output and pattern versatility

Applications

Industrial Inspection & Metrology

  • Precision alignment and targeting in machine vision systems
  • Automated Optical Inspection (AOI) for electronics, PCB, micro-assembly
  • Edge/feature detection in manufacturing lines using red-light source

Optical Alignment & Calibration

  • Visible reference beams for optical bench, fiber-optic coupling or free-space setups
  • Calibration of sensors and imaging systems with stable red laser reference
  • Beam-shaping with DOE/Powell lenses for line/projector applications

Research & Prototyping

  • Laboratory instrumentation using 661 nm for fluorescence excitation, Raman scattering or optogenetics reference
  • Custom beam pattern generation for novel imaging, sensing or materials-characterization devices
  • Pulsed red diode operation in time-resolved optical systems

Display, Graphics & Projection

  • Generating visible red line or array patterns (via DOE) for motion tracking, gesture recognition or interactive systems
  • Projection of cross-lines or grid overlays in alignment or calibration tools

Educational & Demo Systems

  • Teaching modules illustrating beam shaping, laser stability and optics in academic/engineering labs
  • Demonstration of visible-red laser modules for coursework, prototyping or hands-on optics labs

Frequently Asked Questions

What is the EEL M15 FD6F06681A?
The EEL M15 FD6F06681A is a laser module with a wavelength of 661nm and an optical power output ranging from 50 to 80mW. It features an APC circuit for stable light output and adjustable focus.
What are the key features of the EEL M15?
The EEL M15 includes an APC control board, stable power output, and the ability to customize different patterns and wavelengths. It is suitable for advanced module applications.
What applications is the EEL M15 suitable for?
The EEL M15 is suitable for AOI visual inspection and precise positioning in medical applications.
What are the operating conditions for the EEL M15?
The EEL M15 operates at a voltage of 12 to 24V, a current of 45 to 100mA, and within a temperature range of -10 to 70°C.
What precautions should be taken when using the EEL M15?
Precautions include avoiding exceeding absolute maximum ratings, preventing surge current and ESD, using anti-static measures, and ensuring proper soldering techniques.
How can the EEL M15 be customized?
The EEL M15 can be used with various optical lenses like DOE and Powell Lens to change graphics such as random numbers, parallel lines, and cross lines. Different patterns and wavelengths can also be customized.
What safety measures should be observed when operating the EEL M15?
Eye safety is crucial. Direct exposure to the laser beam can cause severe eye damage. Use safety goggles when observing laser beams.

Got more questions? Use the inquiry form to ask the supplier directly.
