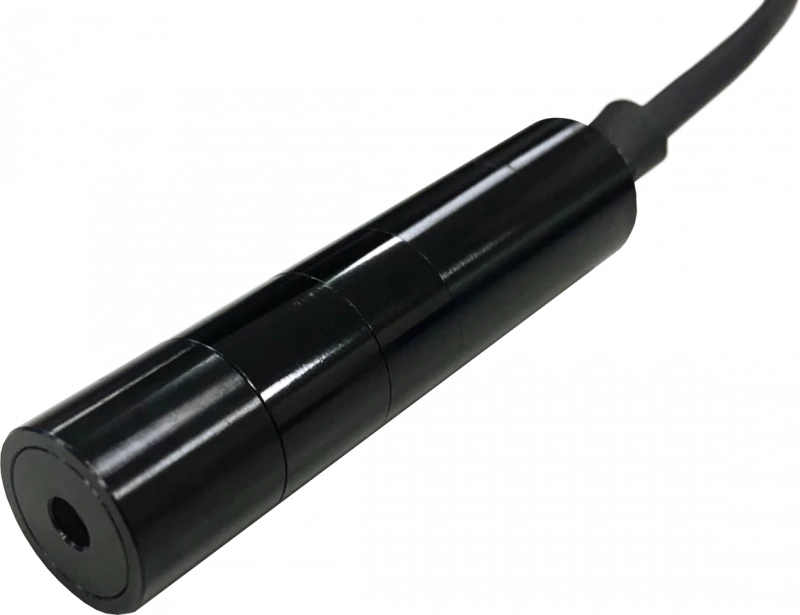

Thumbnail of M15 EEL Adjustable Focus Laser 450nm 40-80mW - FD6F04581A photo 1

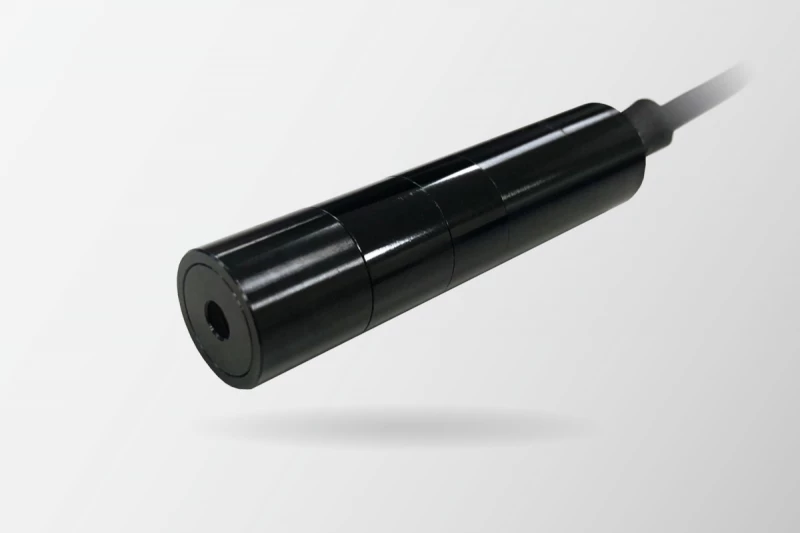

Thumbnail of M15 EEL Adjustable Focus Laser 450nm 40-80mW - FD6F04581A photo 2

Description

M15 EEL Adjustable Focus Laser 450nm 40-80mW is a state-of-the-art laser device designed for precision and versatility. It incorporates an APC circuit that ensures unwavering light output power, setting it apart as a premium adjustable focus module. Depending on the unique demands of your site conditions, this module offers unparalleled focusing capabilities, ensuring an evenly distributed energy output, making it indispensable for advanced measurement tasks.

Renowned for its outstanding stability, the M15 EEL Laser Module is engineered to deliver results with minimal error margins. One of its standout features is its compatibility with a variety of optical lenses, including DOE and Powell Lens. This adaptability allows users to modify graphics effortlessly, whether you need random numbers, precise parallel lines, cross lines, or more. Furthermore, whether your applications require Continuous Wave (CW) or Pulse Wave (PW) operations, this module stands ready to deliver.

For professionals seeking accuracy and flexibility, the M15 EEL Adjustable Focus Laser 450nm 40-80mW is the ultimate choice.

M15 EEL Adjustable Focus Laser 450nm 40-80mW - FD6F04581A

Visit the LECC Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.45 um
Output Power: 40 mW
Output Power Range: 40 - 80 mW
Wavelength At Peak Emission: 440 - 460 nm
Operating Voltage: 12 V
Line Size At 100mm (beam Profile Test FWHM 50%): 40 um
Line Size At 400mm (beam Profile Test FWHM 50%): 100 um
Driving Circuit: APC
Lens Material: Plastic Lens
Operating Current: 50 mA
Operating Temp. Range: -10 to 70 °C
Storage Temp. Range: -40 to 85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • APC Control Board: Ensures consistent light output power.
  • Adjustable Focus: Can be focused according to site conditions, ensuring uniform energy distribution.
  • High Stability: Characterized by stable performance and a minimal error rate.
  • Pattern Versatility: Compatible with various optical lenses like DOE and Powell Lens to produce different graphics such as random numbers, cross lines, parallel lines, etc.
  • Operating Modes: Capable of operating in CW or PW modes.
  • Customizable: Offers variations in patterns and wavelengths based on user requirements.

Applications

  • Automated Inspection: Suitable for AOI visual inspection processes.
  • Medical Precision: Used in precise positioning applications for medical purposes.

Frequently Asked Questions

What's the primary purpose of the APC Control Board?
It ensures a stable and consistent light output power.
How can the focus of the module be adjusted?
The module offers adjustable focus, allowing it to be fine-tuned based on site conditions for uniform energy distribution.
Can the module produce different graphical patterns?
Yes, with the help of optical lenses such as the DOE and Powell Lens, it can generate random numbers, cross lines, parallel lines, etc.
What is the operating mode of this laser?
It can operate in both CW (Continuous Wave) or PW (Pulse Wave) modes.
What is the peak emission wavelength of EEL M15 blue laser module?
The typical emission wavelength is 450nm, with a range from 440nm to 460nm.
Is there any specific safety gear recommended while using this module?
Yes, it's imperative to wear safety goggles when observing or working with the laser to prevent eye damage.
What type of lens material does this adjustable focus laser module use?
The EEL M15 uses a plastic lens.
What precautions should be taken during soldering?
The temperature of the die-pad portion should remain below 160°C, and an iron temperature less than 180°C should be used for no more than 3 seconds.
For what medical applications is this module useful?
The EEL M15 blue laser is valuable for precise positioning tasks within the medical domain.
Can the module's patterns and wavelengths be tailored to my needs?
Yes, the product offers customizable patterns and wavelengths based on specific user requirements.

Got more questions? Use the inquiry form to ask the supplier directly.
